ETI POLAM

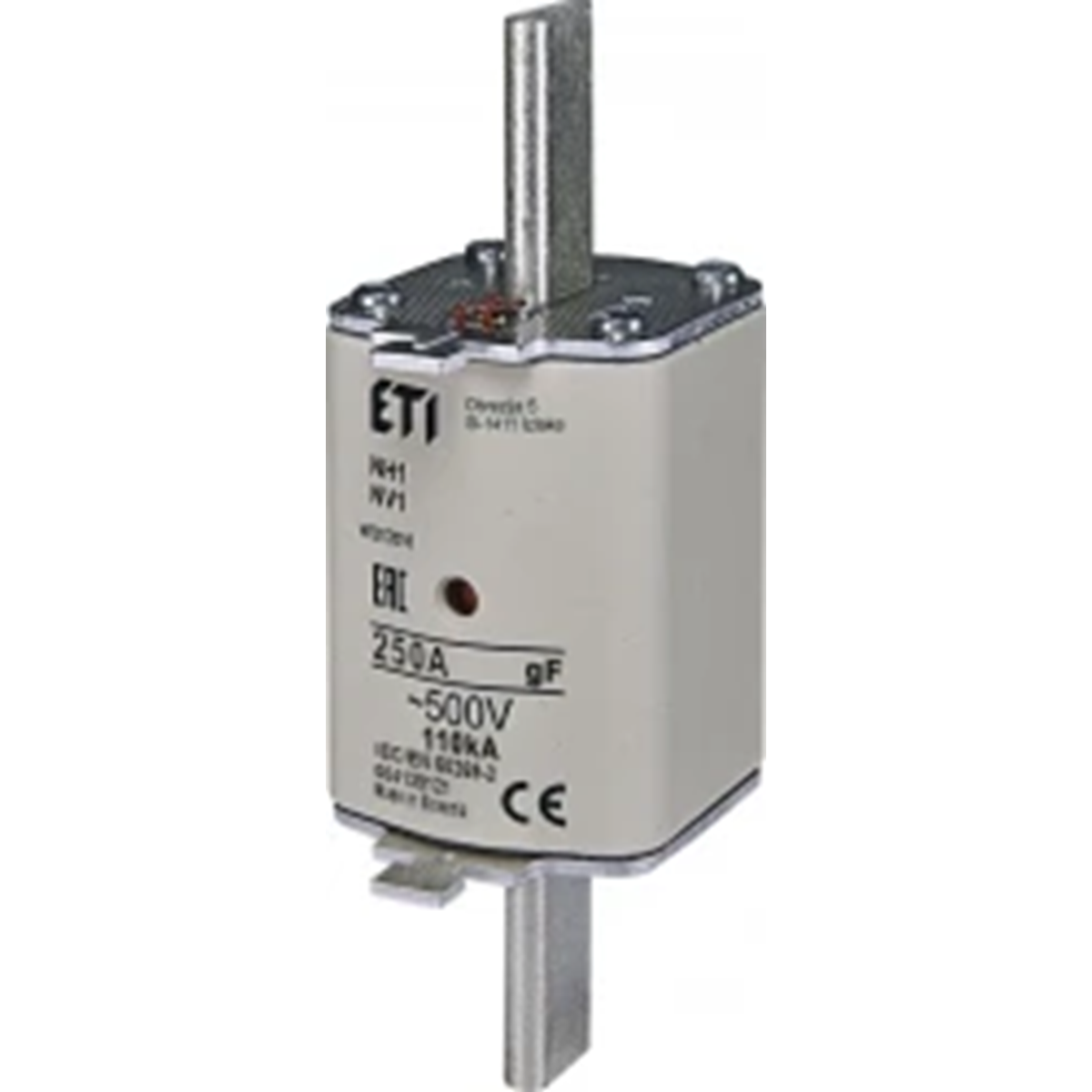

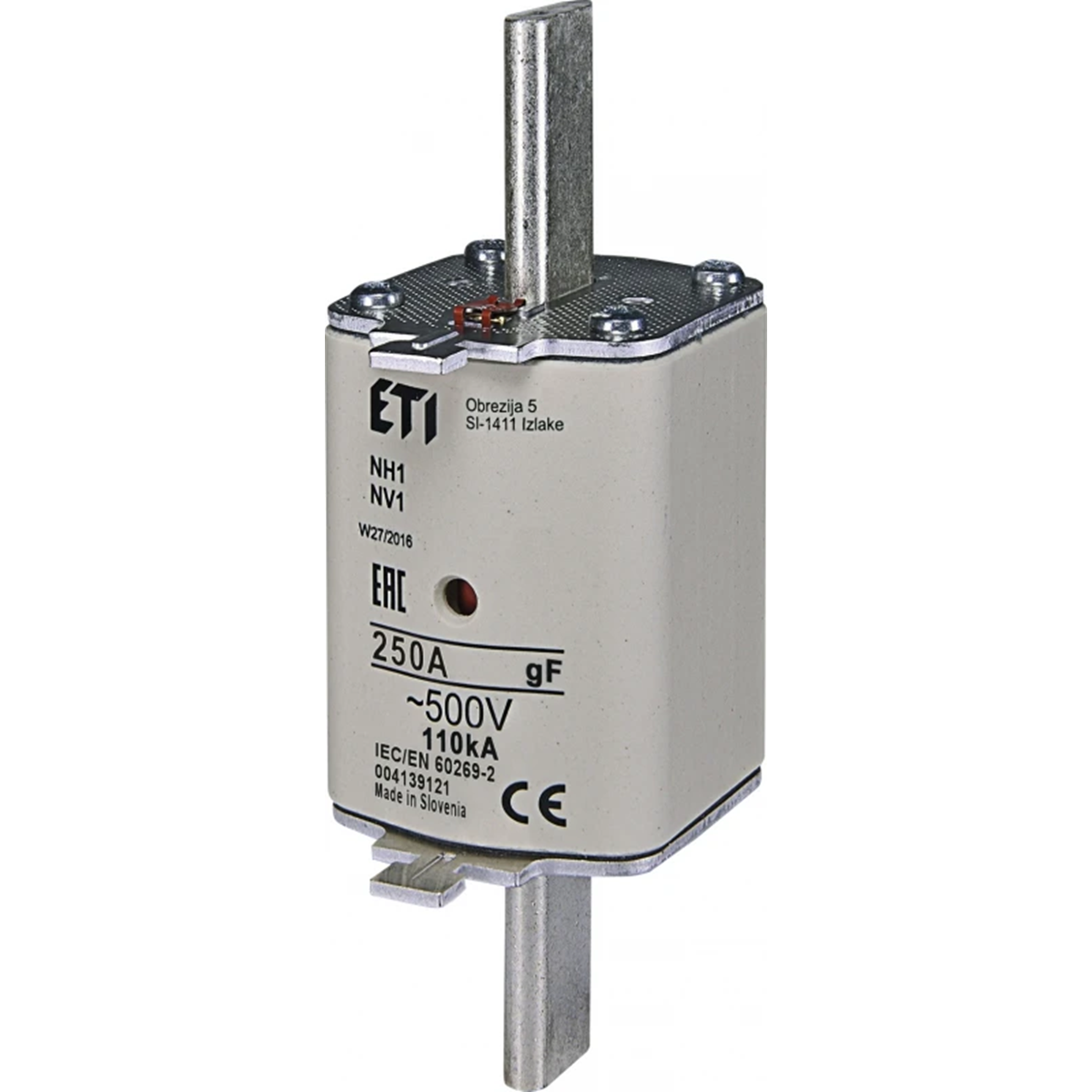

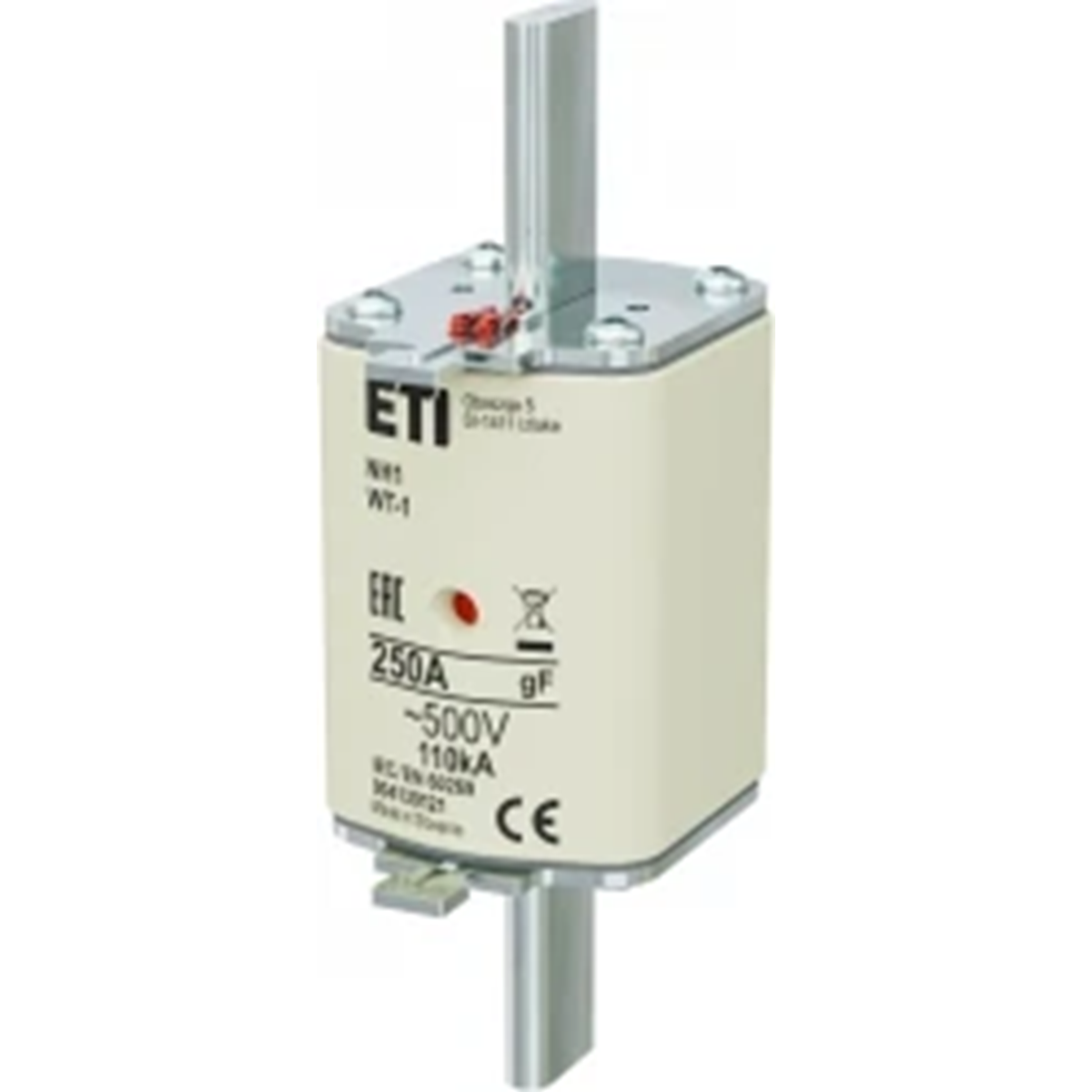

Industrial fast fuse link WT-1/gF 250A 004139121

local index:
ABM284ETIP
Catalog No:
004139121
EAN code:
5904722992153
Price:
10,76 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,47 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

The body of the fuse link is made of full-fledged steatite, which is very resistant to thermal loads. Covers made of aluminum are permanently resistant to corrosion. In the inner part of the ceramic body there is a copper fusing element, which is attached to a specially prepared inner part of the knife contact. In addition, the interior of the ceramic body is filled with quartz sand of carefully selected granulation. Knife contacts are made of both copper and brass, and are protected by a layer of silver. The novelties include fuse links with a trip indicator in the frontal part of its body, as well as insulated hooks for inserting and removing fuse-links from the base, and a fuse-link with a striker.

Technical data

  • Rated voltage [V]
    500
  • Weight [g]
    425
  • Rated current [A]
    250
  • Rated short-circuit capacity [kA]
    115, 120

Other technical data

  • Voltage type
    AC
  • Rated switching capacity
    110 kA
  • Type of fuse status indicator
    Top fuse status indicator
  • Rated current
    250 A
  • Utilization category
    Other
