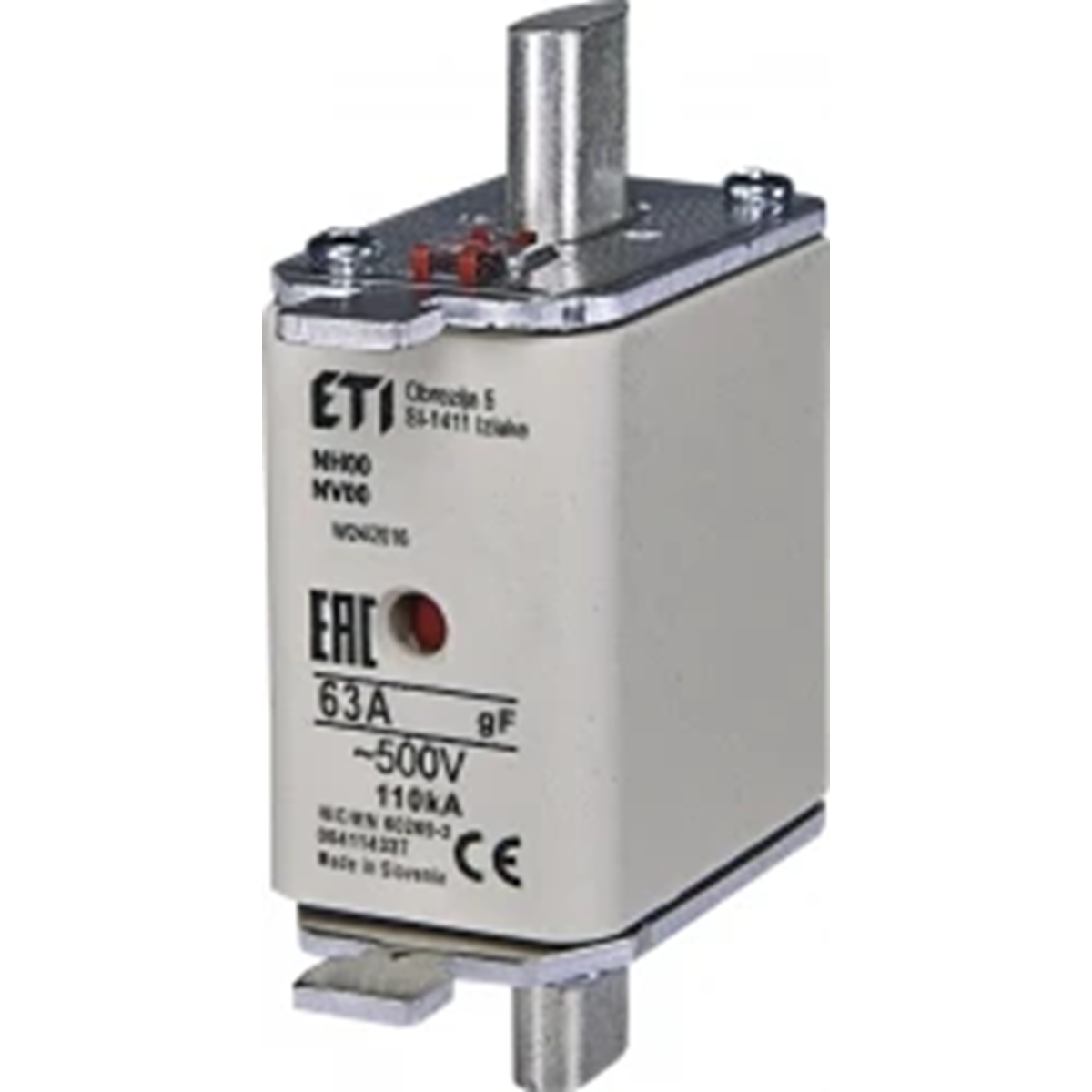

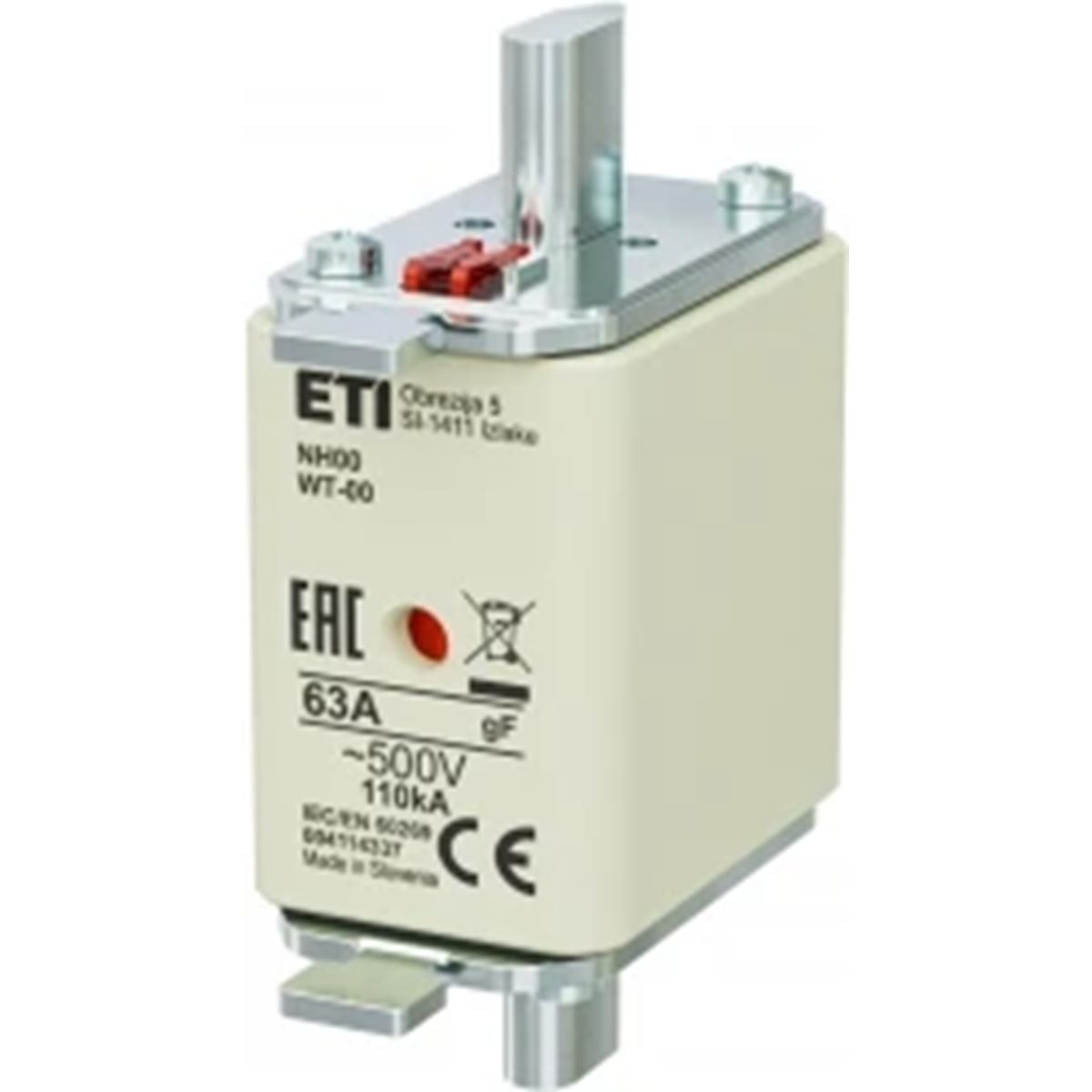

Industrial fast fuse link WT-00/gF 63A 004114337

local index:
ABM085ETIP
Catalog No:
004114337
EAN code:
5904722991439
Manufacturer: ETI POLAM
Rated voltage [V]: 500
Rated current [A]: 63
Weight [g]: 198
Price:
7,95 €
gross / pcs.
(including VAT 23%)
40,15 € gross/kg.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The body of the fuse link is made of full-fledged steatite, which is very resistant to thermal loads. Covers made of aluminum are permanently resistant to corrosion. In the inner part of the ceramic body there is a copper fusing element, which is attached to a specially prepared inner part of the knife contact. In addition, the interior of the ceramic body is filled with quartz sand of carefully selected granulation. Knife contacts are made of both copper and brass, and are protected by a layer of silver. The novelties include fuse links with a trip indicator in the frontal part of its body, as well as insulated hooks for inserting and removing fuse-links from the base, and a fuse-link with a striker.

Technical data

  • Rated voltage [V]
    500
  • Weight [g]
    198
  • PKWIU
    27.12.21.0
  • Rated current [A]
    63
  • Rated short-circuit capacity [kA]
    115, 120

Other technical data

  • Voltage type
    AC
  • Rated switching capacity
    110 kA
  • Type of fuse status indicator
    Top fuse status indicator
  • Rated current
    63 A
  • Utilization category
    Other

Bulk packaging

A kind of package Pudełko Pudełko
Quantity 3 pcs. 90 pcs.
Weight (kg) 2,040 -
Volume (m3) 0,002 -
Width (m) 0,164 -
Length (m) 0,180 -
Depth (m) 0,065 -
