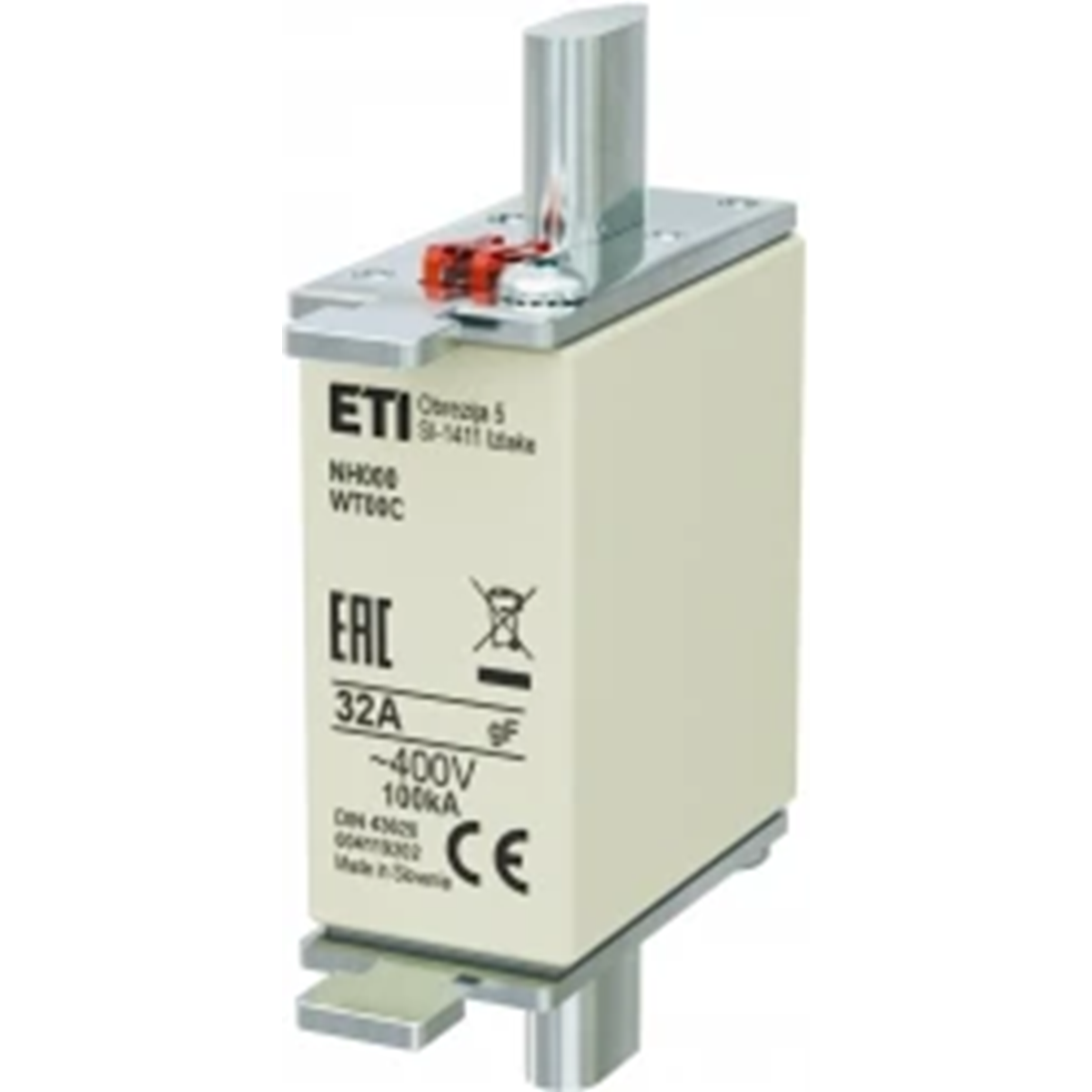

The body of the fuse link is made of full-fledged steatite, which is very resistant to thermal loads. Covers made of aluminum are permanently resistant to corrosion. In the inner part of the ceramic body there is a copper fusing element, which is attached to a specially prepared inner part of the knife contact. In addition, the interior of the ceramic body is filled with quartz sand of carefully selected granulation. Knife contacts are made of both copper and brass, and are protected by a layer of silver. The novelties include fuse links with a trip indicator in the frontal part of its body, as well as with insulated catches for inserting and removing fuse-links from the base, and a fuse-link with a striker.

Rated voltage [V]

400
Pieces in the package

3
Rated short-circuit capacity [kA]

122 kA

Rated current [A]

32
Weight [g]

125
PKWIU

27.12.21.0

Other technical data

Voltage type

AC
Rated switching capacity

100 kA
Type of fuse status indicator

Top fuse status indicator

Rated current

32 A
Utilization category

Other

A kind of package	Pudełko	Pudełko
Quantity	1 pkg.	40 pkg.
Weight (kg)	0,360	-
Volume (m3)	0,000	-
Width (m)	0,066	-
Length (m)	0,084	-
Depth (m)	0,058	-
