Industrial fast fuse-link, G WT-1/gF 80A G 004139129

Name: Industrial fast fuse-link, G WT-1/gF 80A G
Brand: ETI POLAM
SKU: ABM563ETIP
Price: 19.79 PLN

local index:

ABM563ETIP

Catalog No:

004139129

EAN code:

5904722992221

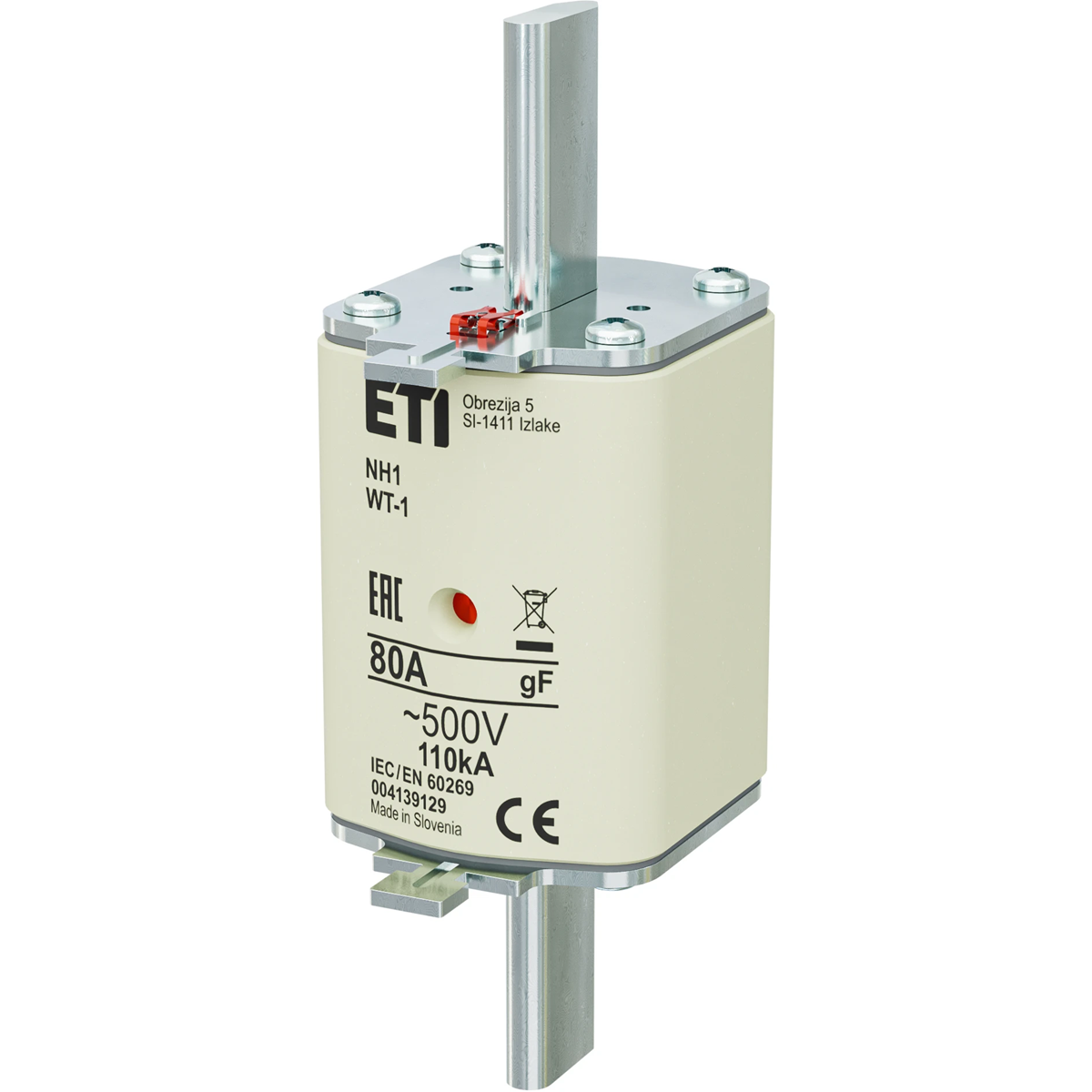

Industrial fast fuse-link, G WT-1/gF 80A G

Click on the photo to enlarge

Manufacturer: ETI POLAM

Rated voltage [V]: 500

Rated current [A]: 80

Weight [g]: 425

See full description

Price:

19,79 €

gross / pcs.

(including VAT 23%)

46,56 € gross/kg.

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

1

)

Add to clipboard

Print

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

The characteristics of the WT-gTr fuse-links are matched to the characteristics of the transformer loads and the characteristics of the high-voltage fuses.
- The fuse-links are marked according to the transformer power in [kVA]
- They enable the use of overload capacity (1.3 x In)
- Trip at 1.5 x In occurs within 2 hours
- Rated voltage 400, 50Hz
- Utilization category: gTr according to VDE 0636/2011
- Short-circuit breaking capacity [kA]: - 100 kA

Technical data

Rated voltage [V]

500
Weight [g]

425
PKWIU

27.12.21.0

Rated current [A]

80
Rated short-circuit capacity [kA]

115, 120

Other technical data

Voltage type

AC
Rated switching capacity

110 kA
Type of fuse status indicator

Top fuse status indicator

Rated current

80 A
Utilization category

Other

Manufacturer details

Manufacturer

ETI Polam Sp. z o.o.
Address

06-100 Pułtusk Jana Pawła II 18 Polska
E-mail

etipolam@etipolam.com.pl

Bulk packaging

A kind of package	Pudełko	Pudełko	Pudełko	Pudełko
Quantity	3 pcs.	24 pcs.	3 pcs.	24 pcs.
Weight (kg)	1,380	11,040	1,380	11,040
Volume (m3)	0,001	0,017	0,001	0,017
Width (m)	0,065	0,230	0,065	0,230
Length (m)	0,139	0,250	0,139	0,250
Depth (m)	0,150	0,290	0,150	0,290

Files to download

PL170123V8.pdf
