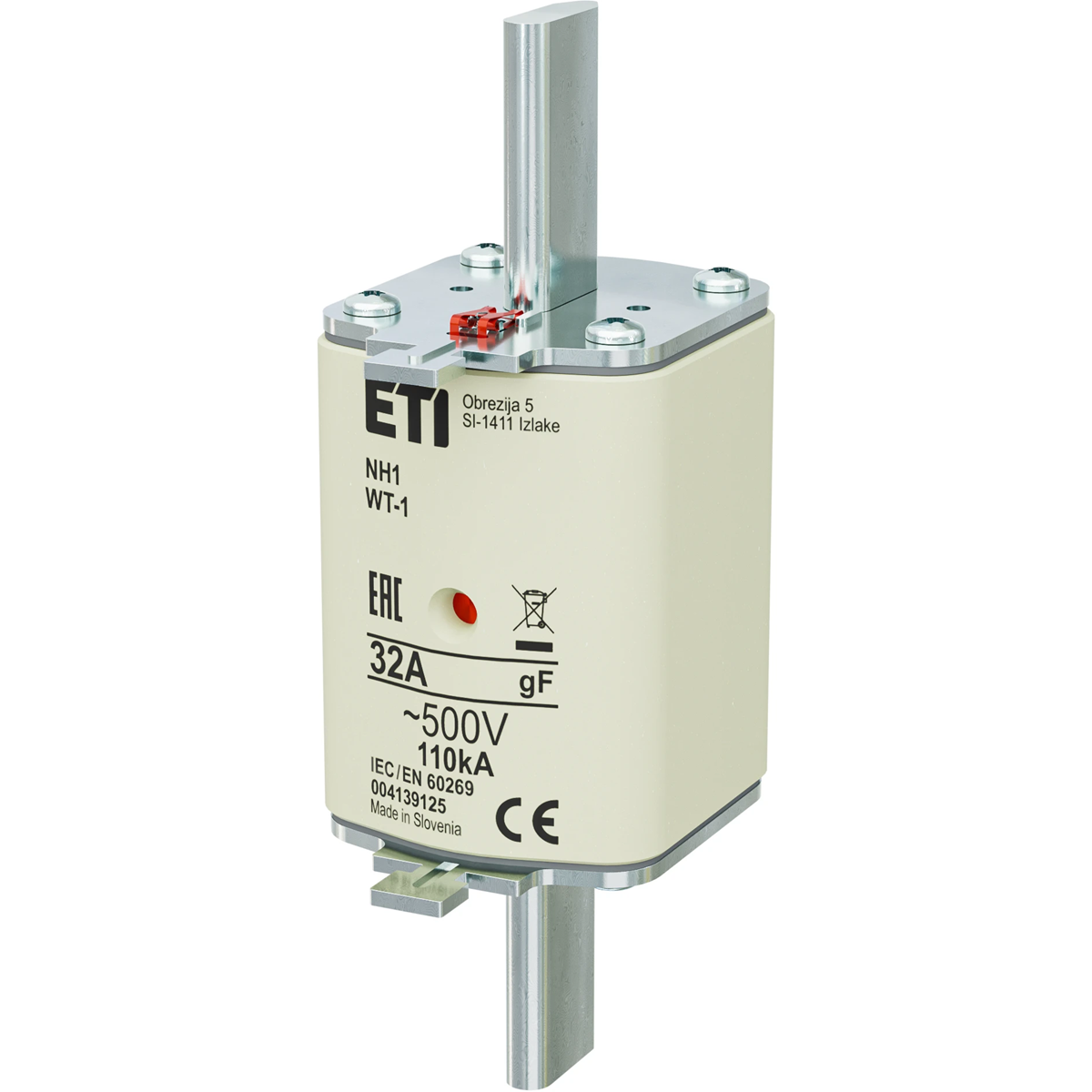

Industrial fast fuse-link, G WT-1/gF 32A G 004139125

Index local:
ABM558ETIP
Numéro de catalogue:
004139125
Code EAN:
5904722979703
Producteur: ETI POLAM
Rated voltage [V]: 500
Rated current [A]: 32
Weight [g]: 425
Prix:
19,16 €
gross / pcs.
(y compris la TVA 23%)
45,08 € gross/kg.
Livraison en 3h
jusqu'à 2 semaines (jours ouvrables)
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

The characteristics of the WT-gTr fuse-links are matched to the characteristics of the transformer loads and the characteristics of the high-voltage fuses.
- The fuse-links are marked according to the transformer power in [kVA]
- They enable the use of overload capacity (1.3 x In)
- Trip at 1.5 x In occurs within 2 hours
- Rated voltage 400, 50Hz
- Utilization category: gTr according to VDE 0636/2011
- Short-circuit breaking capacity [kA]: - 100 kA

Données techniques

  • Rated voltage [V]
    500
  • Weight [g]
    425
  • PKWIU
    27.12.21.0
  • Rated current [A]
    32
  • Rated short-circuit capacity [kA]
    115, 120

Autres données techniques

  • Voltage type
    AC
  • Rated switching capacity
    110 kA
  • Type of fuse status indicator
    Top fuse status indicator
  • Rated current
    32 A
  • Utilization category
    Other

Détails du fabricant

Emballage en vrac

Une sorte de paquet Pudełko Pudełko
Quantité 3 pcs. 24 pcs.
poids (kg) 1,380 11,040
Volume (m3) 0,001 0,017
Largeur (m) 0,065 0,230
Longueur (m) 0,139 0,250
Profondeur (m) 0,150 0,290
