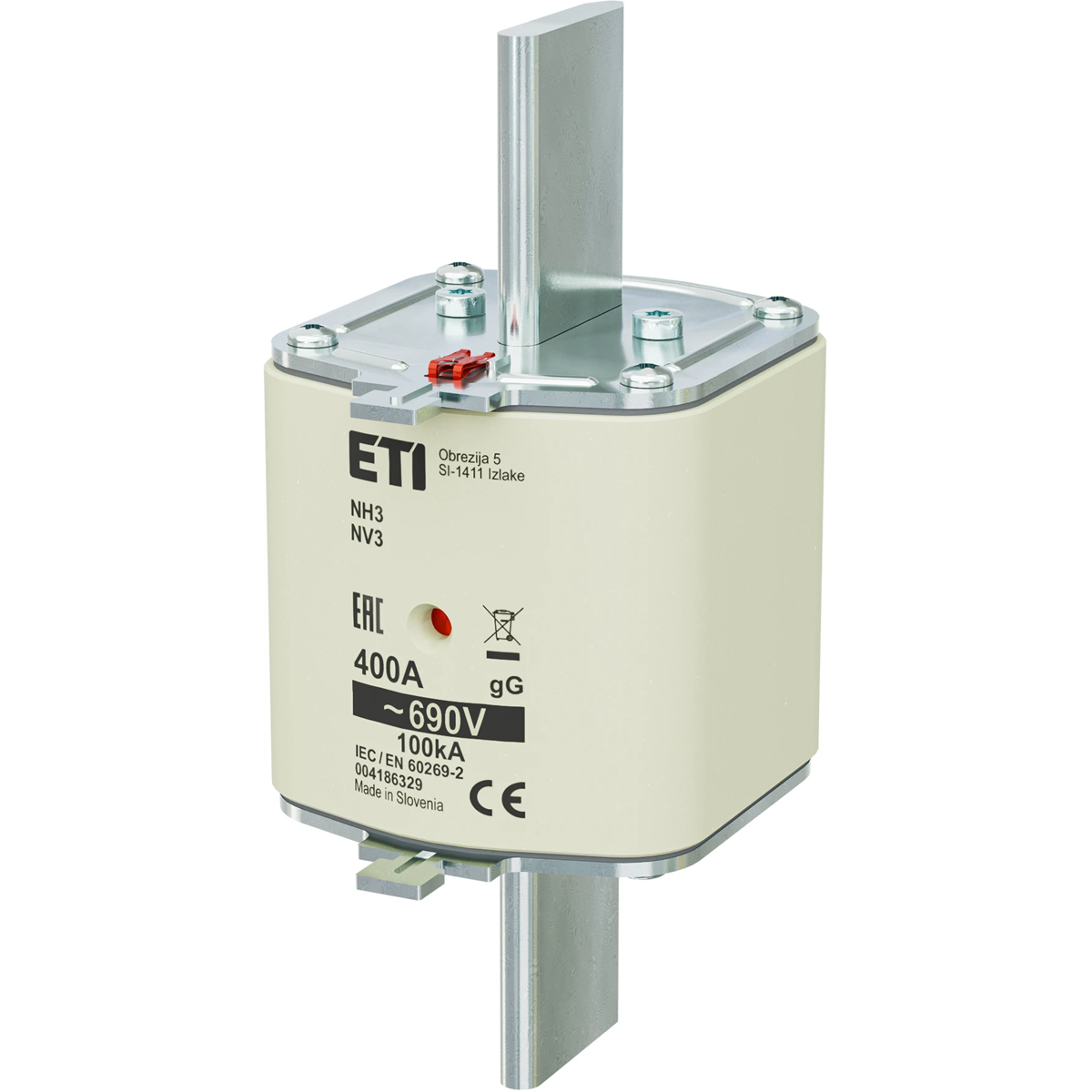

Industrial delayed fuse link KOMBI WT-3/gG 400A K 690 004186329

local index:
ABM602ETIP
Catalog No:
004186329
EAN code:
5904722996014
Manufacturer: ETI POLAM
Rated voltage [V]: 690
Rated current [A]: 400
Weight [g]: 923
Price:
37,10 €
gross / pcs.
(including VAT 23%)
40,20 € gross/kg.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The characteristics of the WT-gTr fuse-links are matched to the characteristics of the transformer loads and the characteristics of high-voltage fuses.
- The fuse-links are marked according to the transformer power in [kVA]
- They enable the use of overload capacity (1, 3 x In)
- Trip at 1.5 x In occurs within 2 hours
- Rated voltage 400, 50Hz
- Utilization category: gTr acc. to VDE 0636/2011
- Short-circuit breaking capacity [kA]: - 100 kA

Technical data

  • Rated voltage [V]
    690
  • Weight [g]
    923
  • PKWIU
    27.12.21.0
  • Rated current [A]
    400
  • Rated short-circuit capacity [kA]
    120

Other technical data

  • Voltage type
    AC
  • Rated switching capacity
    100 kA
  • Type of fuse status indicator
    Combination fuse status indicator
  • Rated current
    400 A
  • Utilization category
    gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)

Bulk packaging

A kind of package Pudełko Pudełko
Quantity 3 pcs. 12 pcs.
Weight (kg) 2,500 -
Volume (m3) 0,003 -
Width (m) 0,166 0,295
Length (m) 0,150 0,235
Depth (m) 0,074 0,245
