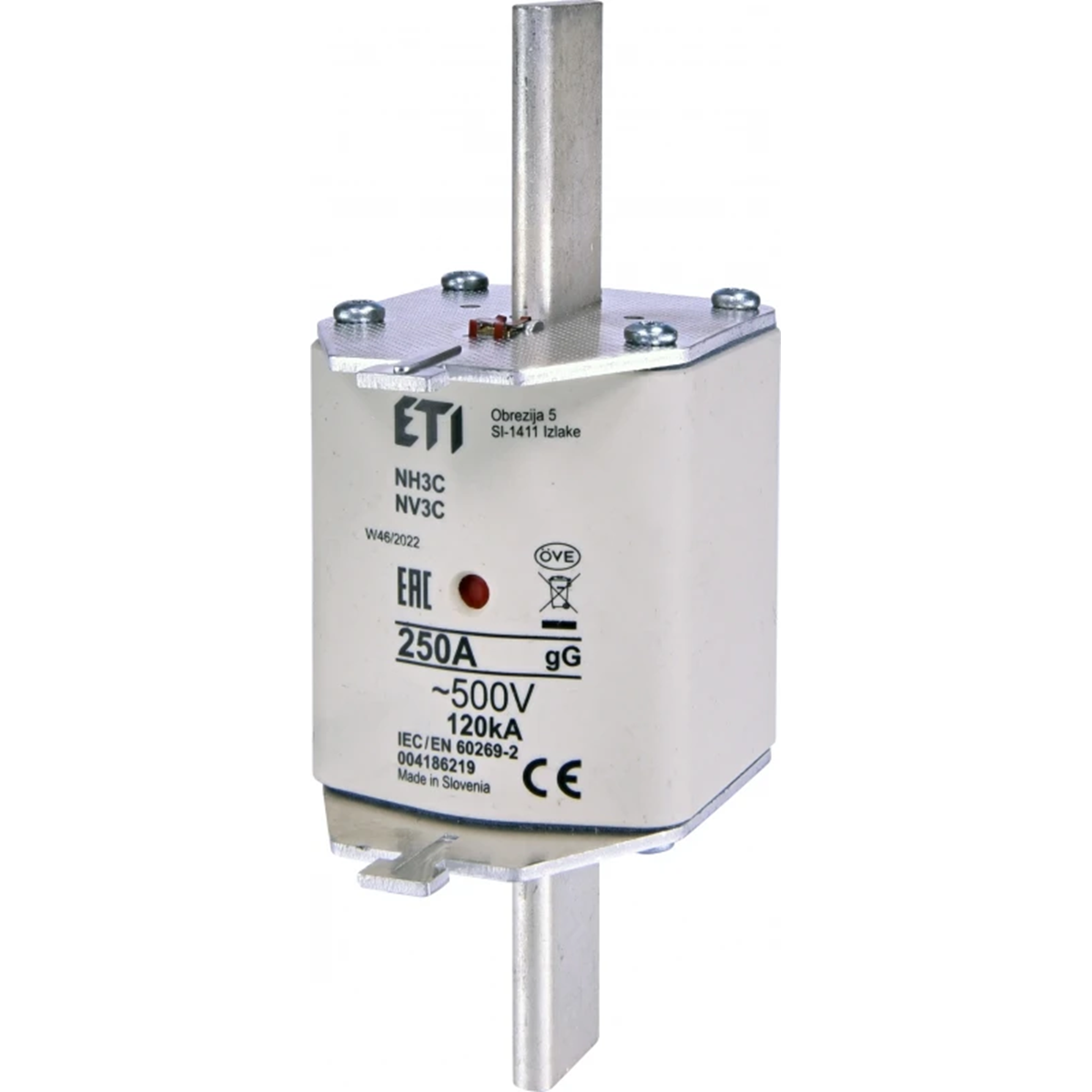

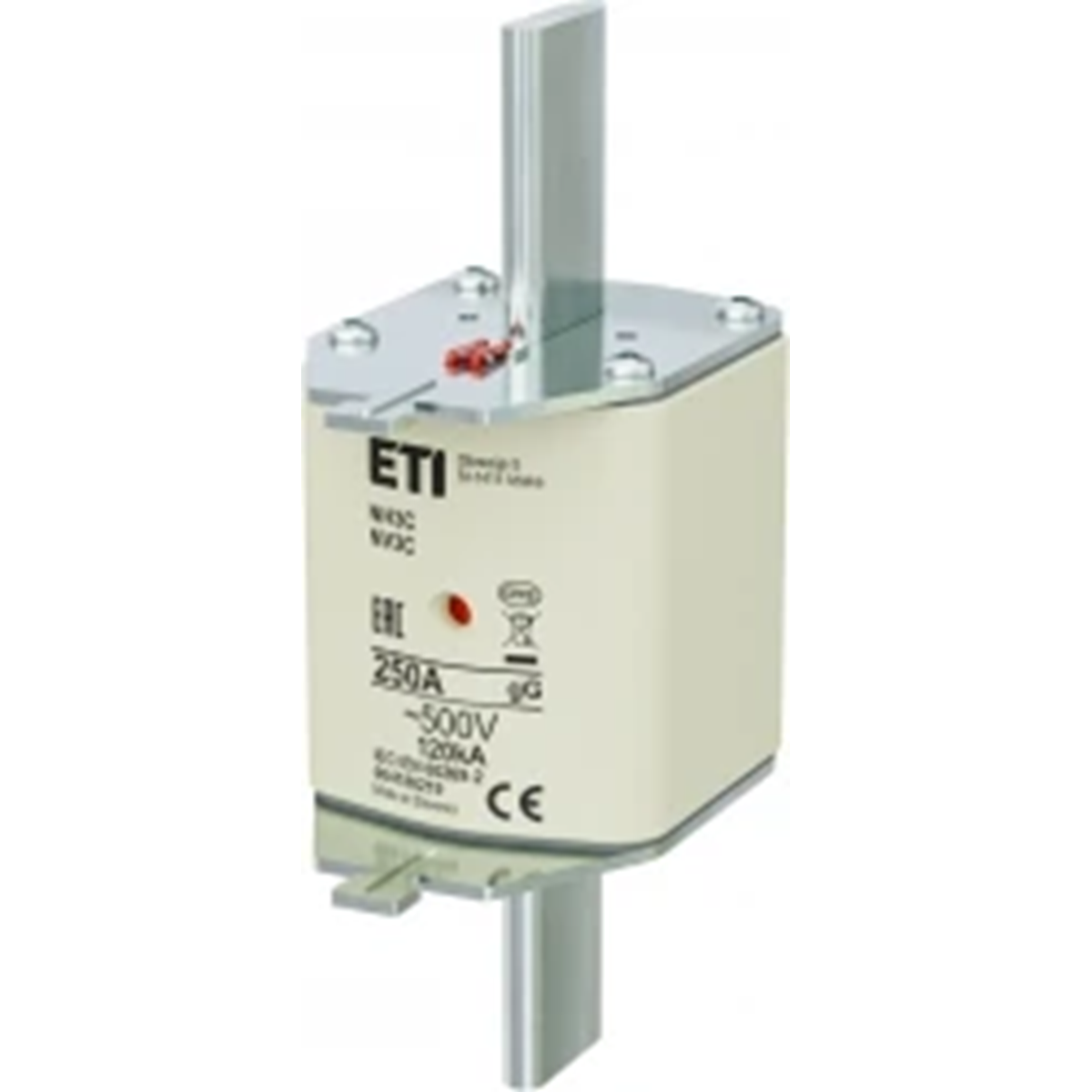

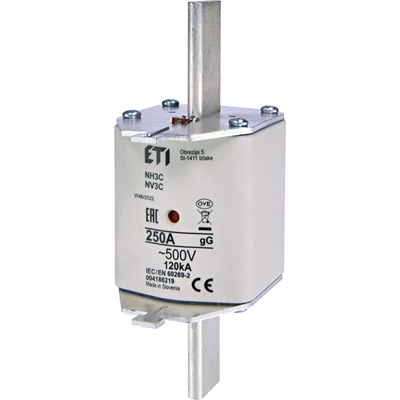

Industrial delayed fuse link KOMBI WT-3C/gG 250A K 004186219

Indice locale:
ABM640ETIP
Numero di catalogo:
004186219
Codice EAN:
5904722951891
Produttore: ETI POLAM
Rated voltage [V]: 500
Rated current [A]: 250
Pieces in the package: 3
Prezzo:
234,51 zł
gross / conf.
(inclusa IVA 23%)
78,17 zł gross/pezzi
Consegna in 3 ore
fino a 2 settimane (giorni lavorativi)
Raccolta in 1h
Quantità conf.
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

The characteristics of the WT-gTr fuse-links are matched to the characteristics of the transformer loads and the characteristics of high-voltage fuses:
- The fuse-links are marked according to the transformer power in [kVA]
- They enable the use of overload capacity (1.3 x In)
- Trip at 1.5 x In occurs within 2 hours
- Rated voltage 400, 50Hz
- Utilization category: gTr according to VDE 0636/2011
- Short-circuit breaking capacity [kA]: - 100 kA

Dati tecnici

  • Rated voltage [V]
    500
  • Pieces in the package
    3
  • Rated short-circuit capacity [kA]
    120
  • Rated current [A]
    250
  • Weight [g]
    510
  • PKWIU
    27.12.21.0

Altri dati tecnici

  • Voltage type
    AC
  • Rated switching capacity
    120 kA
  • Type of fuse status indicator
    Combination fuse status indicator
  • Rated current
    250 A
  • Utilization category
    gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)

Dettagli del produttore

Imballaggio sfuso

Una specie di pacchetto Pudełko Pudełko
Quantità 1 conf. 4 conf.
Peso (kg) 1,755 7,020
Volume (m3) 0,002 0,017
Larghezza (m) 0,153 0,230
Lunghezza (m) 0,088 0,250
Profondità (m) 0,168 0,290
