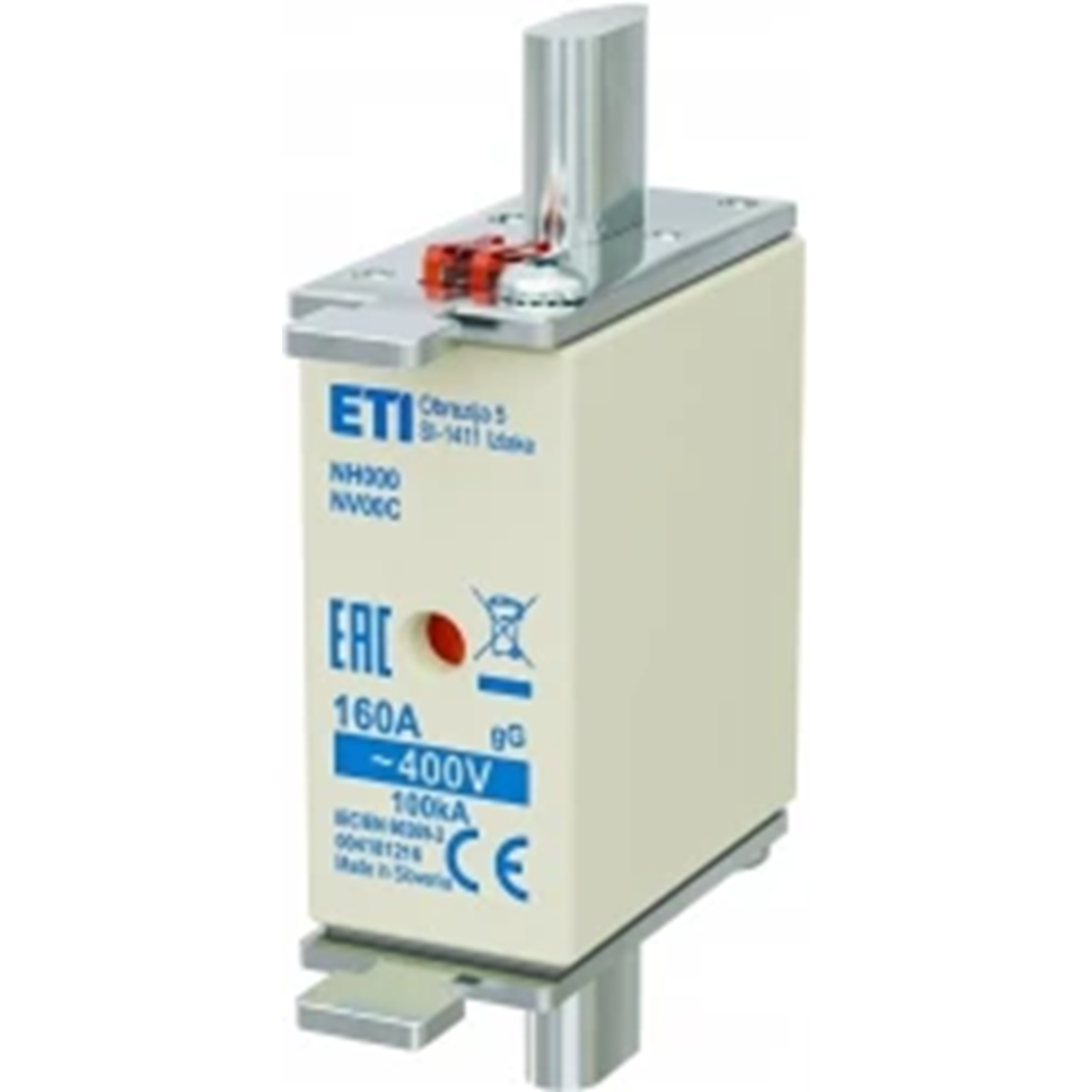

Industrial delayed fuse link KOMBI WT-00C/gG 160A K (400) 004181216

Indice locale:
ABM716ETIP
Numero di catalogo:
004181216
Codice EAN:
3838895905608
Produttore: ETI POLAM
Rated voltage [V]: 400
Rated current [A]: 160
Pieces in the package: 3
Prezzo:
78,08 zł
gross / conf.
(inclusa IVA 23%)
26,03 zł gross/pezzi
Consegna in 3 ore
fino a 2 settimane (giorni lavorativi)
Raccolta in 1h
Quantità conf.
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

WT KOMBI fuse links - is a new series of fuse links with a double activation indicator. The combination of both actuation indicators means that both the front indicator and the indicator located on the top cover will operate simultaneously when the insert burns out. KOMBI provides very good visibility of the operating status of the fuse link, both in fuse bases and fuse switch disconnectors

Dati tecnici

  • Rated voltage [V]
    400
  • Pieces in the package
    3
  • Rated short-circuit capacity [kA]
    120
  • Rated current [A]
    160
  • Weight [g]
    125
  • PKWIU
    27.12.21.0

Altri dati tecnici

  • Voltage type
    AC
  • Rated switching capacity
    120 kA
  • Type of fuse status indicator
    Combination fuse status indicator
  • Rated current
    160 A
  • Utilization category
    gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)

Dettagli del produttore

Imballaggio sfuso

Una specie di pacchetto Pudełko Pudełko
Quantità 1 conf. 40 conf.
Peso (kg) 0,360 14,400
Volume (m3) 0,000 0,017
Larghezza (m) 0,052 0,230
Lunghezza (m) 0,065 0,250
Profondità (m) 0,080 0,290
