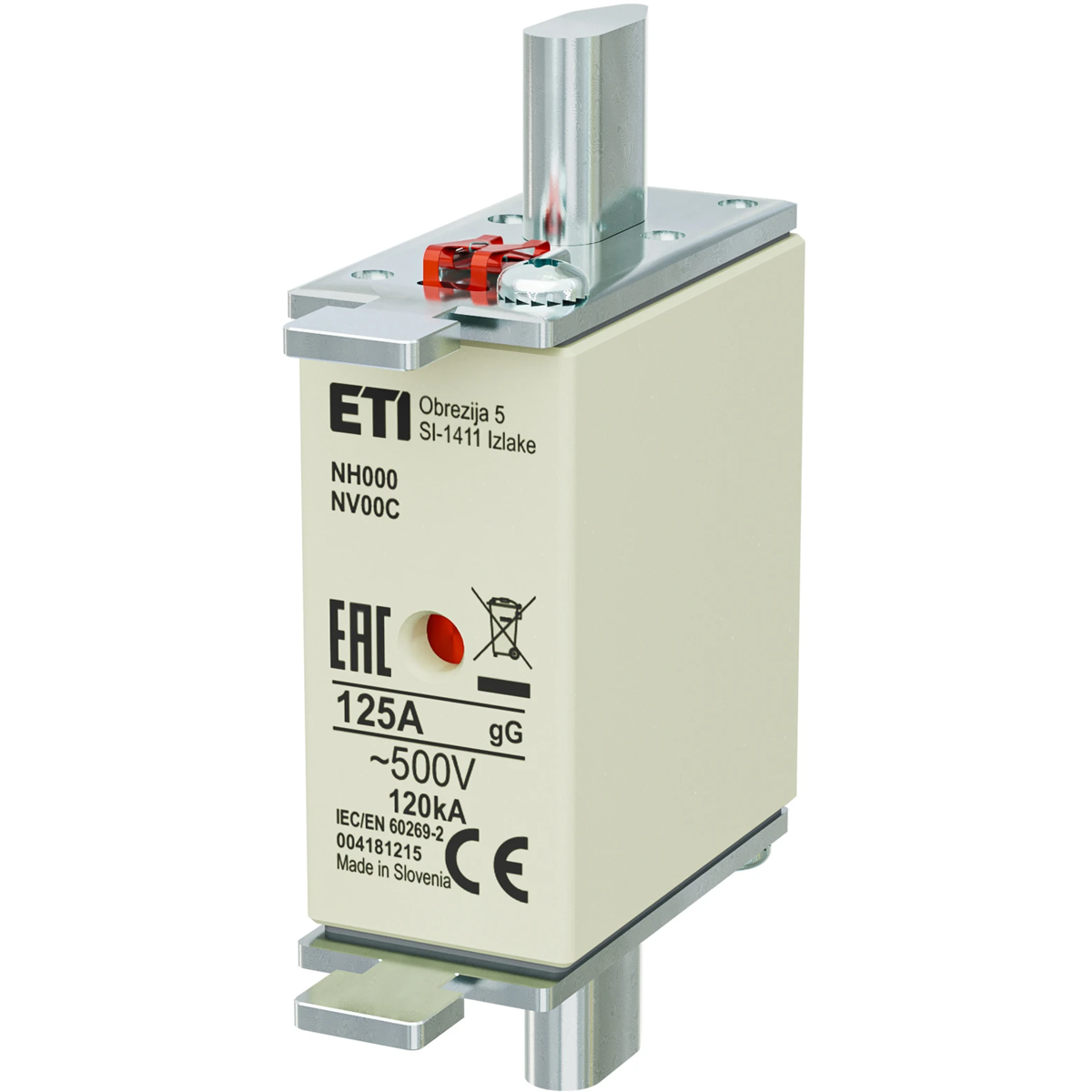

Industrial delayed fuse link KOMBI WT-00C/gG 125A K 004181215

Místní index:
ABM715ETIP
Katalogové číslo.:
004181215
EAN kód:
3838895582663
Výrobce: ETI POLAM
Rated voltage [V]: 500
Rated current [A]: 125
Pieces in the package: 3
Cena:
80,42 zł
gross / balení
(včetně DPH 23%)
26,81 zł gross/kusů.
Dodání do 3 hodin
do 2 týdnů (pracovní dny)
Vyzvednutí za 1h
Množství balení
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Popis produktu

WT KOMBI fuse links - is a new series of fuse links with a double activation indicator. The combination of both actuation indicators means that both the front indicator and the indicator located on the top cover will operate simultaneously when the insert burns out. KOMBI provides very good visibility of the operating status of the fuse link, both in fuse bases and fuse switch disconnectors

Technické údaje

  • Rated voltage [V]
    500
  • Pieces in the package
    3
  • Rated short-circuit capacity [kA]
    120
  • Rated current [A]
    125
  • Weight [g]
    125
  • PKWIU
    27.12.21.0

Další technické údaje

  • Voltage type
    AC
  • Rated switching capacity
    120 kA
  • Type of fuse status indicator
    Combination fuse status indicator
  • Rated current
    125 A
  • Utilization category
    gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)

Podrobnosti o výrobci

Velkoobjemová balení

Typ obalu Pudełko Pudełko Pudełko Pudełko
Množství 1 balení 40 balení 1 balení 40 balení
Hmotnost (kg) 0,360 14,400 0,360 14,400
Objem (m3) 0,000 0,017 0,000 0,017
Šířka (m) 0,052 0,230 0,052 0,230
Délka (m) 0,065 0,250 0,065 0,250
Hloubka (m) 0,080 0,290 0,080 0,290
