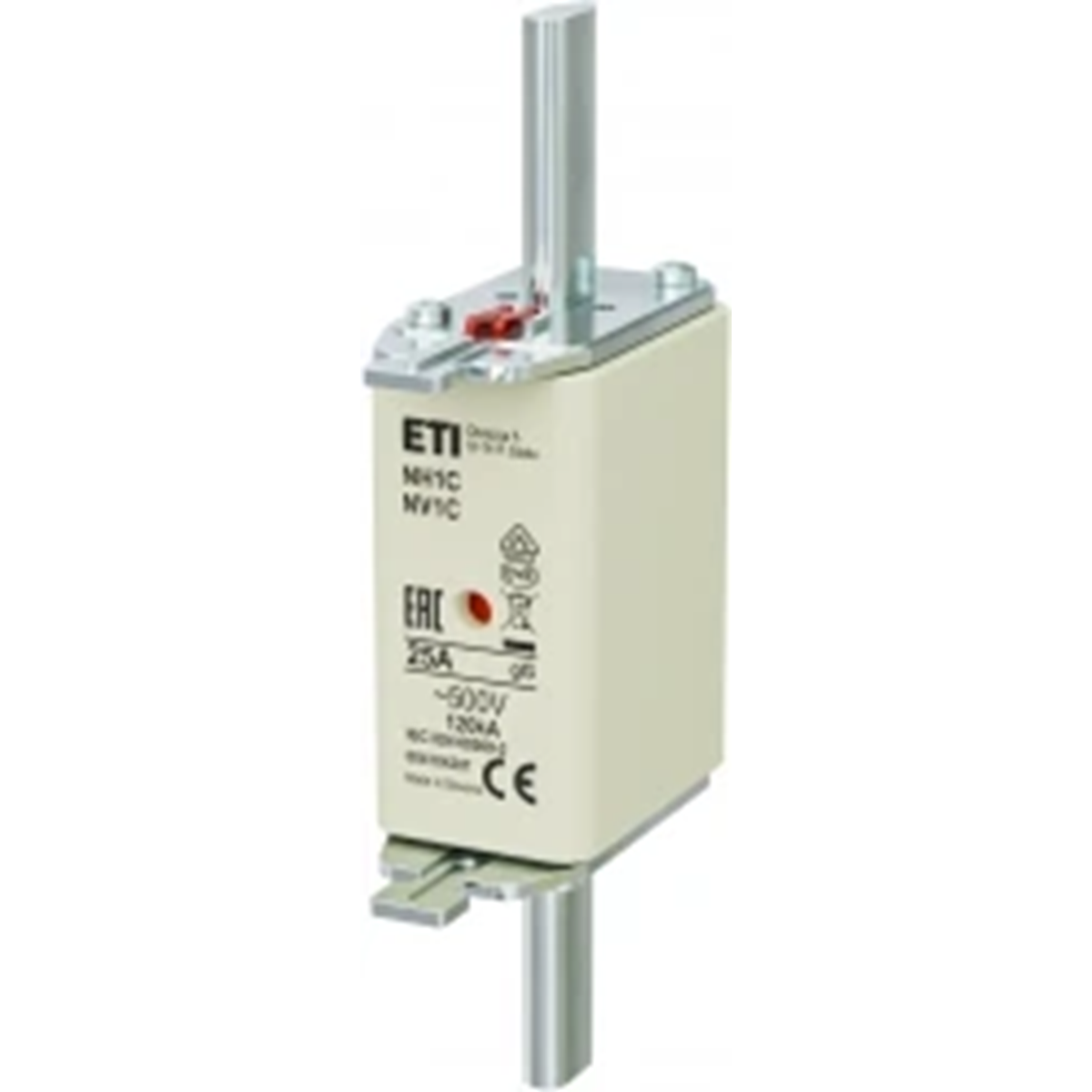

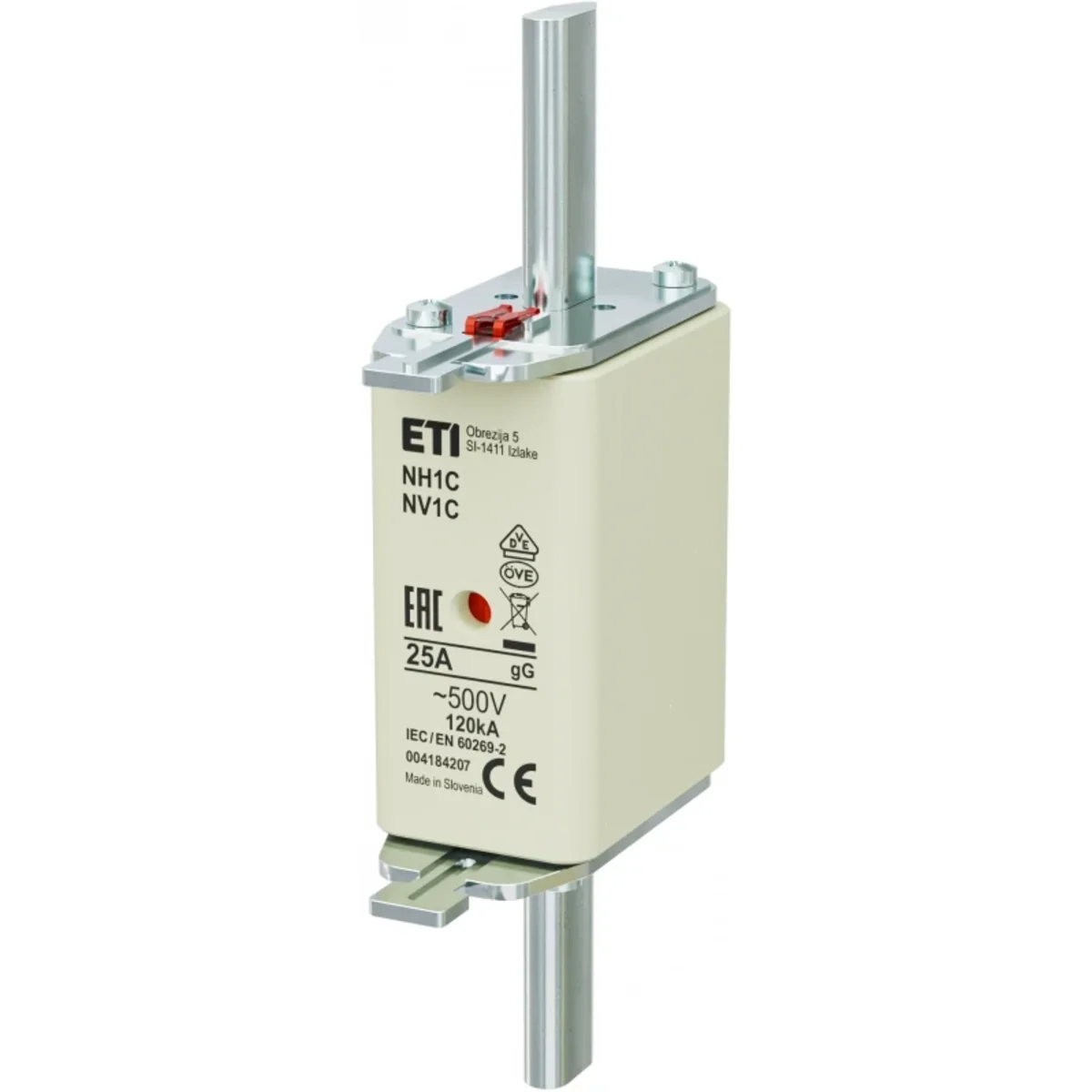

Industrial delayed fuse link KOMBI NH1C gG 25A/500V 004184207

Indice locale:
ABM138ETIP
Numero di catalogo:
004184207
Codice EAN:
3838895354055
Produttore: ETI POLAM
Characteristic: gG
Rated voltage [V]: 500
Rated current [A]: 25
Prezzo:
7,55 €
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
Accessibile 44 pezzi
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

The slow-blow fuse link is the right choice if you want to protect your devices against a momentary voltage spike. Used where there is a short-term overload (e.g. the moment of connecting a new power supply device to the network. A fuse with a slow-blow fuse link can withstand a momentary increase in voltage and not turn off the entire network, despite a temporary overload. This is due to the loop located in the insert, which can accumulate energy for some time.

Dati tecnici

  • Characteristic
    gG
  • Rated current [A]
    25
  • Size
    NH1C
  • Indicator
    KOMBI double indicator
  • Rated voltage [V]
    500
  • Type
    NH
  • Short-circuit breaking capacity [kA]
    120
  • PKWIU
    27.12.21.0

Altri dati tecnici

  • Voltage type
    AC
  • Rated switching capacity
    120 kA
  • Type of fuse status indicator
    Combination fuse status indicator
  • Rated current
    25 A
  • Utilization category
    gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)

Dettagli del produttore

Imballaggio sfuso

Una specie di pacchetto Pudełko Pudełko
Quantità 3 pezzi 45 pezzi
Peso (kg) 0,735 11,025
Volume (m3) 0,001 0,017
Larghezza (m) 0,062 0,230
Lunghezza (m) 0,090 0,250
Profondità (m) 0,135 0,290
