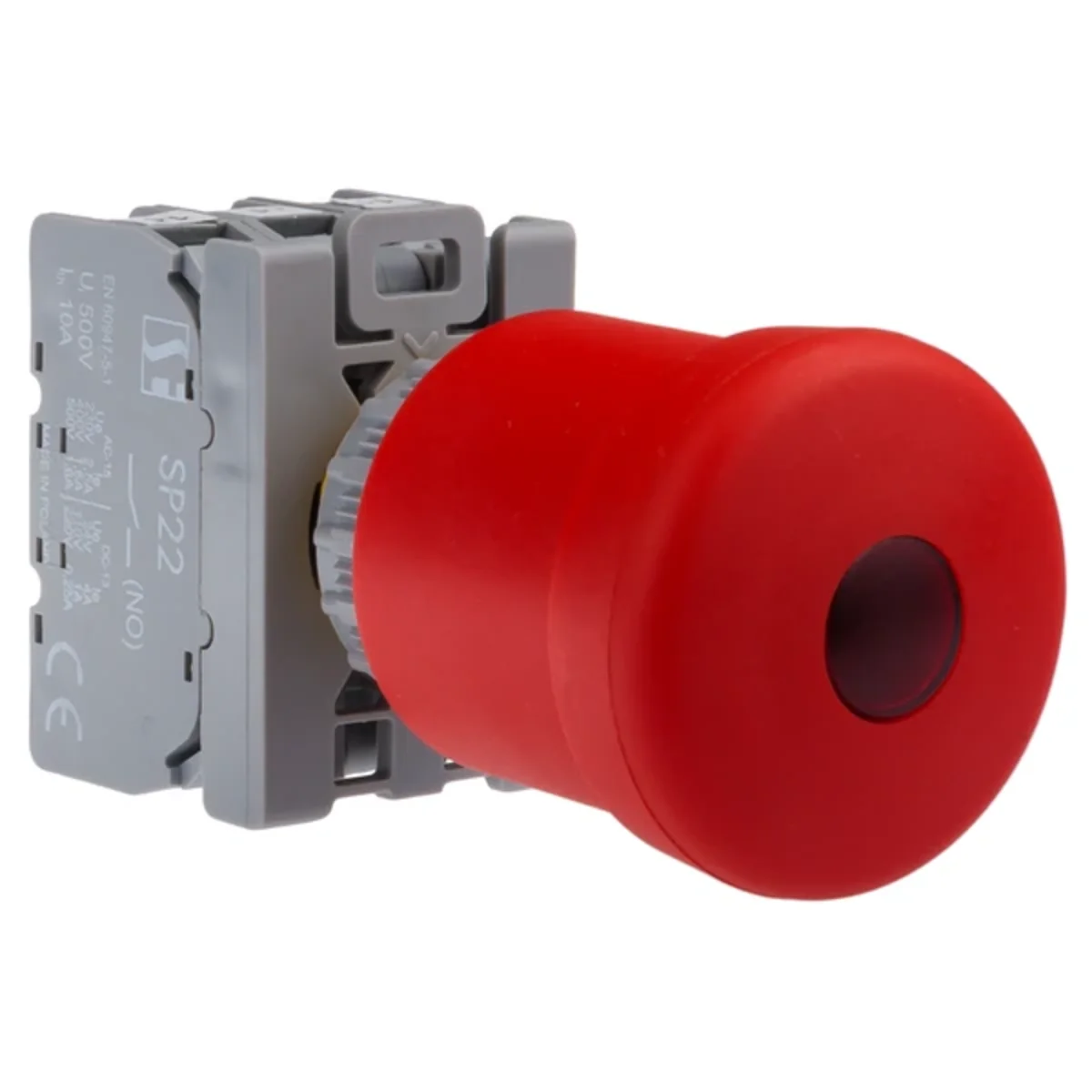

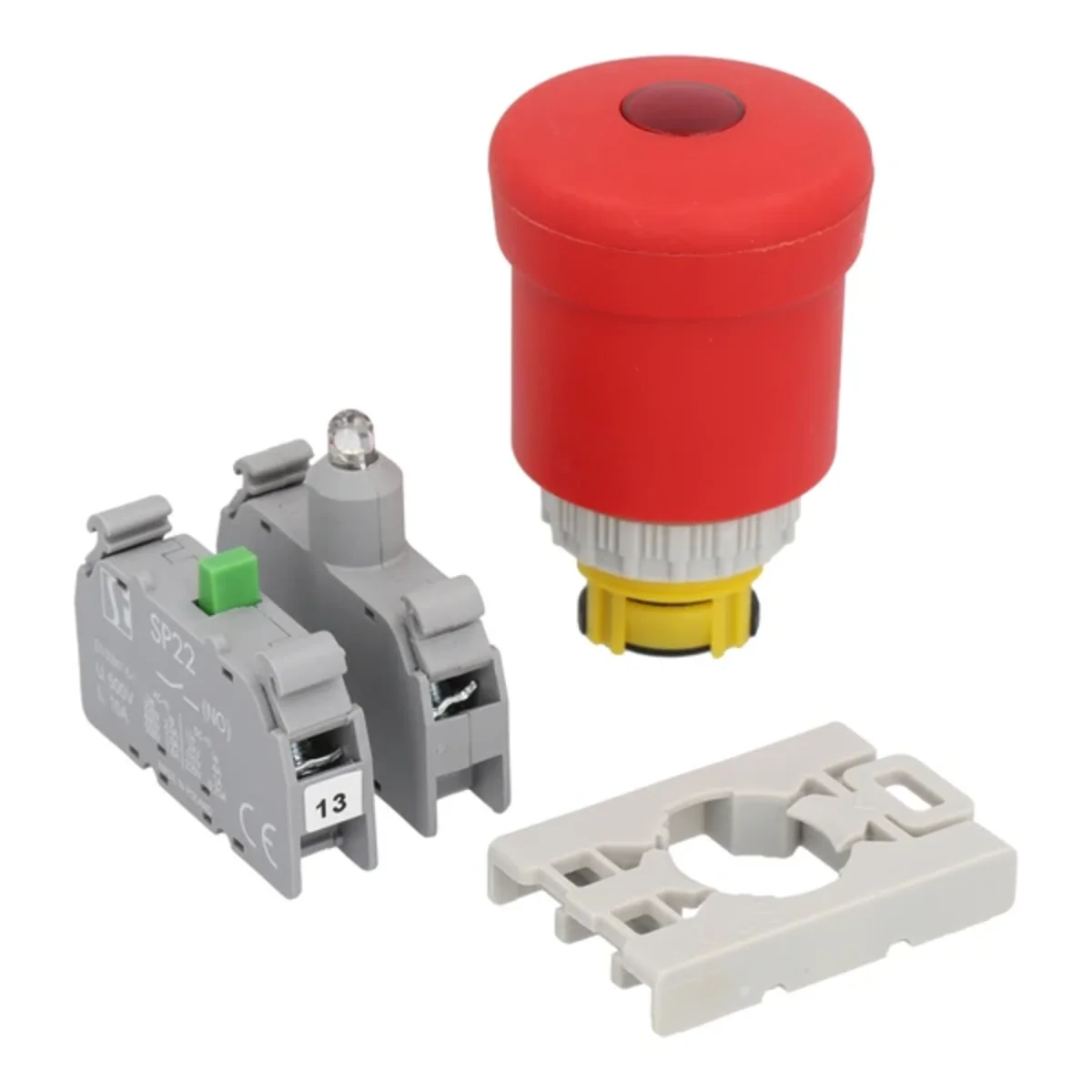

Illuminated universal safety button 1 NO contact 1 NC contact SP22-BLN-11-LEDUNI\.
local index:
AKS039SPAM
Catalog No:
SP22-BLN-11-LEDUNI\.
EAN code:
5907723088634
Price:
32,30 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The SP22 control buttons are used to connect or disconnect currents up to 2.5 A, light and sound signaling in machine panels and control cabinets.
Technical data
-
ColorRed
-
Housing materialPlastic
-
Level of securityIP65
-
Accurate colorRed
-
ShapeRound
-
Rated voltage [V]230
-
Hole diameter [mm]22
Other technical data
-
Number of command positions1
-
Colour buttonRed
-
Hole diameter22 mm
-
Height opening22 mm
-
Switching function latchingYes
-
Number of contacts as normally open contact1
-
Number of contacts as change-over contact0
-
With front ringYes
-
Colour front ringGrey
-
Type of buttonMushroom
-
Construction type lensRound
-
Width opening22 mm
-
Suitable for illuminationYes
-
Spring-returnNo
-
Number of contacts as normally closed contact1
-
Type of electric connectionScrew connection
-
Material front ringPlastic
-
Degree of protection (IP)IP65
