SPAMEL

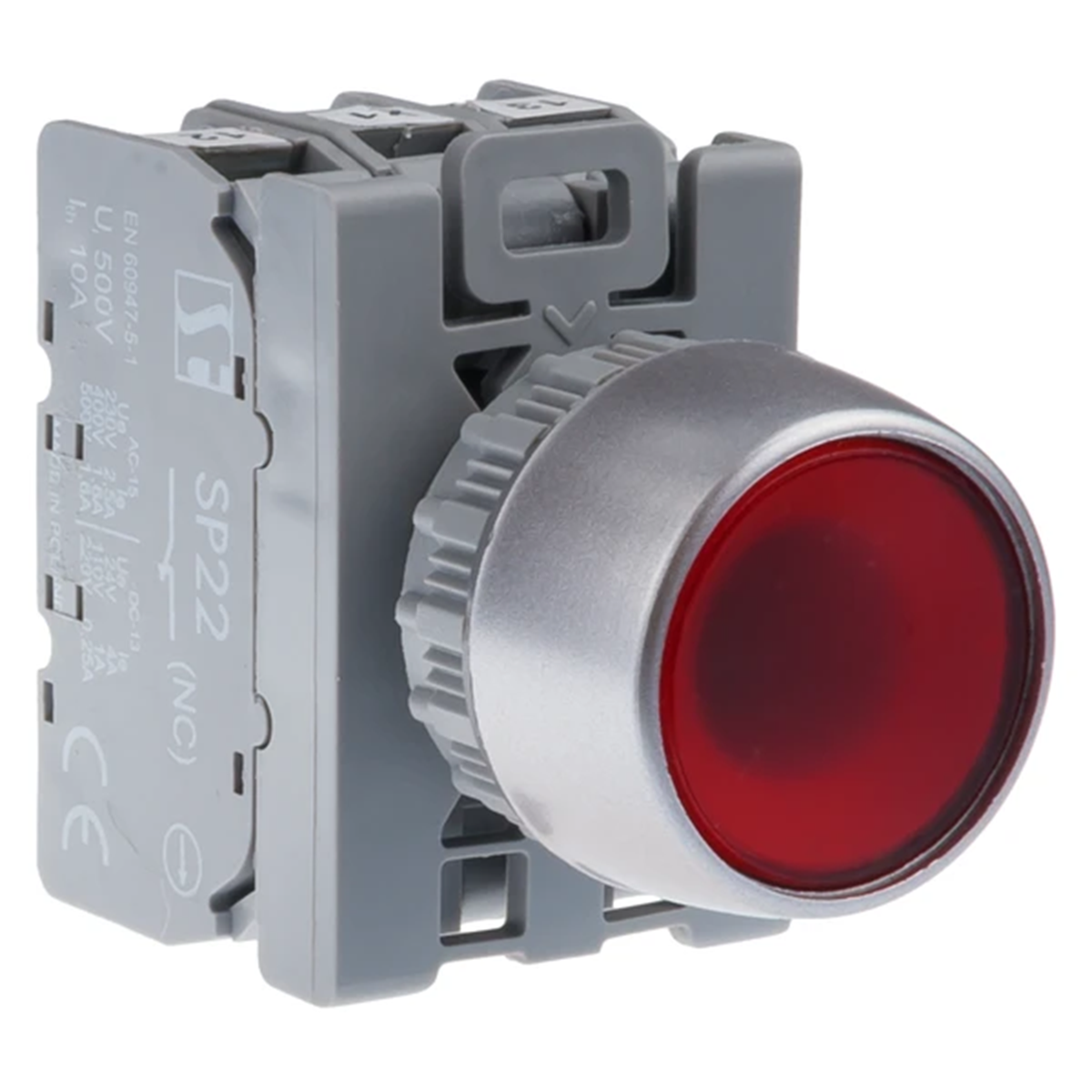

Illuminated red concealed push-button 1 NO contact nickel-plated ring SP22-KLC-10-LED-UNI\AC/DC

local index:
AKS034SPAM
Catalog No:
SP22-KLC-10-LED-UNI\AC/DC
EAN code:
5907723079908
Price:
22,25 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,69 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

The SP22 control buttons are used to connect or disconnect currents up to 2.5 A, light and sound signaling in machine panels and control cabinets.

Technical data

  • Color
    Red
  • Face ring material
    Plastic
  • Hole diameter [mm]
    22
  • Lens shape
    Round
  • Level of security
    IP65
  • Accurate color
    Red

Other technical data

  • Number of command positions
    1
  • Colour button
    Red
  • Hole diameter
    22 mm
  • Height opening
    22 mm
  • Switching function latching
    no
  • Number of contacts as normally open contact
    1
  • Number of contacts as change-over contact
    0
  • With front ring
    yes
  • Colour front ring
    Grey
  • Type of button
    Flat
  • Construction type lens
    Round
  • Width opening
    22 mm
  • Suitable for illumination
    yes
  • Spring-return
    yes
  • Number of contacts as normally closed contact
    0
  • Type of electric connection
    Screw connection
  • Material front ring
    Plastic
  • Degree of protection (IP)
    IP65
