IDK-40-2-30-A residual current device 40A 2-pole 30mA type A A9Z01240
local index:
ARP042SCHN
Catalog No:
A9Z01240
EAN code:
3606480482762

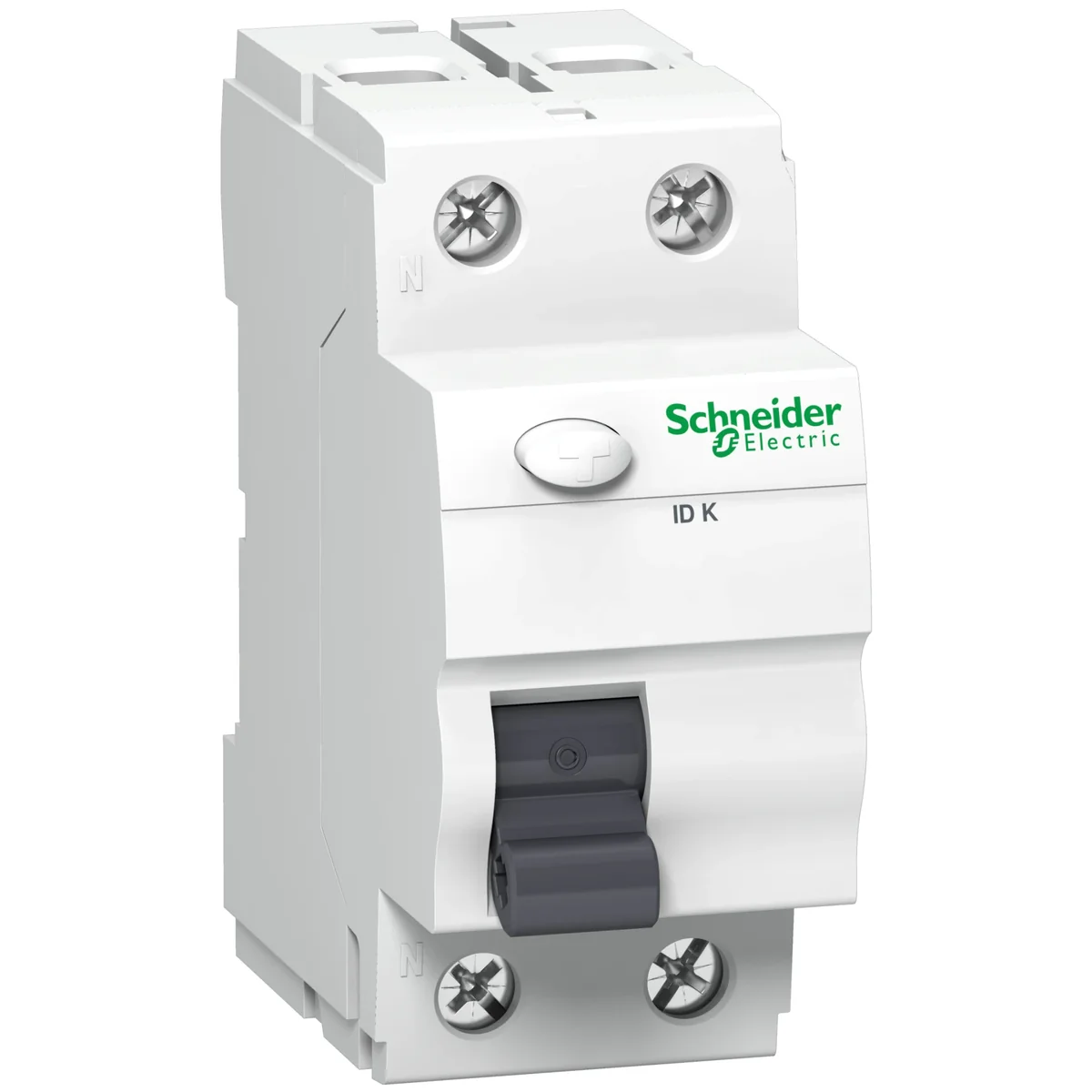

Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
Color:
White
See full description
Price:
57,77 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description
IDK-40-2-30-A residual current device 40A 2-pole 30mA type A
Technical data
Color
White
PKWIU
27.12.23.0
Other technical data
Number of poles
2
Rated current
40 A
Rated insulation voltage Ui
440 V
Mounting method
DIN rail
Selective protection
No
Short-circuit breaking capacity (Icw)
10 kA
Frequency
50/60 Hz
With interlocking device
No
Width in number of modular spacings
2
Ambient temperature during operating
-25 ... 40 °C
Connectable conductor cross section multi-wired
1 ... 25 mm²
Rated voltage
230 V
Rated fault current
0.03 mA
Rated impulse withstand voltage Uimp
4 kV
Leakage current type
A
Short-time delayed tripping
No
Surge current capacity
0.25 kA
Additional equipment possible
Yes
Degree of protection (IP)
IP20
Built-in depth
44 mm
Pollution degree
2
Connectable conductor cross section solid-core
1 ... 35 mm²
Files to download
PEP ecopassport SCHN-00930-V01.01-EN.pdf
EU decl - FD16041308E - RCCB_Acti9K_ID K Bico.pdf
NVE8133700-00.pdf
