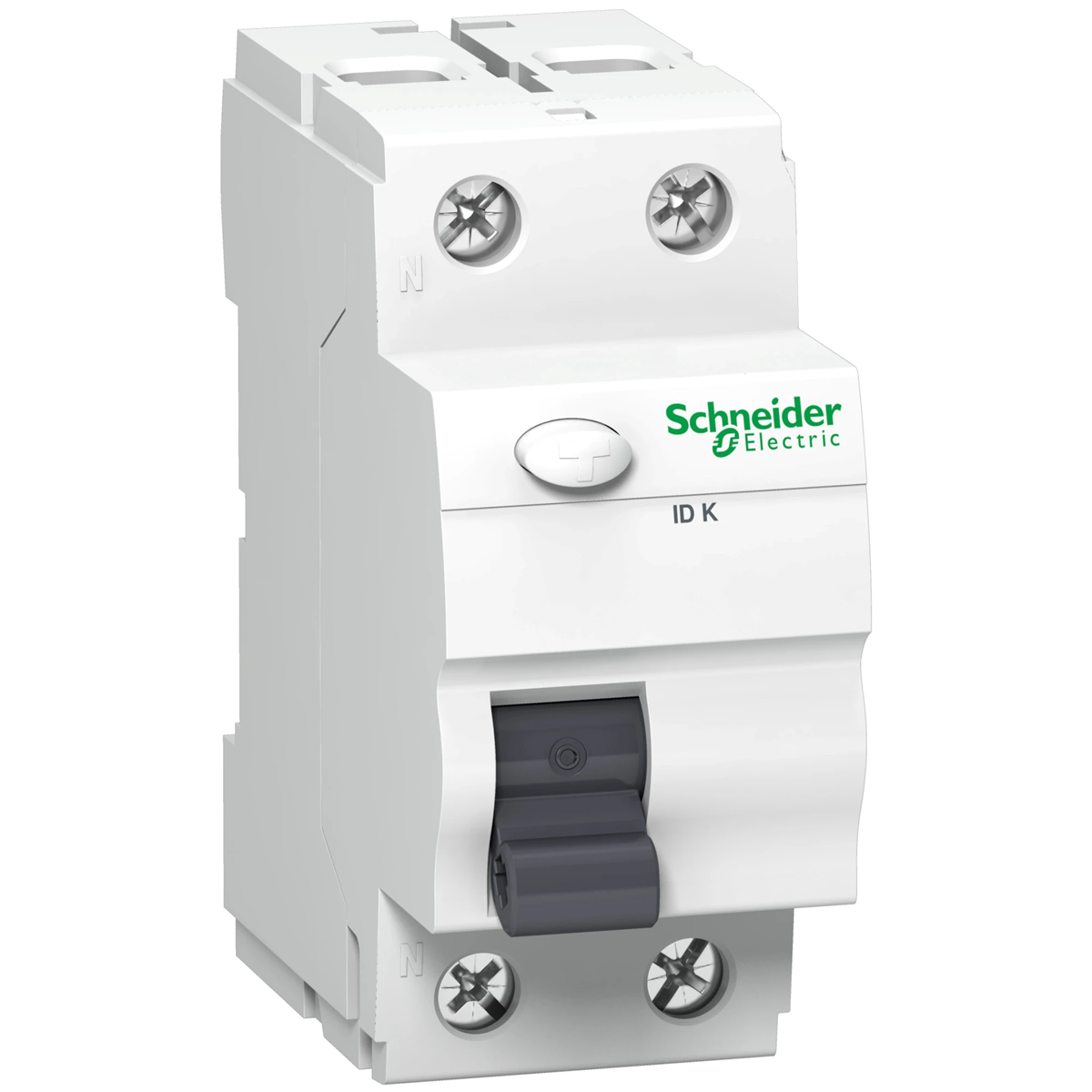

IDK-25-2-30-AC residual current device 25A 2-pole 30mA type AC A9Z05225

local index:
ARP027SCHN
Catalog No:
A9Z05225
EAN code:
3606480473883
Price:
32,99 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

IDK-25-2-30-AC residual current device 25A 2-pole 30mA type AC

Technical data

  • Color
    White
  • PKWIU
    27.12.23.0

Other technical data

  • Number of poles
    2
  • Rated current
    25 A
  • Rated insulation voltage Ui
    440 V
  • Mounting method
    DIN rail
  • Selective protection
    No
  • Short-circuit breaking capacity (Icw)
    6 kA
  • Frequency
    50/60 Hz
  • With interlocking device
    Yes
  • Width in number of modular spacings
    2
  • Ambient temperature during operating
    -5 ... 40 °C
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Rated voltage
    230 V
  • Rated fault current
    0.03 mA
  • Rated impulse withstand voltage Uimp
    4 kV
  • Leakage current type
    AC
  • Short-time delayed tripping
    No
  • Surge current capacity
    0.25 kA
  • Additional equipment possible
    No
  • Degree of protection (IP)
    IP20
  • Built-in depth
    44 mm
  • Pollution degree
    2
  • Connectable conductor cross section solid-core
    1 ... 35 mm²
