Electrical apparatus
contactors
AC contactors

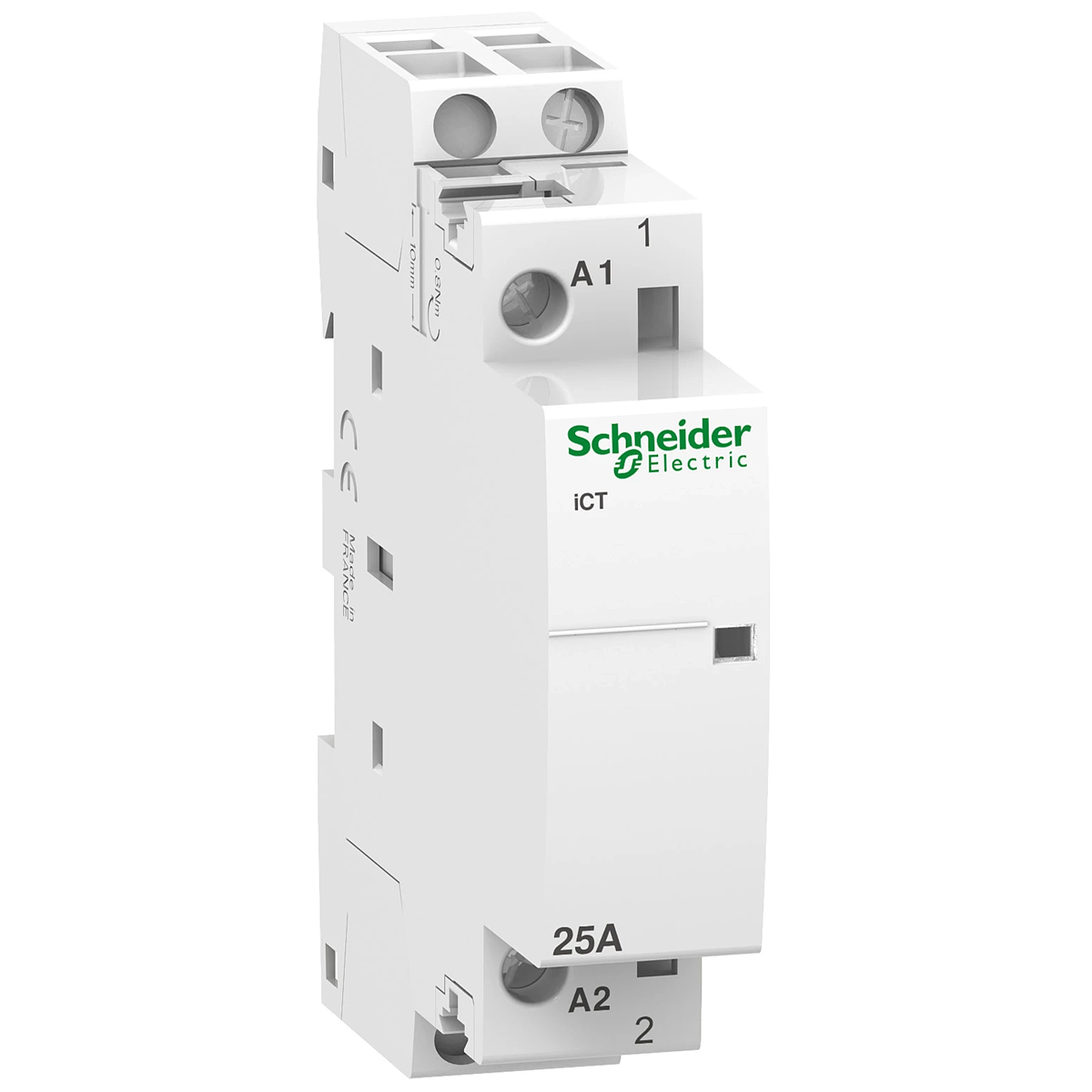

iCT60-25-20-230 modular contactor 25A 2NO 60Hz 220/240 VAC A9C20631
local index:
ATA209SCHN
Catalog No:
A9C20631
EAN code:
3606480375026
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
AC control voltage [V]:
220/240
See full description
Price:
29,90 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description
iCT60-25-20-230 modular contactor 25A 2NO 60Hz 220/240 VAC
Technical data
AC control voltage [V]
220/240
PKWIU
27.12.24.0
Other technical data
Rated operating voltage
250 ... 250 V
Kategoria użytkowania
7
Voltage type (operating voltage)
AC
Number of contacts as normally open contact
1
Max. incandescent lamp load
2850 W
Max. load fluorescent lamp (Duo circuit)
2400 VA
Slider for hand switch
No
Additional equipment possible
Yes
Rated operation current
25 A
Rated excitation voltage
220 ... 240 V
Voltage type (excitation voltage)
AC
Number of contacts as normally closed contact
0
Max. load fluorescent lamp
1200 VA
Max. load fluorescent lamp (parallel compensated)
1200 VA
Built-in depth
43.5 mm
Degree of protection (IP)
IP20
Files to download
PEP ecopassport SCHN-00144-V02.01-EN_1.pdf
HD_EU declaration of conformity - Acti9 iCT - FD16022301C.pdf
