iCT50-63-30-230 modular contactor 63A 3NO 50Hz 220/240 VAC A9C20863
local index:
ATA206SCHN
Catalog No:
A9C20863
EAN code:
3606480375149
Manufacturer:
SCHNEIDER ELECTRIC
AC control voltage [V]: 220/240
Price:
108,33 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

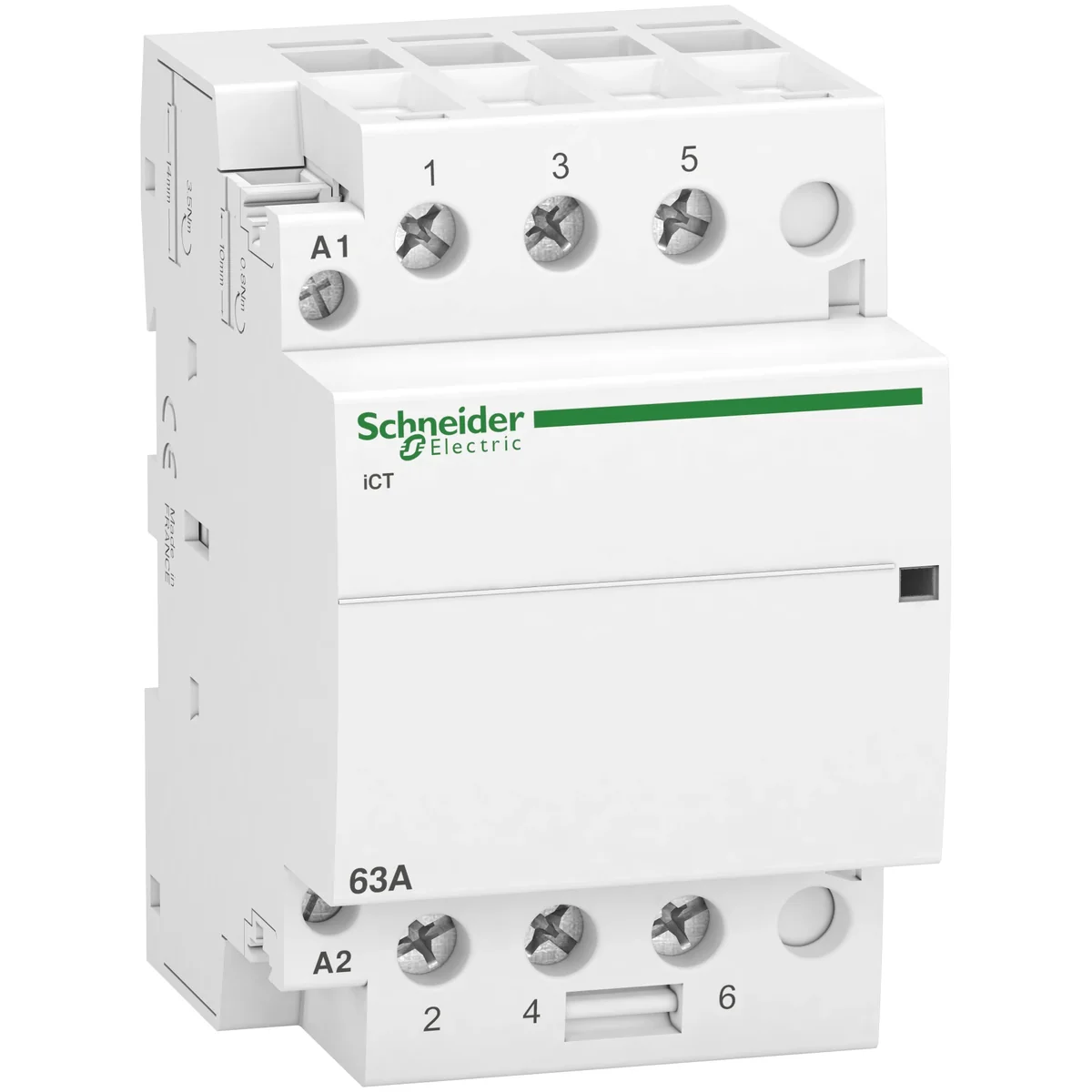

iCT50-63-30-230 modular contactor 63A 3NO 50Hz 220/240 VAC
Technical data
-
AC control voltage [V]220/240
-
PKWIU27.12.24.0
Other technical data
-
Rated operating voltage400 ... 400 V
-
Kategoria użytkowania7
-
Voltage type (operating voltage)AC
-
Number of contacts as normally open contact3
-
Max. incandescent lamp load15000 W
-
Max. load fluorescent lamp (Duo circuit)11800 VA
-
Slider for hand switchNo
-
Additional equipment possibleYes
-
Rated operation current63 A
-
Rated excitation voltage220 ... 240 V
-
Voltage type (excitation voltage)AC
-
Number of contacts as normally closed contact0
-
Max. load fluorescent lamp7700 VA
-
Max. load fluorescent lamp (parallel compensated)7000 VA
-
Built-in depth43.5 mm
-
Degree of protection (IP)IP20
