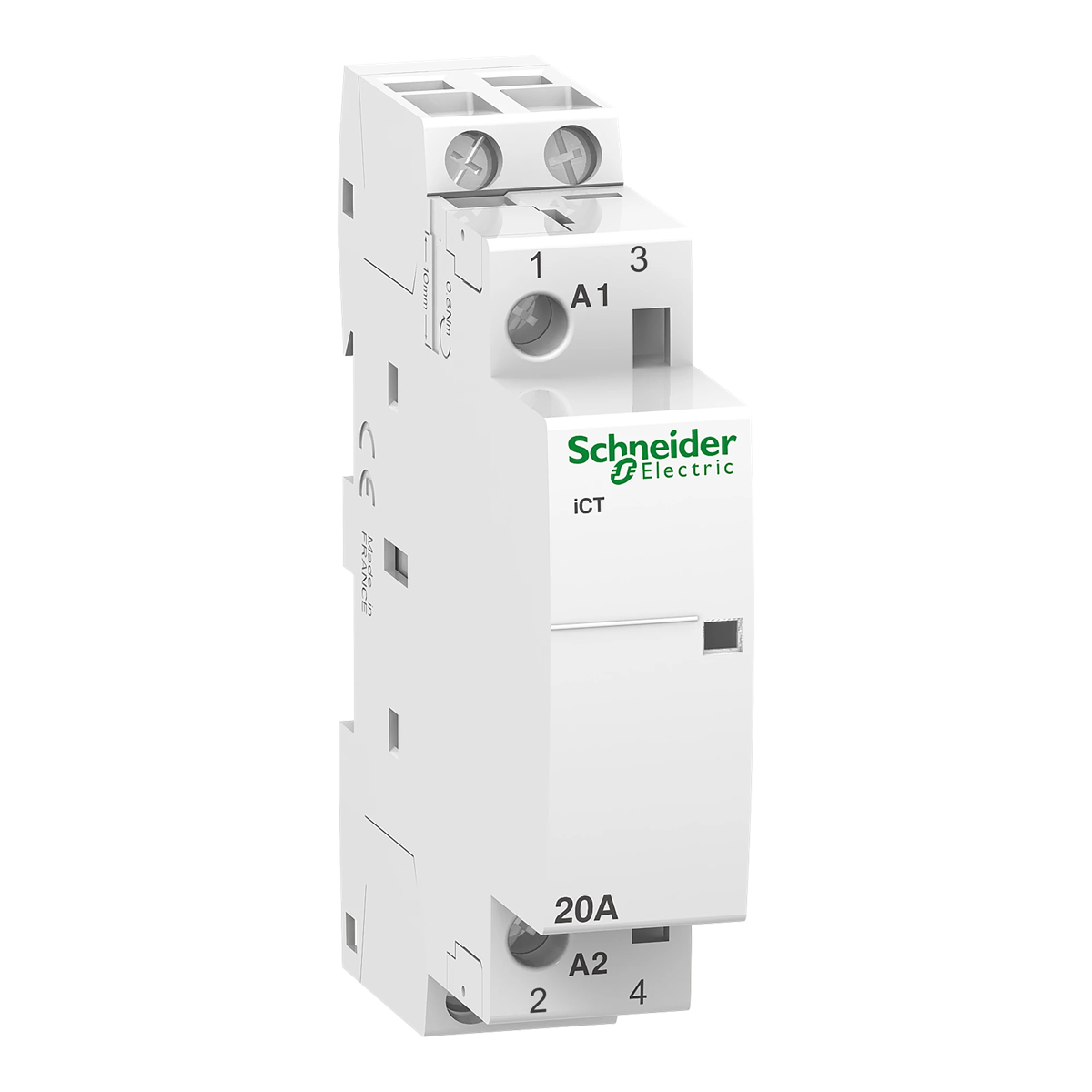

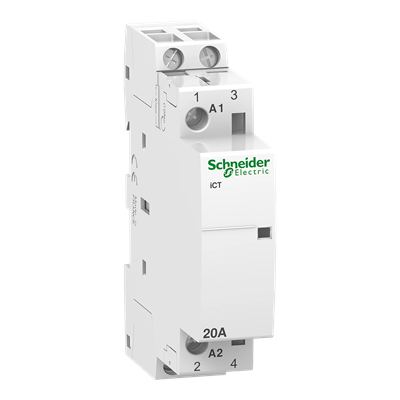

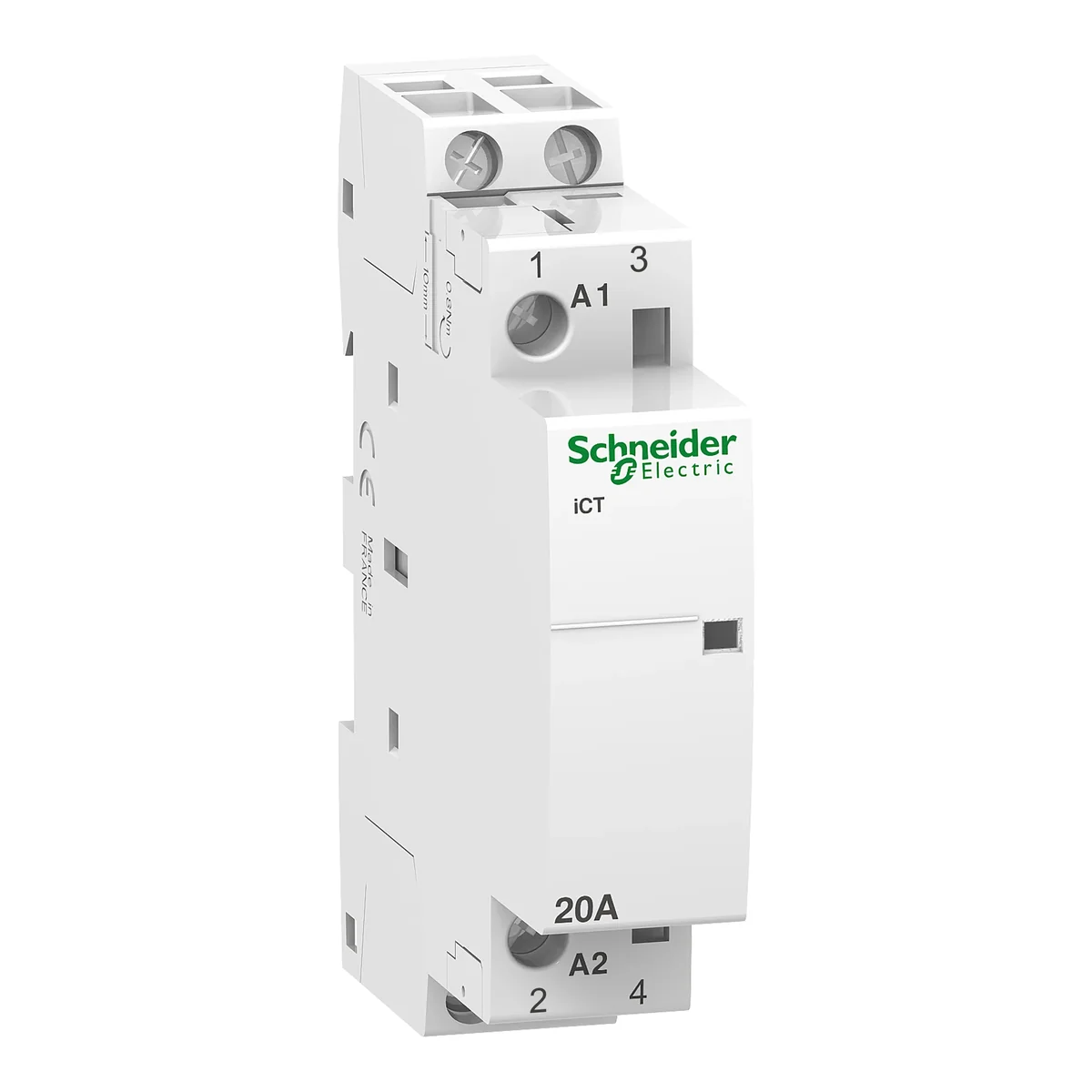

iCT50-20-20-230 modular contactor 20A 2NO 50Hz 230/240 VAC A9C22722

local index:
ATA066SCHN
Catalog No:
A9C22722
EAN code:
3606480097072
Manufacturer: SCHNEIDER ELECTRIC
AC control voltage [V]: 230/240
Price:
33,96 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

iCT50-20-20-230 modular contactor 20A 2NO 50Hz 230/240 VAC

Technical data

  • AC control voltage [V]
    230/240
  • PKWIU
    27.12.24.0

Other technical data

  • Rated operating voltage
    250 ... 250 V
  • Kategoria użytkowania
    7
  • Voltage type (operating voltage)
    AC
  • Number of contacts as normally open contact
    2
  • Slider for hand switch
    No
  • Additional equipment possible
    Yes
  • Rated operation current
    20 A
  • Rated excitation voltage
    230 ... 240 V
  • Voltage type (excitation voltage)
    AC
  • Number of contacts as normally closed contact
    0
  • Built-in depth
    43.5 mm
  • Degree of protection (IP)
    IP20
