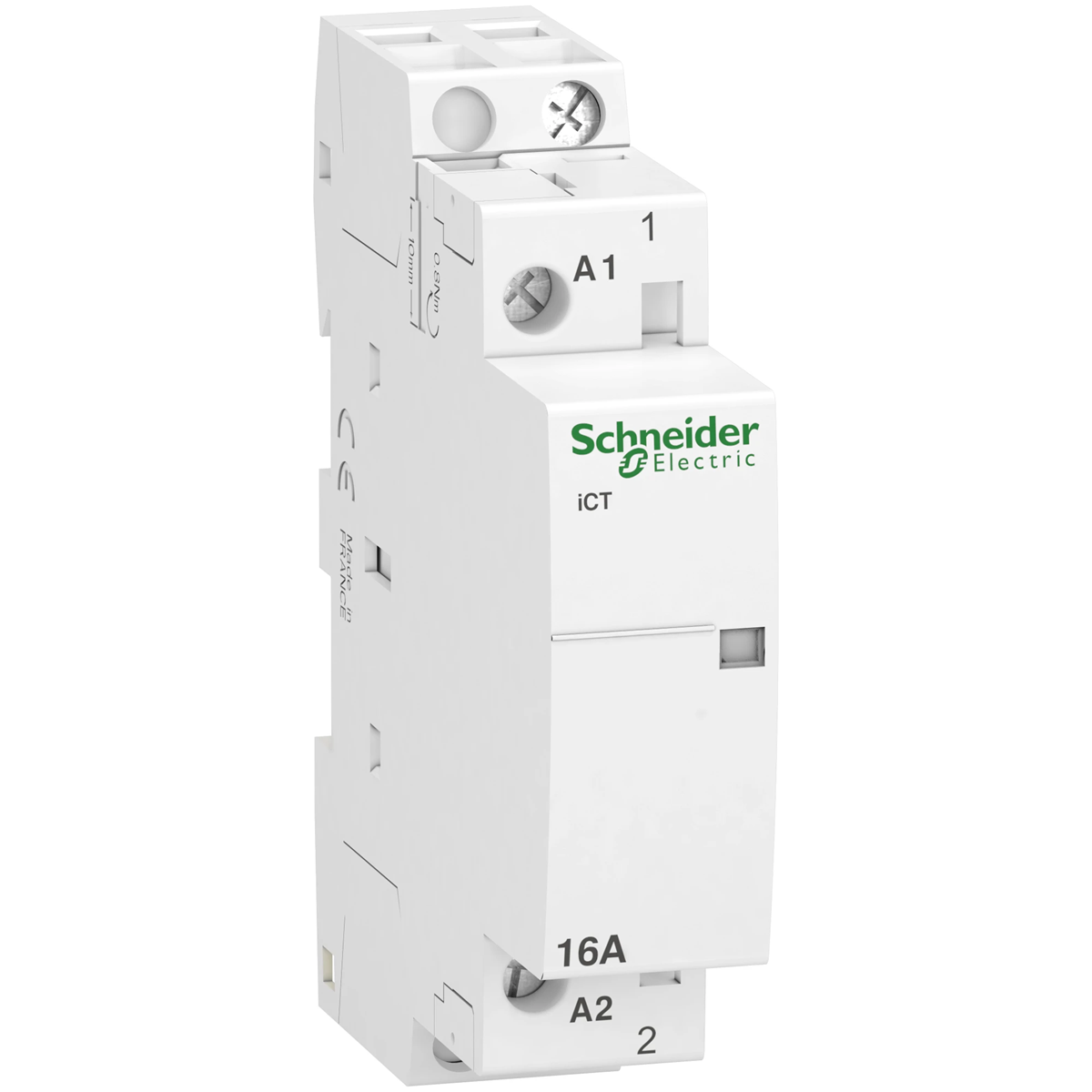

iCT50-16-10-230 modular contactor 16A 1NO 50Hz 230/240VAC A9C22711

Indice locale:
ATA029SCHN
Numero di catalogo:
A9C22711
Codice EAN:
3606480088643
AC control voltage [V]: 230/240
Prezzo:
126,92 zł
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
2 settimane
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

iCT50-16-10-230 modular contactor 16A 1NO 50Hz 230/240VAC

Dati tecnici

  • AC control voltage [V]
    230/240
  • PKWIU
    27.12.24.0

Altri dati tecnici

  • Rated operating voltage
    250 ... 250 V
  • Kategoria użytkowania
    7
  • Voltage type (operating voltage)
    AC
  • Number of contacts as normally open contact
    1
  • Max. incandescent lamp load
    2000 W
  • Max. load fluorescent lamp (Duo circuit)
    1500 VA
  • Slider for hand switch
    No
  • Additional equipment possible
    Yes
  • Rated operation current
    16 A
  • Rated excitation voltage
    230 ... 240 V
  • Voltage type (excitation voltage)
    AC
  • Number of contacts as normally closed contact
    0
  • Max. load fluorescent lamp
    850 VA
  • Max. load fluorescent lamp (parallel compensated)
    800 VA
  • Built-in depth
    43.5 mm
  • Degree of protection (IP)
    IP20

Dettagli del produttore

  • Produttore
    Schneider Electric Polska
  • Indirizzo
    02-673 Warszawa Konstruktorska 12 Polska
