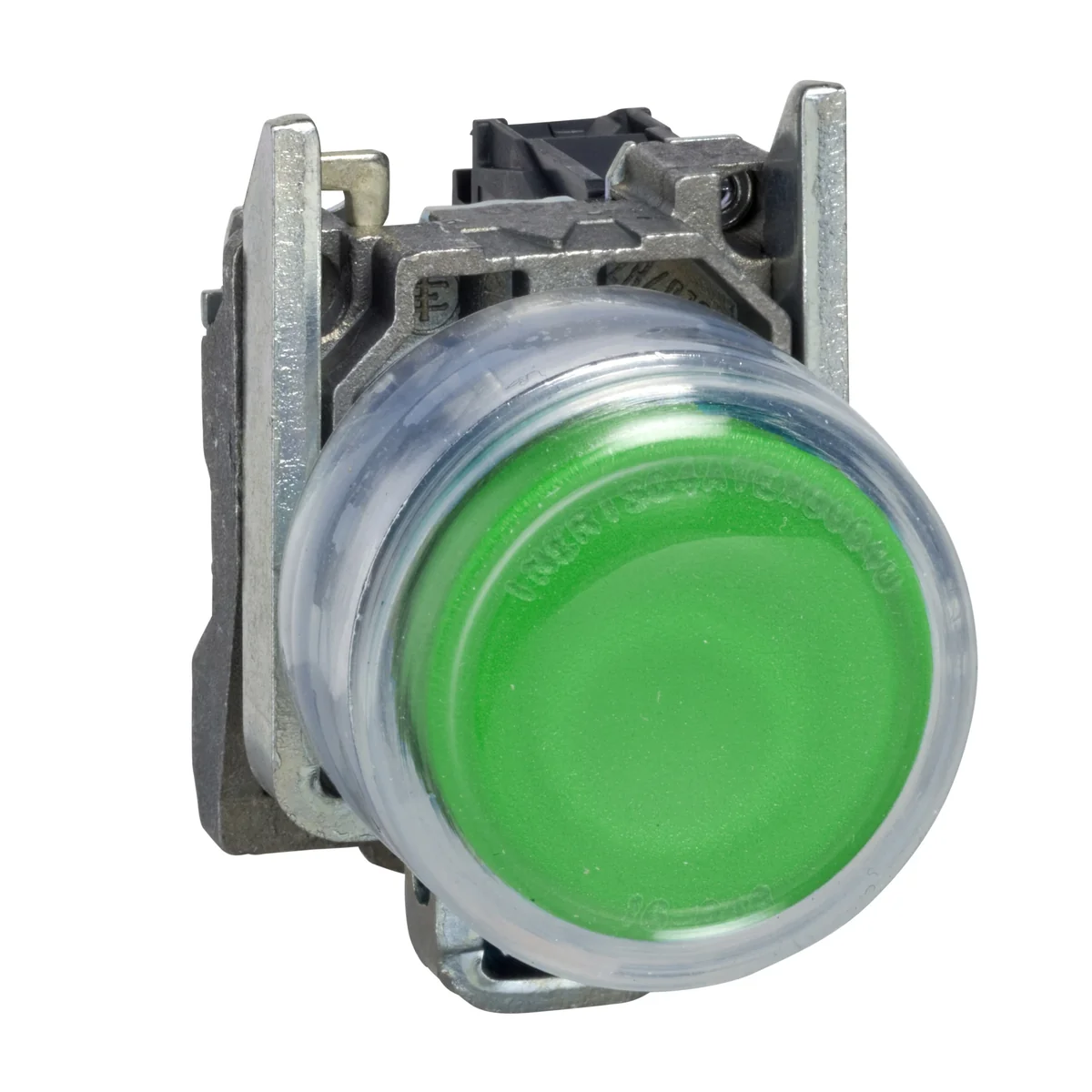

Hooded green metal button without backlight XB4BP31

local index:
AKS125SCHN
Catalog No:
XB4BP31
EAN code:
3389110887006
Manufacturer: SCHNEIDER ELECTRIC
Height [mm]: 47
Price:
34,28 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Hooded green metal button without backlight

Technical data

  • Height [mm]
    47
  • PKWIU
    27.11.61.0

Other technical data

  • Number of command positions
    1
  • Colour button
    Green
  • Hole diameter
    22.5 mm
  • Switching function latching
    No
  • Number of contacts as normally open contact
    1
  • Number of contacts as change-over contact
    0
  • With front ring
    Yes
  • Colour front ring
    Chrome
  • Degree of protection (NEMA)
    4X
  • Type of button
    High
  • Construction type lens
    Round
  • Suitable for illumination
    No
  • Spring-return
    Yes
  • Number of contacts as normally closed contact
    0
  • Type of electric connection
    Screw connection
  • Material front ring
    Metal
  • Degree of protection (IP)
    IP66
