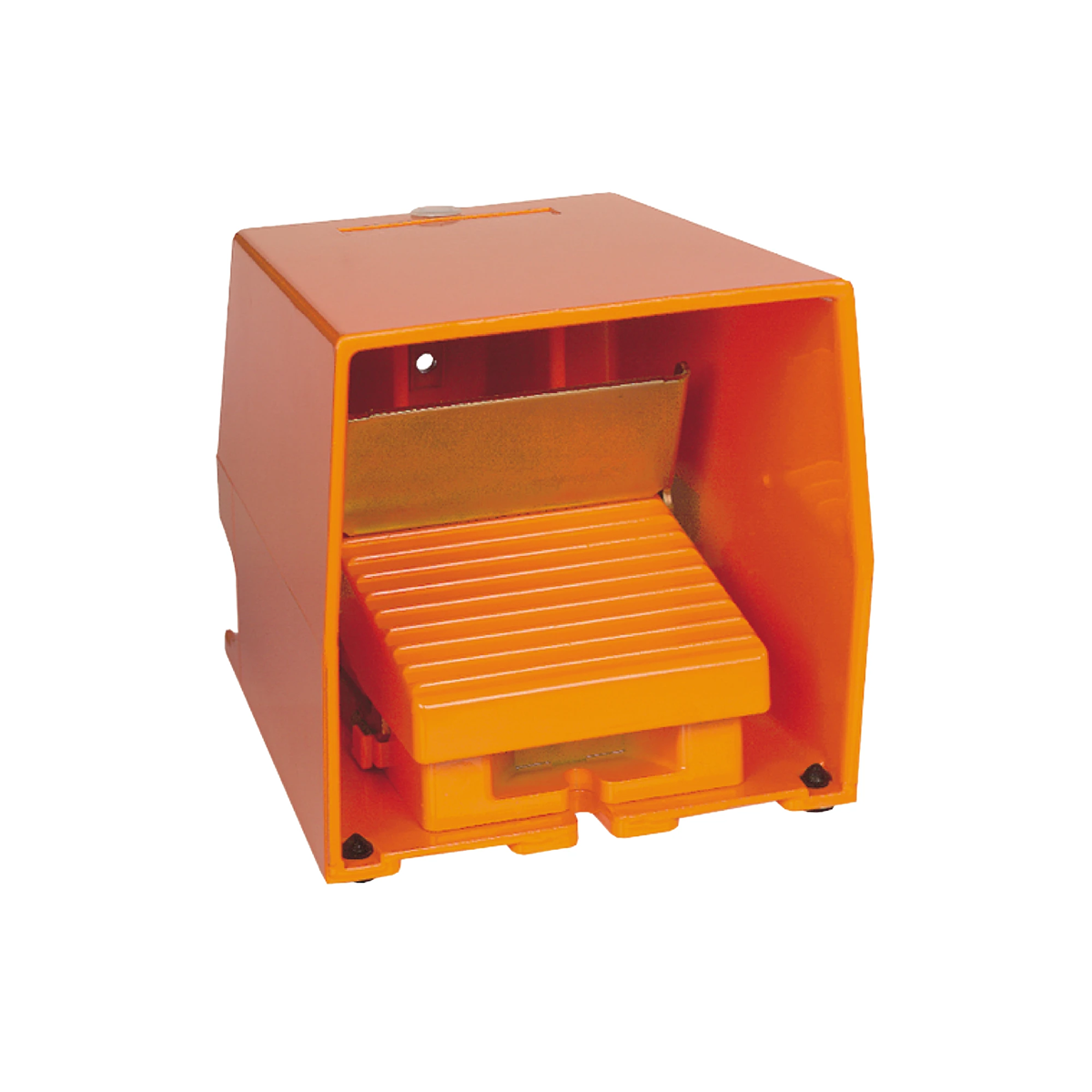

Harmony XPE Single foot switch with cover orange 2 NC+NO metal XPER511

local index:
AKO002SCHN
Catalog No:
XPER511
EAN code:
3389110470970
Manufacturer: SCHNEIDER ELECTRIC
Contact: 2NZ+2NO
Price:
479,13 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Harmony XPE Single foot switch with cover orange 2 NC+NO metal

Technical data

  • Contact
    2NZ+2NO
  • PKWIU
    27.11.61.0

Other technical data

  • Type of command
    On or off
  • With interlocking
    Yes
  • With protective insulation
    No
  • Number of contacts as normally closed contact
    2
  • Number of contacts as change-over contact
    0
  • Suitable for safety functions
    Yes
  • Degree of protection (IP)
    IP66
  • Width
    160 mm
  • Depth
    186 mm
  • With protection hood
    Yes
  • Material
    Metal
  • Colour
    Orange
  • Number of contacts as normally open contact
    2
  • Switching function latching
    No
  • Rated operation current Ie at AC-15, 230 V
    3 A
  • Degree of protection (NEMA)
    Other
  • Height
    135 mm
