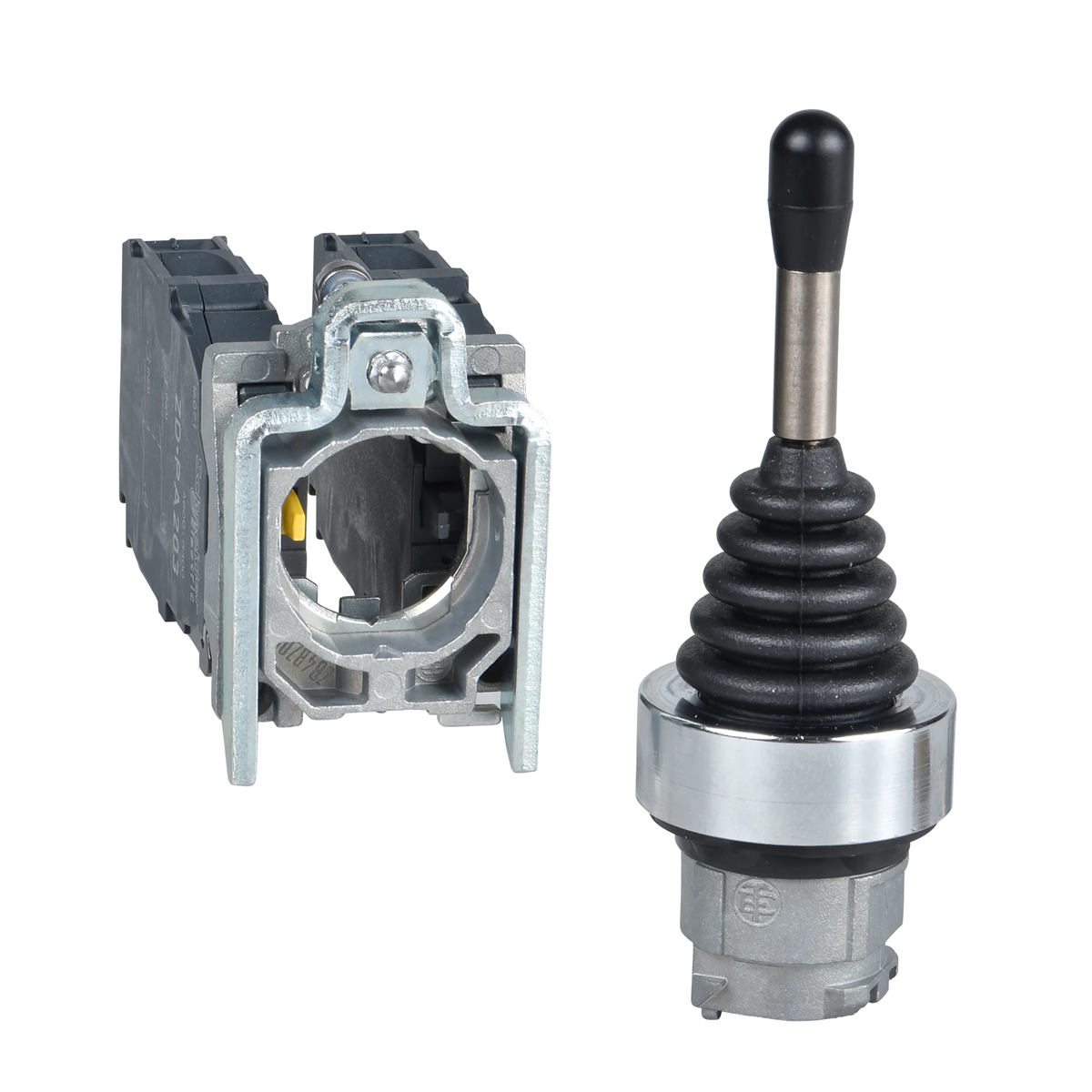

Harmony XB4 Four-way manipulator Stable 1 NO Metal XD4PA14

Index local:
AKS172SCHN
Numéro de catalogue:
XD4PA14
Code EAN:
3389110887426
Contact: 1NO
Short-circuit protection [A]: 10
Prix:
111,38 €
gross / pcs.
(y compris la TVA 23%)
Livraison en 3h
jusqu'à 4 semaines (jours ouvrables)
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

Harmony XB4 Four-way manipulator Stable 1 NO Metal

Données techniques

  • Contact
    1NO
  • PKWIU
    27.11.61.0
  • Short-circuit protection [A]
    10

Autres données techniques

  • Rated operation current Ie at AC-21, 400 V
    10 A
  • Joy stick length
    54 mm
  • Number of normally open contacts per actuation direction
    1
  • Number of make-and-break contacts per direction
    0
  • Locking in 0-position
    No
  • Analogue output signal configurable
    No
  • Material front ring
    Metal
  • Degree of protection (IP)
    IP66
  • Centre mounting, hole diameter
    22 mm
  • Number of actuation directions
    4
  • Number of normally closed contacts per actuation direction
    0
  • With retraction in 0-position
    No
  • Coder
    No
  • With front ring
    Yes
  • Colour front ring
    Chrome
  • Degree of protection (NEMA)
    Other

Détails du fabricant

  • Producteur
    Schneider Electric Polska
  • Adresse
    02-673 Warszawa Konstruktorska 12 Polska
