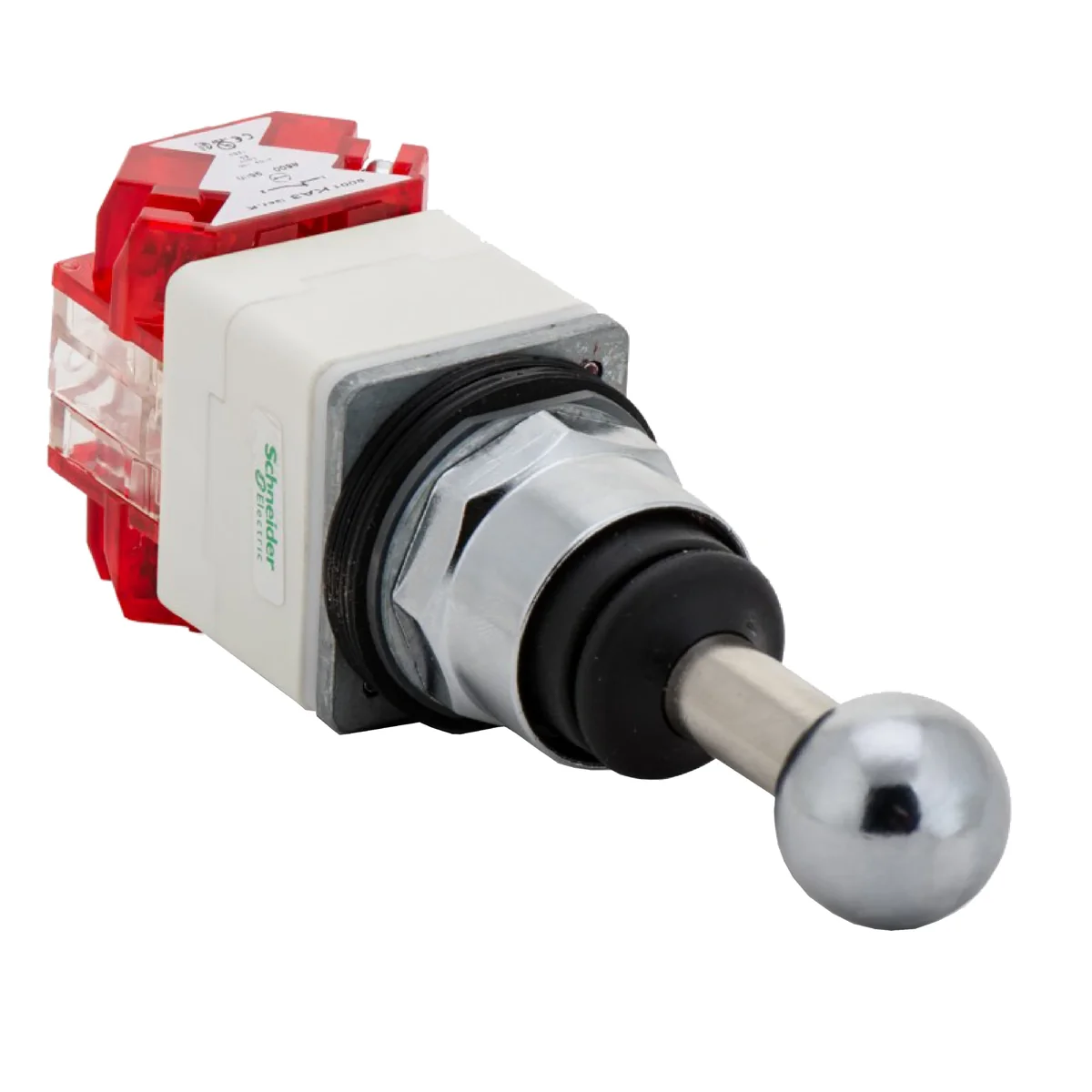

Harmony 9001K Joystick 3 position Ø30 2N/O 9001K71H7

local index:
AKS221SCHN
Catalog No:
9001K71H7
EAN code:
3389110915327
Manufacturer: SCHNEIDER ELECTRIC
Contact: 2NO
Short-circuit protection [A]: 10
Price:
233,60 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Harmony 9001K Joystick 3 position Ø30 2N/O

Technical data

  • Contact
    2NO
  • PKWIU
    27.11.61.0
  • Short-circuit protection [A]
    10

Other technical data

  • Rated operation current Ie at AC-21, 400 V
    10 A
  • Joy stick length
    80 mm
  • Number of normally open contacts per actuation direction
    2
  • Number of make-and-break contacts per direction
    2
  • Locking in 0-position
    No
  • Analogue output signal configurable
    No
  • Material front ring
    Metal
  • Degree of protection (IP)
    IP66
  • Centre mounting, hole diameter
    31 mm
  • Number of actuation directions
    2
  • Number of normally closed contacts per actuation direction
    0
  • With retraction in 0-position
    Yes
  • Coder
    No
  • With front ring
    Yes
  • Colour front ring
    Chrome
  • Degree of protection (NEMA)
    13
