Electrical apparatus
Motor circuit breakers
Motor circuit breakers for rail mounting

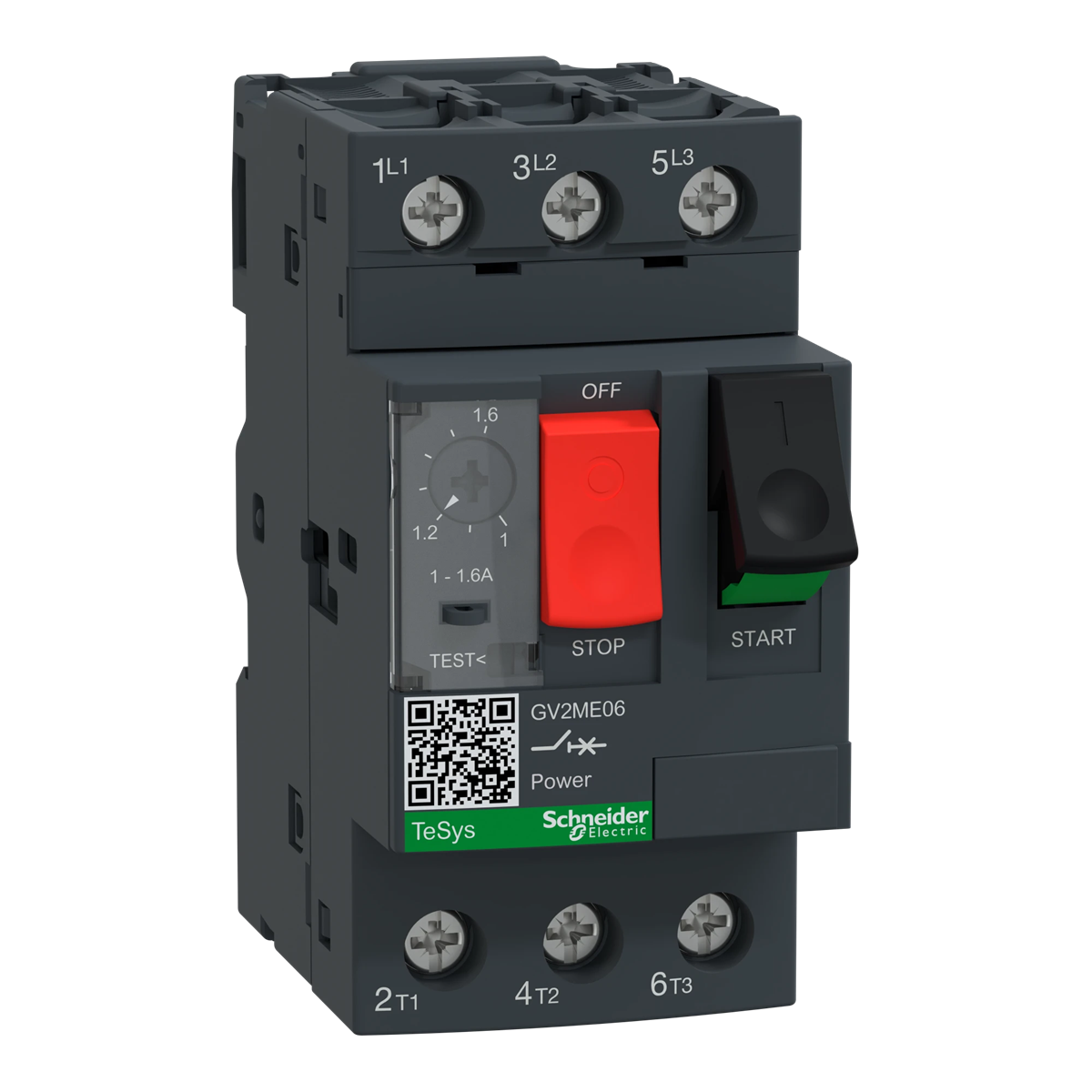

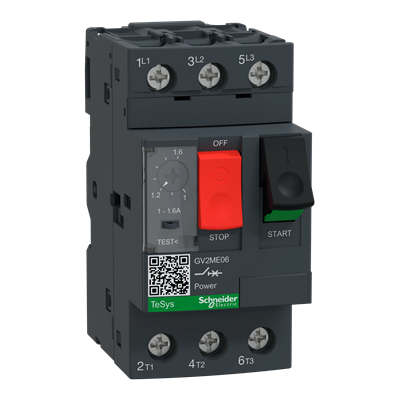

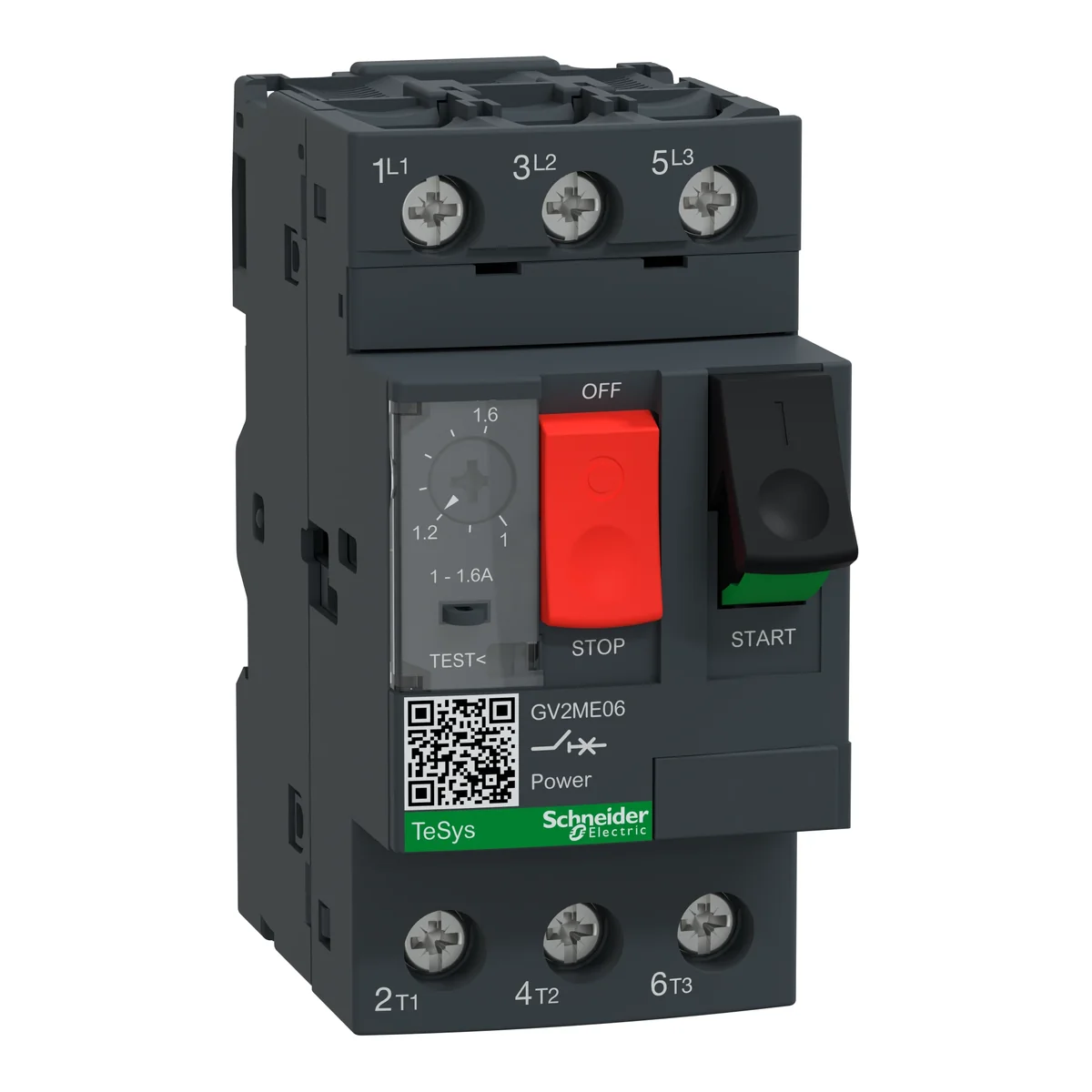

GV2ME motor switch with push button drive 1.0-1.6A PL GV2ME06AP
local index:
ASN077SCHN
Catalog No:
GV2ME06AP
EAN code:
3606489607647
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
Depth [mm]:
78.5
Number of poles:
3
Fixing:
screw terminals
See full description
Price:
47,00 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 3 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description
GV2ME motor circuit breaker with push button drive 1.0-1.6A PL box terminals
Technical data
Depth [mm]
78.5
Fixing
screw terminals
Installation
On the TH-35 rail
Magnetic tripping current [A]
22.5
Type of voltage
AC
Level of security
IP20
ambient temperature [°C]
from -20 to 60
Height [mm]
89
Mechanical durability (number of cycles)
100000
Rated switching voltage [V]
690
Rated thermal current [A]
1.6
Trigger technology
Thermomagnetic
Fire resistance [°C]
960
PKWIU
27.12.22.0
Number of poles
3
Tightening torque [Nm]
1.7
Rated insulation voltage [V]
690
Rated current [A]
1.6
Family
TeSys
Width [mm]
45
Operating mode
Continuous
Electrical endurance (number of cycles)
100000
Breaking capacity [kA]
100
Rated impulse voltage [kV]
6
Degree of mechanical protection
IK04
Power loss per pole [W]
2.5
Overload release setting range [A]
1-1.6
Other technical data
Overload release current setting
1 ... 1.6 A
With thermal overload protection
Yes
Switch off technique
Thermomagnetic
Rated permanent current Iu
1.6 A
Rated operation power at AC-3, 400 V
0.55 kW
Type of control element
Push button
With integrated auxiliary switch
No
Number of poles
3
Degree of protection (IP)
IP20
Width
45 mm
Adjustment range undelayed short-circuit release
22.5 ... 22.5 A
Phase failure sensitive
Yes
Rated operating voltage
230 ... 690 V
Rated operation power at AC-3, 230 V
0.25 kW
Type of electrical connection of main circuit
Screw connection
Device construction
Complete device in housing
With integrated under voltage release
No
Rated short-circuit breaking capacity lcu at 400 V, AC
100 kA
Height
89 mm
Depth
78.2 mm
Files to download
1645883_01A50-09.pdf
