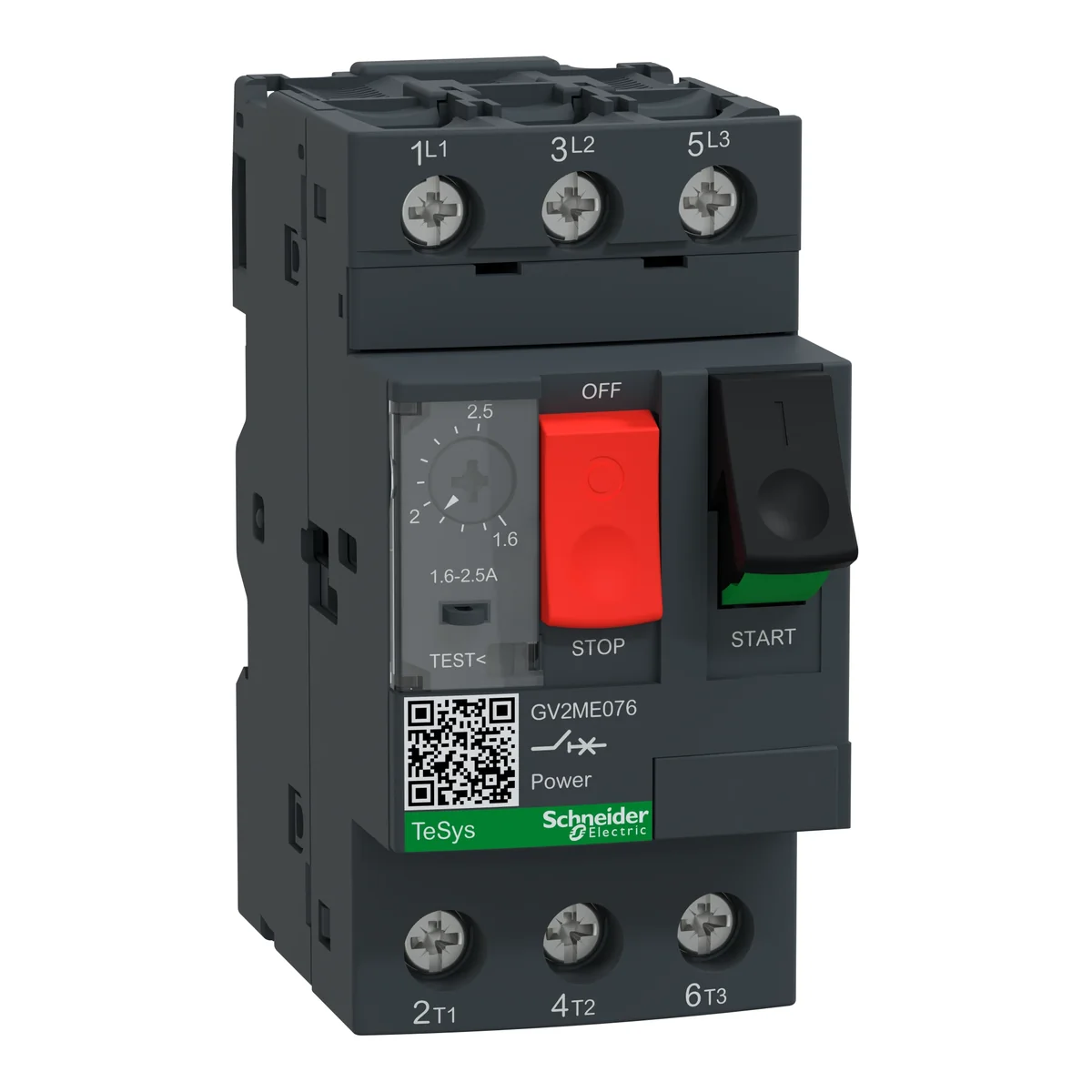

GV2ME motor switch, push-button drive, 1.6-2.5A, screw terminals GV2ME076
local index:
ASN064SCHN
Catalog number:
GV2ME076
EAN code:
3389110608496
Manufacturer:
SCHNEIDER ELECTRIC
Price:
382,76 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Technical data
Other technical data
-
Overload release current setting1.6 ... 2.5 A
-
With thermal overload protectionYes
-
Switch off techniqueThermomagnetic
-
Rated permanent current Iu2.5 A
-
Rated operation power at AC-3, 400 V0.75 kW
-
Type of control elementPush button
-
With integrated auxiliary switchNo
-
Number of poles3
-
Degree of protection (IP)IP20
-
Width45 mm
-
Adjustment range undelayed short-circuit release33.5 ... 33.5 A
-
Phase failure sensitiveYes
-
Rated operating voltage690 ... 690 V
-
Rated operation power at AC-3, 230 V0.37 kW
-
Type of electrical connection of main circuitOther
-
Device constructionComplete device in housing
-
With integrated under voltage releaseNo
-
Rated short-circuit breaking capacity lcu at 400 V, AC100 kA
-
Height89 mm
-
Depth78.2 mm
