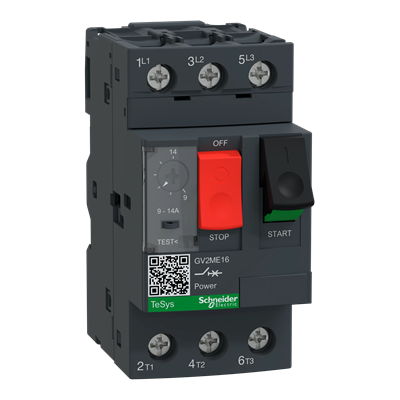

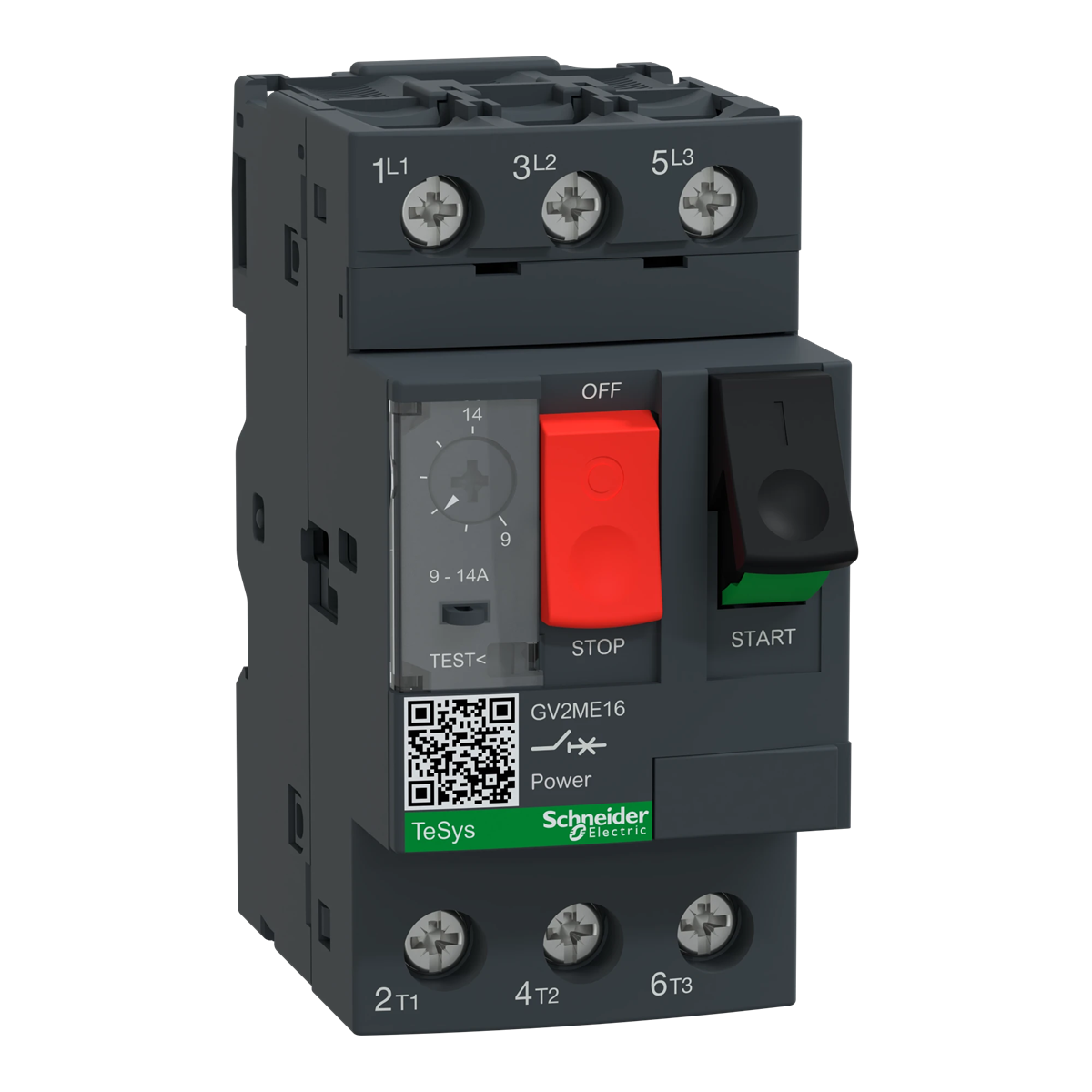

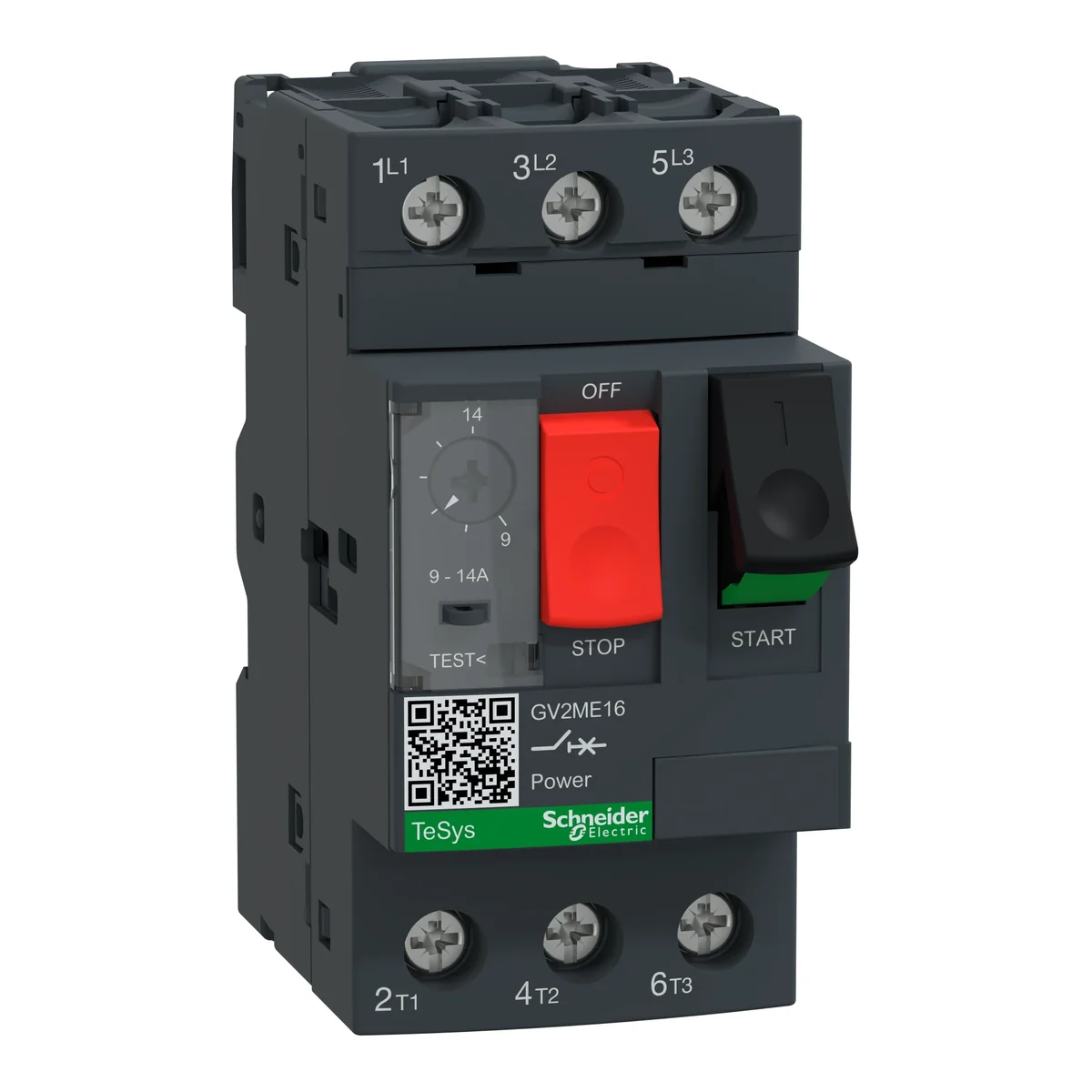

GV2ME motor circuit breaker with push button drive 9-14A PL GV2ME16AP
Lokaler Index:
ASN082SCHN
Katalognummer:
GV2ME16AP
EAN-Code:
3606489607692
Preis:
233,45 zł
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung
GV2ME motor circuit breaker with push button operating mechanism 9-14A PL box terminals
Technische Daten
-
Depth [mm]78.5
-
Fixingscrew terminals
-
InstallationOn the TH-35 rail
-
Magnetic tripping current [A]170
-
Type of voltageAC
-
Level of securityIP20
-
ambient temperature [°C]from -20 to 60
-
Height [mm]89
-
Mechanical durability (number of cycles)100000
-
Rated switching voltage [V]690
-
Rated thermal current [A]14
-
Trigger technologyThermomagnetic
-
Fire resistance [°C]960
-
PKWIU27.12.22.0
-
Number of poles3
-
Tightening torque [Nm]1.7
-
Rated insulation voltage [V]690
-
Rated current [A]14
-
FamilyTeSys
-
Width [mm]45
-
Operating modeContinuous
-
Electrical endurance (number of cycles)100000
-
Breaking capacity [kA]100
-
Rated impulse voltage [kV]6
-
Degree of mechanical protectionIK04
-
Power loss per pole [W]2.5
-
Overload release setting range [A]9-14
Weitere technische Daten
-
Overload release current setting9 ... 14 A
-
With thermal overload protectionYes
-
Switch off techniqueThermomagnetic
-
Rated permanent current Iu14 A
-
Rated operation power at AC-3, 400 V5.5 kW
-
Type of control elementPush button
-
With integrated auxiliary switchNo
-
Number of poles3
-
Degree of protection (IP)IP20
-
Width45 mm
-
Adjustment range undelayed short-circuit release170 ... 170 A
-
Phase failure sensitiveYes
-
Rated operating voltage230 ... 690 V
-
Rated operation power at AC-3, 230 V3 kW
-
Type of electrical connection of main circuitScrew connection
-
Device constructionComplete device in housing
-
With integrated under voltage releaseNo
-
Rated short-circuit breaking capacity lcu at 400 V, AC15 kA
-
Height89 mm
-
Depth78.2 mm
Hersteller-Details
-
HerstellerSchneider Electric Polska
-
Adresse02-673 Warszawa Konstruktorska 12 Polska
-
