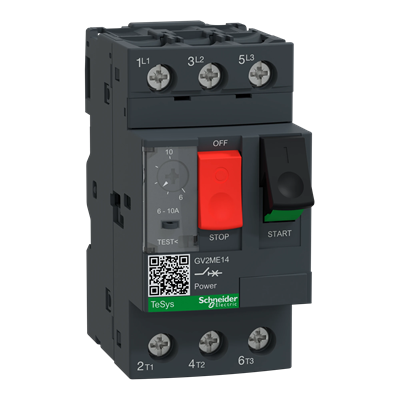

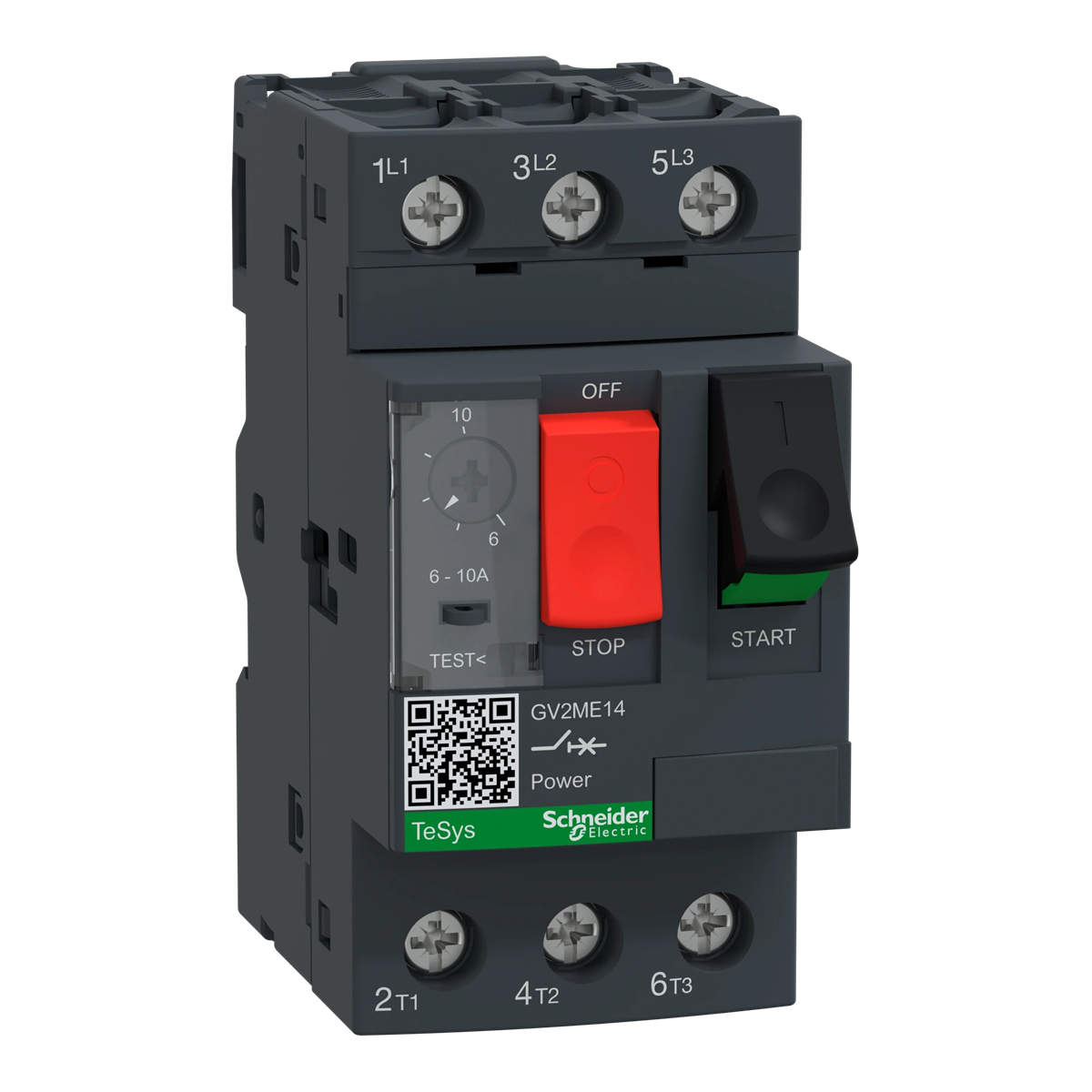

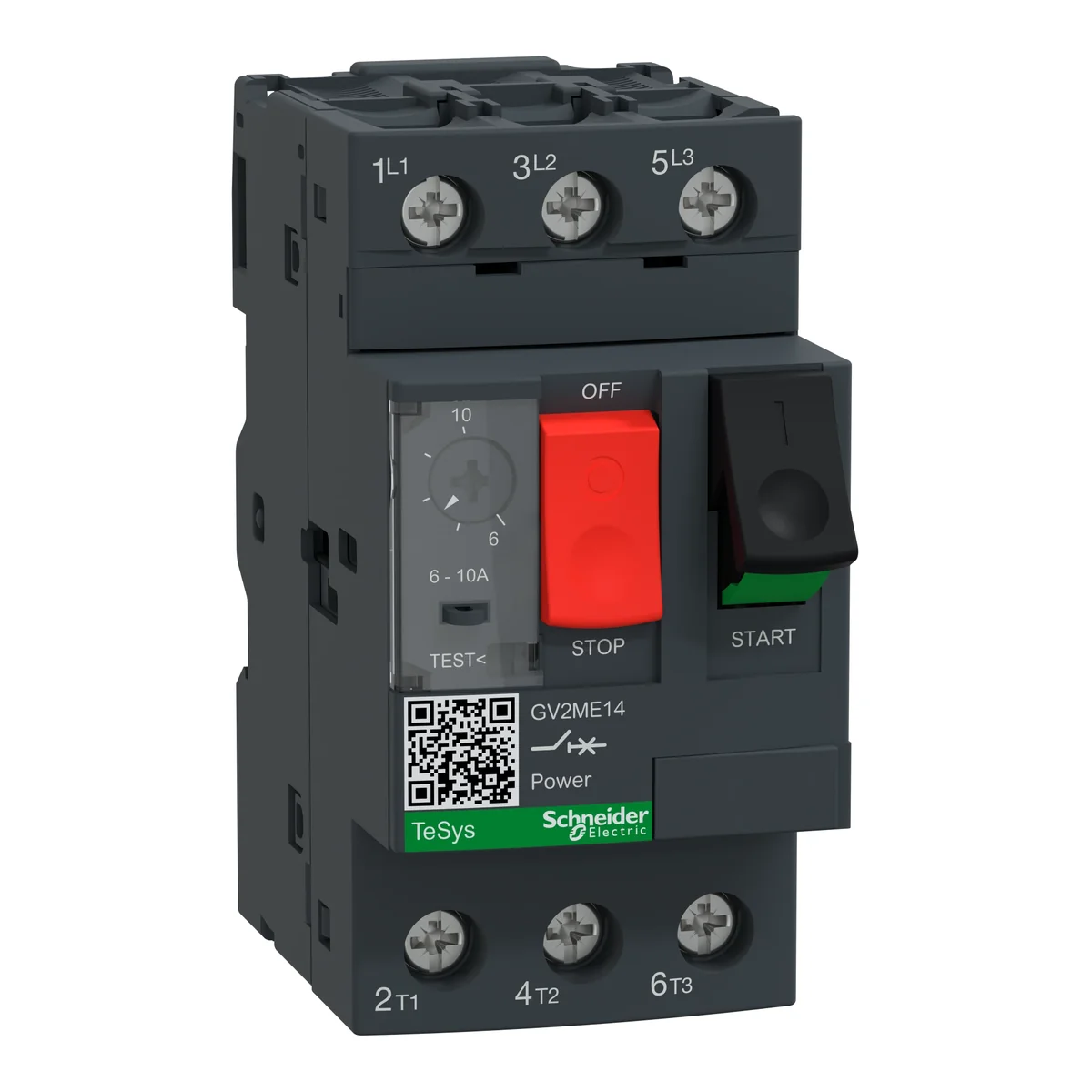

GV2ME motor circuit breaker with push button drive 6-10A PL GV2ME14AP

local index:
ASN081SCHN
Catalog No:
GV2ME14AP
EAN code:
3606489607685
Manufacturer: SCHNEIDER ELECTRIC
Depth [mm]: 78.5
Number of poles: 3
Fixing: screw terminals
Price:
55,19 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 2 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

GV2ME motor circuit breaker with push button actuator 6-10A PL box terminals

Technical data

  • Depth [mm]
    78.5
  • Fixing
    screw terminals
  • Installation
    On the TH-35 rail
  • Magnetic tripping current [A]
    138
  • Type of voltage
    AC
  • Level of security
    IP20
  • ambient temperature [°C]
    from -20 to 60
  • Height [mm]
    89
  • Mechanical durability (number of cycles)
    100000
  • Rated switching voltage [V]
    690
  • Rated thermal current [A]
    10
  • Trigger technology
    Thermomagnetic
  • Fire resistance [°C]
    960
  • PKWIU
    27.12.22.0
  • Number of poles
    3
  • Tightening torque [Nm]
    1.7
  • Rated insulation voltage [V]
    690
  • Rated current [A]
    10
  • Family
    TeSys
  • Width [mm]
    45
  • Operating mode
    Continuous
  • Electrical endurance (number of cycles)
    100000
  • Breaking capacity [kA]
    100
  • Rated impulse voltage [kV]
    6
  • Degree of mechanical protection
    IK04
  • Power loss per pole [W]
    2.5
  • Overload release setting range [A]
    6:3-10

Other technical data

  • Overload release current setting
    6 ... 10 A
  • With thermal overload protection
    Yes
  • Switch off technique
    Thermomagnetic
  • Rated permanent current Iu
    10 A
  • Rated operation power at AC-3, 400 V
    4 kW
  • Type of control element
    Push button
  • With integrated auxiliary switch
    No
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
  • Width
    45 mm
  • Adjustment range undelayed short-circuit release
    138 ... 138 A
  • Phase failure sensitive
    Yes
  • Rated operating voltage
    230 ... 690 V
  • Rated operation power at AC-3, 230 V
    2.2 kW
  • Type of electrical connection of main circuit
    Screw connection
  • Device construction
    Complete device in housing
  • With integrated under voltage release
    No
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    100 kA
  • Height
    89 mm
  • Depth
    78.2 mm
