GV2ME motor circuit breaker with push button drive 4.0-6.3A PL GV2ME10AP

Name: GV2ME motor circuit breaker with push button drive 4.0-6.3A PL
Brand: SCHNEIDER ELECTRIC
SKU: ASN080SCHN
Price: 55.10 PLN
Availability: InStock

Indice locale:

ASN080SCHN

Numero di catalogo:

GV2ME10AP

Codice EAN:

3606489607678

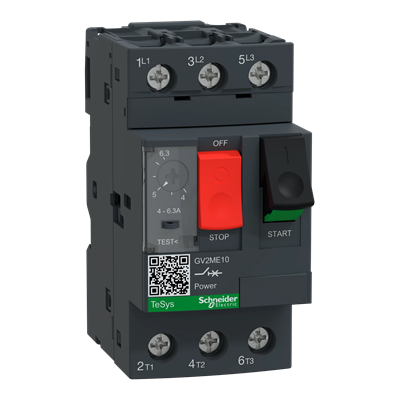

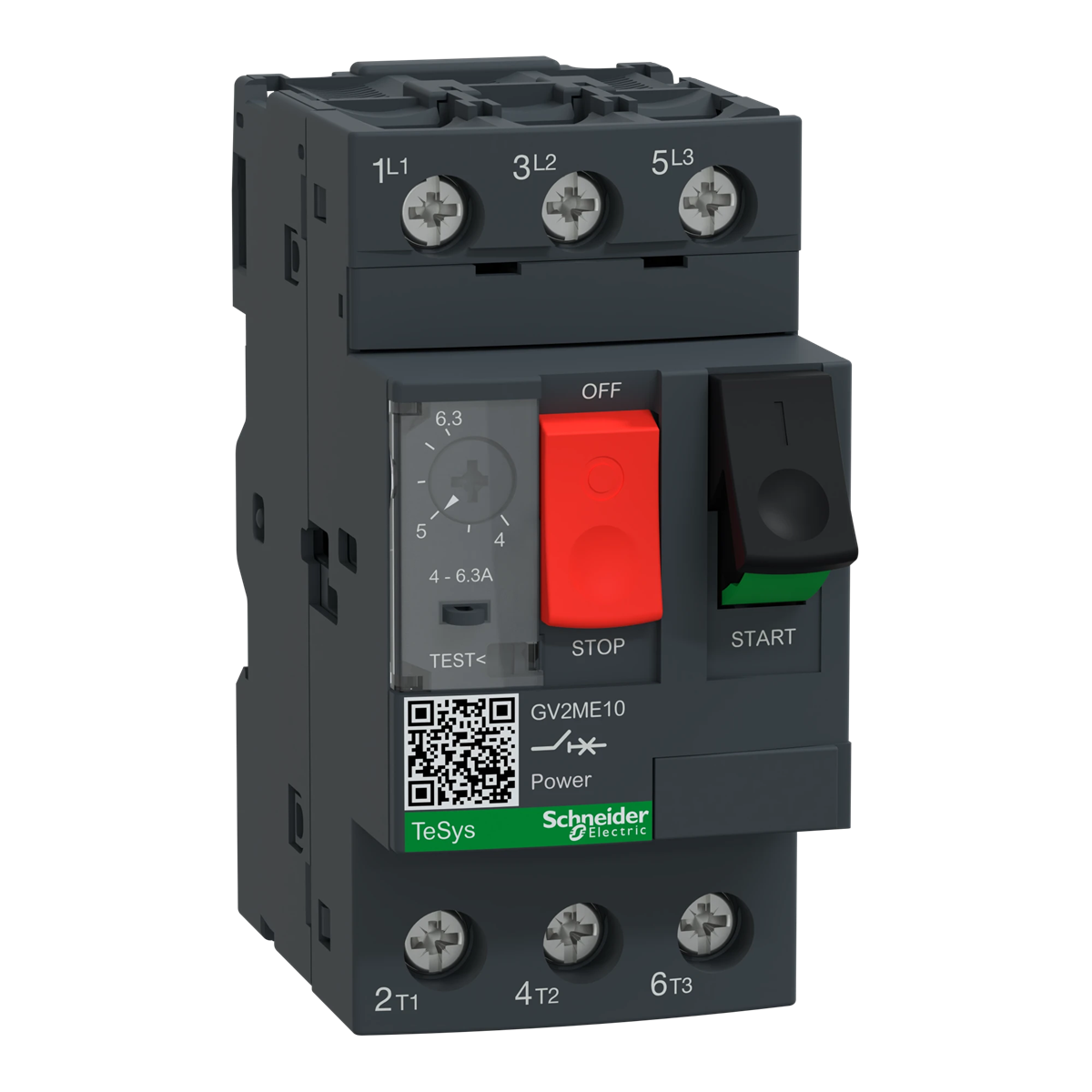

GV2ME motor circuit breaker with push button drive 4.0-6.3A PL

Clicca sulla foto per ingrandire

Produttore: SCHNEIDER ELECTRIC

Depth [mm]: 78.5

Number of poles: 3

Fixing: screw terminals

Vedi la descrizione completa

Prezzo:

55,10 €

gross / pezzi

(inclusa IVA 23%)

Accessibile 1 pezzi

Quantità pezzi

(multiplo:

1

)

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore

Descrizione del prodotto

GV2ME motor circuit breaker with push button drive 4.0-6.3A PL box terminals

Dati tecnici

Depth [mm]

78.5
Fixing

screw terminals
Installation

On the TH-35 rail
Magnetic tripping current [A]

78
Type of voltage

AC
Level of security

IP20
ambient temperature [°C]

from -20 to 60
Height [mm]

89
Mechanical durability (number of cycles)

100000
Rated switching voltage [V]

690
Rated thermal current [A]

6.3
Trigger technology

Thermomagnetic
Fire resistance [°C]

960
PKWIU

27.12.22.0

Number of poles

3
Tightening torque [Nm]

1.7
Rated insulation voltage [V]

690
Rated current [A]

6.3
Family

TeSys
Width [mm]

45
Operating mode

Continuous
Electrical endurance (number of cycles)

100000
Breaking capacity [kA]

100
Rated impulse voltage [kV]

6
Degree of mechanical protection

IK04
Power loss per pole [W]

2.5
Overload release setting range [A]

4-6.3

Altri dati tecnici

Overload release current setting

4 ... 6.3 A
With thermal overload protection

Yes
Switch off technique

Thermomagnetic
Rated permanent current Iu

6.3 A
Rated operation power at AC-3, 400 V

2.2 kW
Type of control element

Push button
With integrated auxiliary switch

No
Number of poles

3
Degree of protection (IP)

IP20
Width

45 mm

Adjustment range undelayed short-circuit release

78 ... 78 A
Phase failure sensitive

Yes
Rated operating voltage

230 ... 690 V
Rated operation power at AC-3, 230 V

1.1 kW
Type of electrical connection of main circuit

Screw connection
Device construction

Complete device in housing
With integrated under voltage release

No
Rated short-circuit breaking capacity lcu at 400 V, AC

100 kA
Height

89 mm
Depth

78.2 mm
