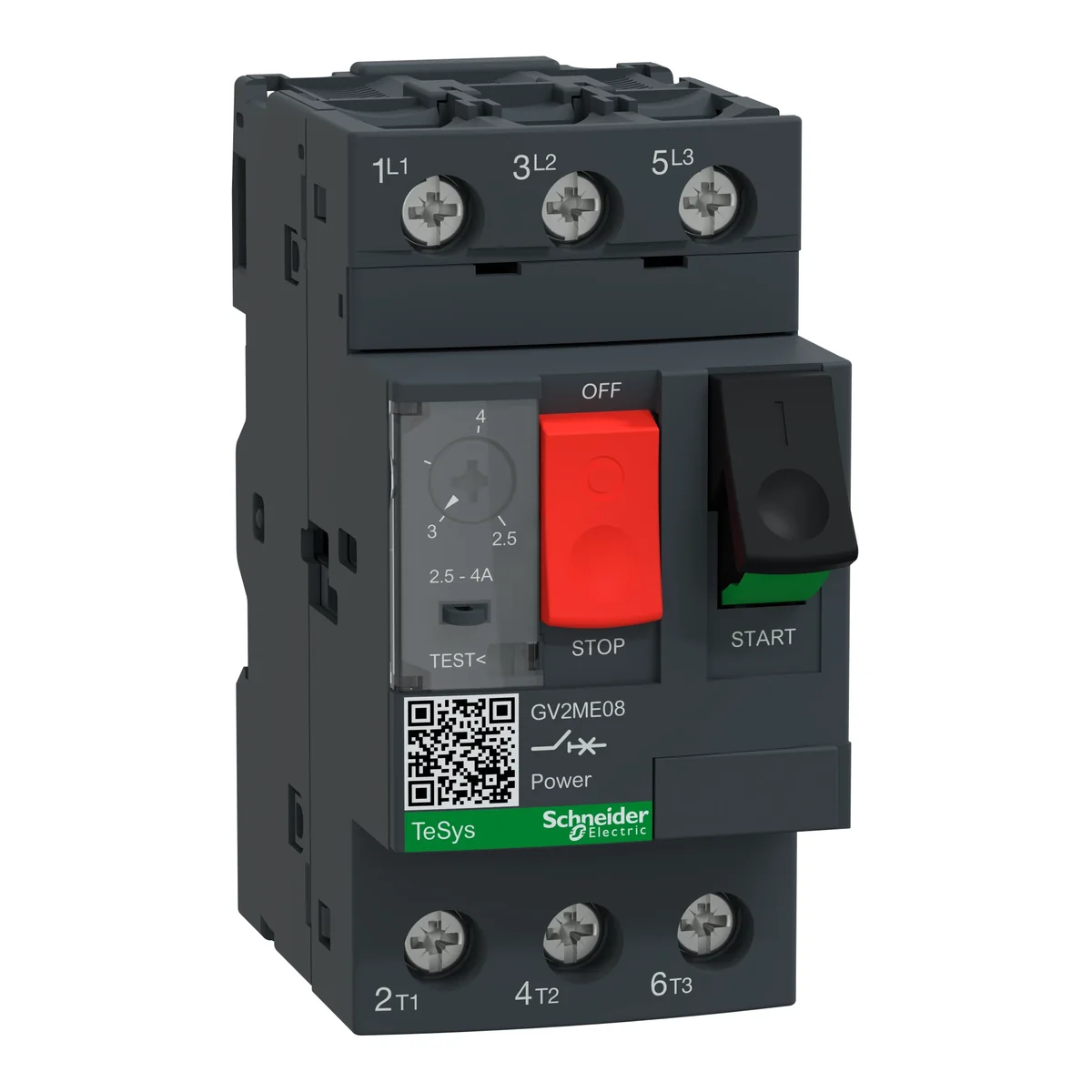

GV2ME motor circuit breaker with push button drive 2.5-4.0A PL GV2ME08AP
local index:
ASN079SCHN
Catalog No:
GV2ME08AP
EAN code:
3606489607661
Price:
47,98 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
GV2ME motor circuit breaker with push button drive 2.5-4.0A PL box terminals
Technical data
-
Depth [mm]78.5
-
Fixingscrew terminals
-
InstallationOn the TH-35 rail
-
Magnetic tripping current [A]51
-
Type of voltageAC
-
Level of securityIP20
-
ambient temperature [°C]from -20 to 60
-
Height [mm]89
-
Mechanical durability (number of cycles)100000
-
Rated switching voltage [V]690
-
Rated thermal current [A]4
-
Trigger technologyThermomagnetic
-
Fire resistance [°C]960
-
PKWIU27.12.22.0
-
Number of poles3
-
Tightening torque [Nm]1.7
-
Rated insulation voltage [V]690
-
Rated current [A]4
-
FamilyTeSys
-
Width [mm]45
-
Operating modeContinuous
-
Electrical endurance (number of cycles)100000
-
Breaking capacity [kA]100
-
Rated impulse voltage [kV]6
-
Degree of mechanical protectionIK04
-
Power loss per pole [W]2.5
-
Overload release setting range [A]2.5-4
Other technical data
-
Overload release current setting2.5 ... 4 A
-
With thermal overload protectionYes
-
Switch off techniqueThermomagnetic
-
Rated permanent current Iu4 A
-
Rated operation power at AC-3, 400 V1.5 kW
-
Type of control elementPush button
-
With integrated auxiliary switchNo
-
Number of poles3
-
Degree of protection (IP)IP20
-
Width45 mm
-
Adjustment range undelayed short-circuit release51 ... 51 A
-
Phase failure sensitiveYes
-
Rated operating voltage230 ... 690 V
-
Rated operation power at AC-3, 230 V0.75 kW
-
Type of electrical connection of main circuitScrew connection
-
Device constructionComplete device in housing
-
With integrated under voltage releaseNo
-
Rated short-circuit breaking capacity lcu at 400 V, AC100 kA
-
Height89 mm
-
Depth78.2 mm
Manufacturer details
-
ManufacturerSchneider Electric Polska Sp. z o.o.
-
Address02-673 Warszawa ul. Konstruktorska 12
-
Phone number
-
Tax identification number5220011965
-
GLN5900009931556
