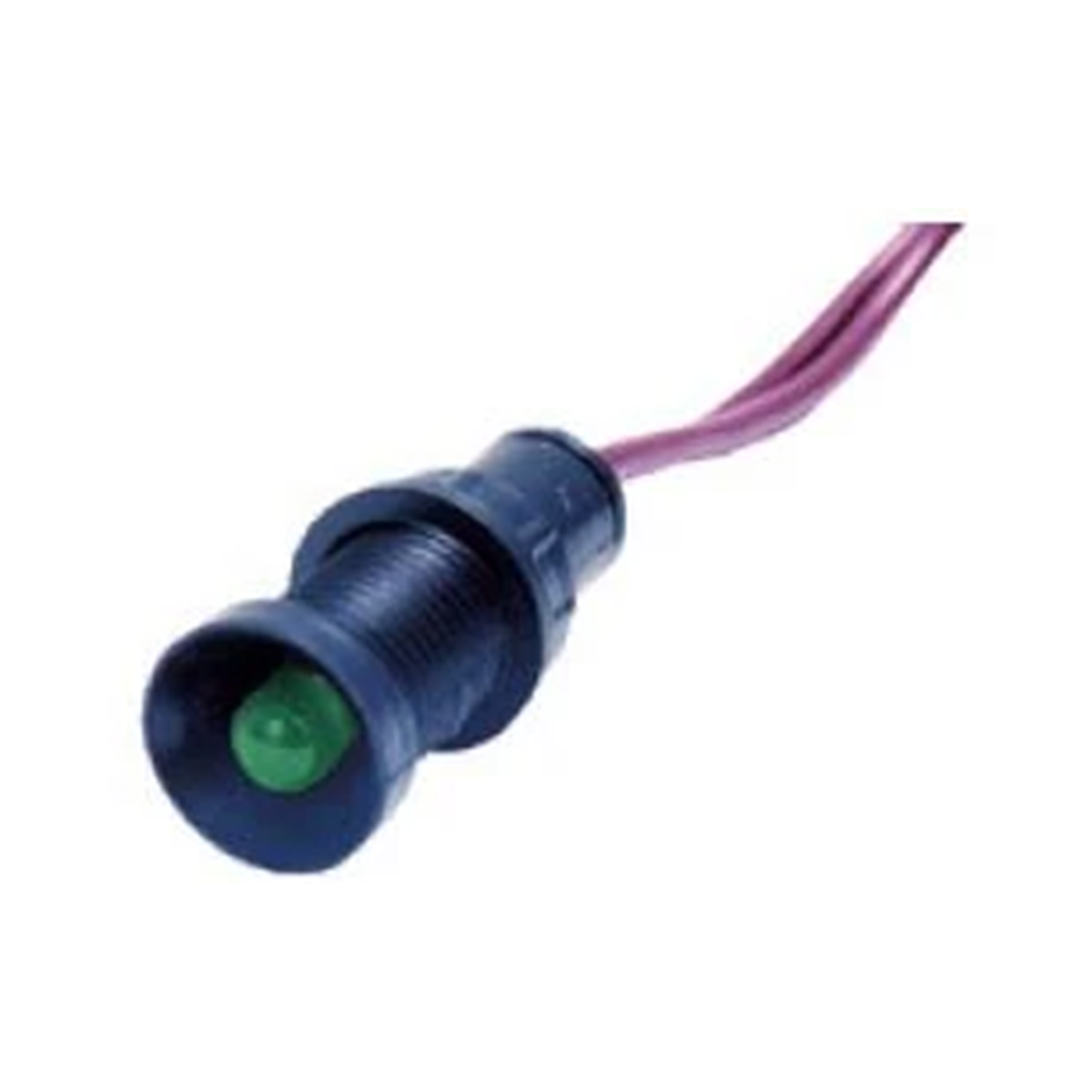

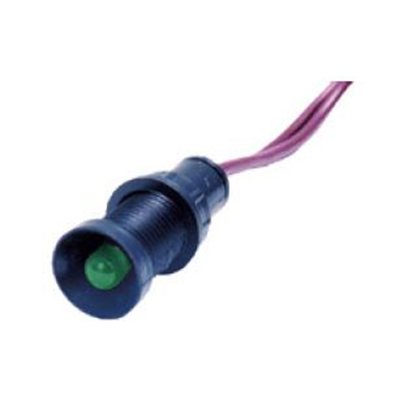

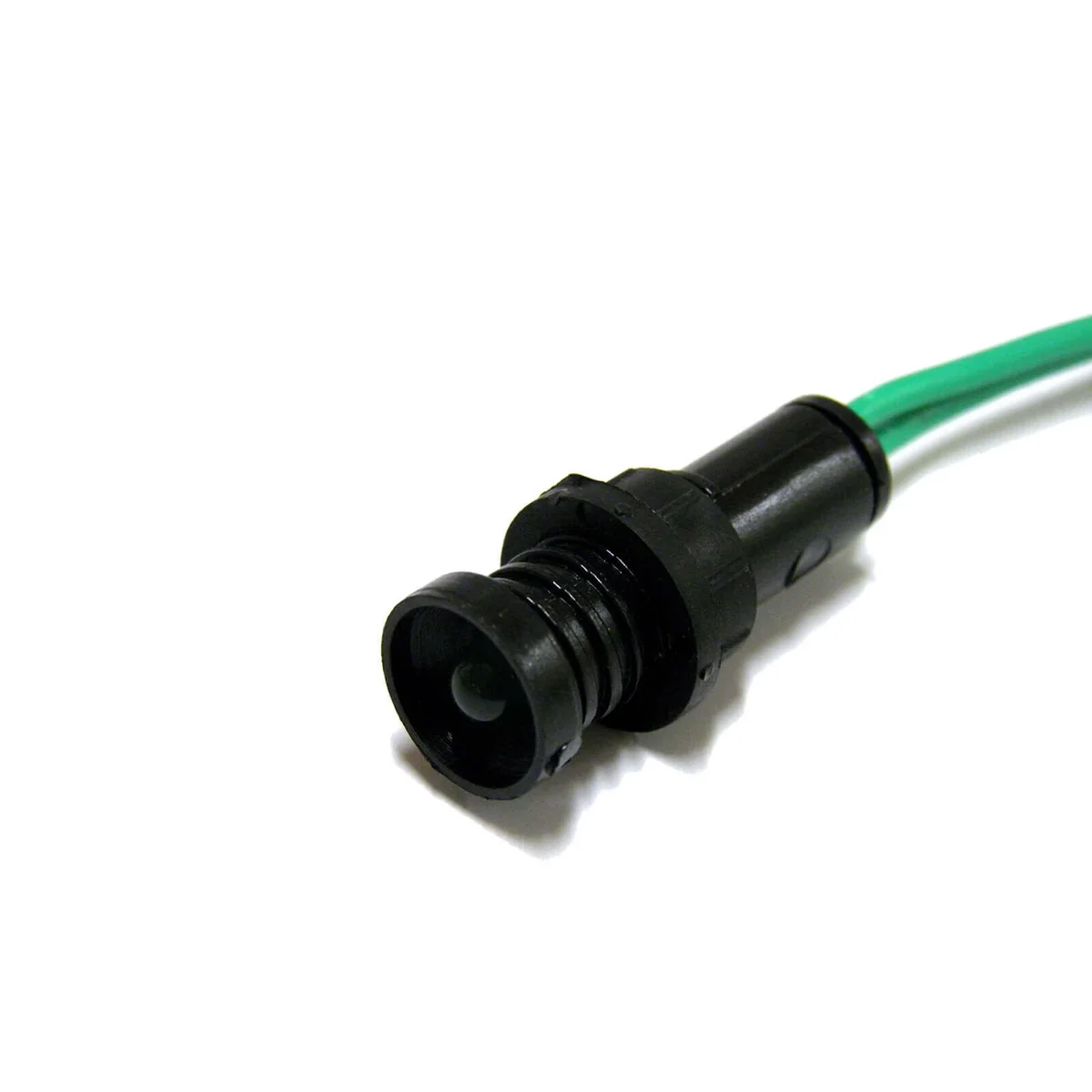

Green LED indicator, 5 mm cover, 230V 84505005

Indice locale:
AKS020SIME
Numero di catalogo:
84505005
Codice EAN:
5907813215865
Produttore: SIMET
Color: Green
Pieces in the package: 10
Prezzo:
25,26 €
gross / conf.
(inclusa IVA 23%)
2,53 € gross/pezzi
Consegna in 3 ore
fino a 4 settimane (giorni lavorativi)
Raccolta in 1h
Quantità conf.
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto


LED indicators are designed for light signaling of electric circuit states. They consist of one or two-color LEDs with a diameter of 3, 5, 10 and 20 mm, respectively, and a resistor, diode and holder.


They are an alternative solution to incandescent, neon and other lamps.


In particular, they are characterized by:|



  • long life (at 6 h/day - min. 12 years)


  • high luminance
  • < br/>

  • surge resistance


  • easy installation


  • low power consumption

  • reliability


  • IP20 degree of protection


  • LGy connection cable 0.5mm2.


By using the reduction washer pr 13/22, it is possible to mount the lamps klp 10 and klp 20 in mounting holes ø 22.


The lamp is made with a green light color.

Dati tecnici

  • Color
    Green
  • PKWIU
    26.11.22.0
  • Pieces in the package
    10

Altri dati tecnici

  • Number of indicator lights
    1
  • Type of lamp socket
    LED
  • Rated operating voltage Ue
    230 ... 230 V
  • Type of electric connection
    Screw connection
  • Type of lens
    High
  • Width opening
    8 mm
  • Degree of protection (IP)
    IP20
  • Material front ring
    Plastic
  • Colour lens
    Green
  • With light source
    Yes
  • Voltage type
    AC/DC
  • Construction type lens
    Round
  • Hole diameter
    10 mm
  • Height opening
    8 mm
  • With front ring
    Yes
  • Colour front ring
    Black

Dettagli del produttore

  • Produttore
    SIMET S.A.
  • Indirizzo
    58-506 Jelenia Góra al. Jana Pawła II 33 Polska
