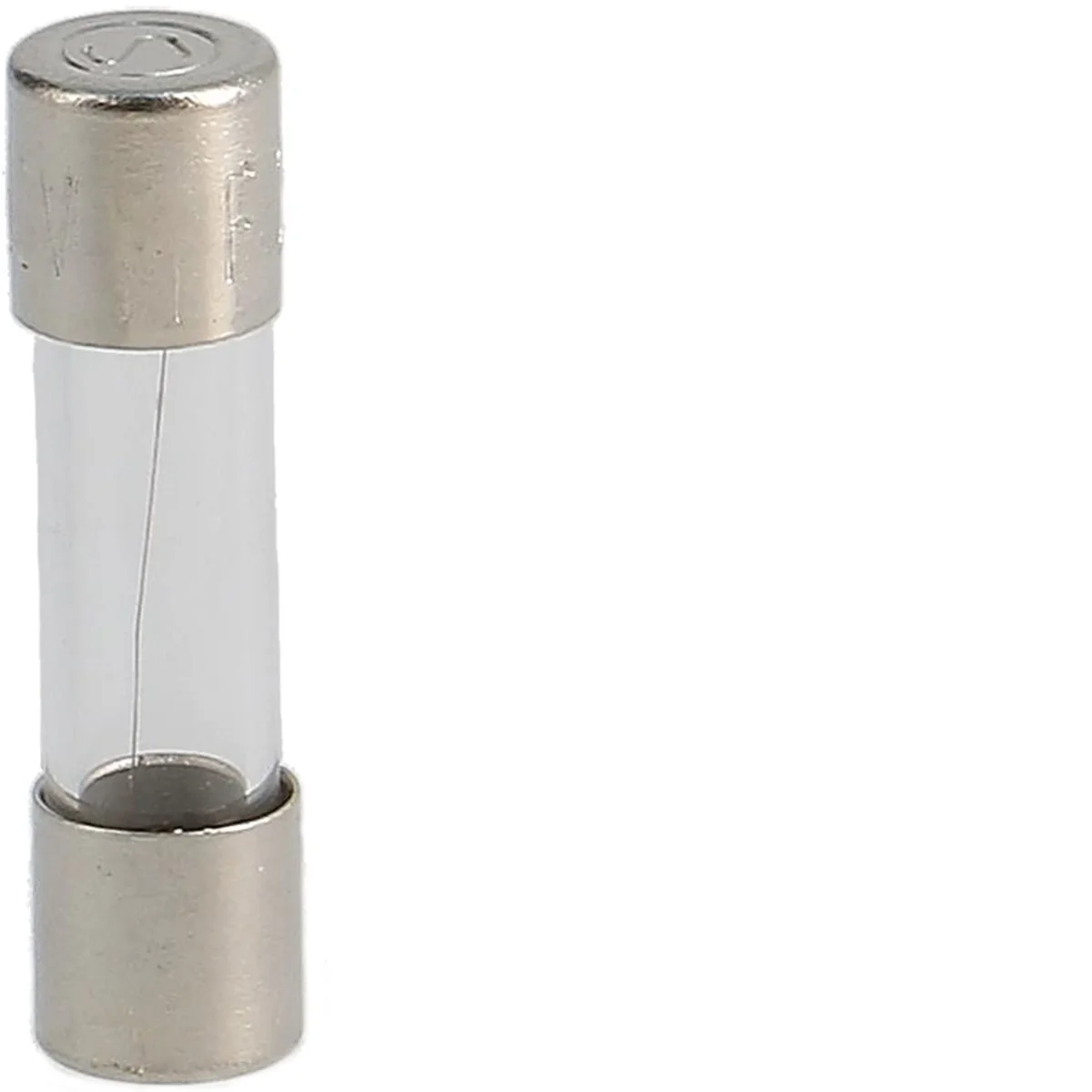

Glass fuse 5x20mm T 250V 0.125A L520TK00-125

local index:
ABI114HAGE
Catalog No:
L520TK00-125
EAN code:
3250614127175
Manufacturer: HAGER
Rated current [A]: 0.125
power loss [W]: 0.3
Fuse link size: 5 x 20
Price:
0,46 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Glass fuse link slow-blow:

  • 0.125A,
  • tripping characteristic: träge (T),
  • fuse link size: 5 x 20.

Technical data

  • Rated current [A]
    0.125
  • Fuse link size
    5 x 20
  • PKWIU
    27.12.21.0
  • power loss [W]
    0.3
  • Rated switching voltage [V]
    250

Other technical data

  • Size
    Other
  • Rated operating frequency
    50 ... 60 Hz
  • Breaking capacity
    0.035 kA
  • Voltage type
    AC
  • Release characteristic
    Other

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 200 pcs. 40000 pcs.
Weight (kg) 0,001 0,010 0,200 65,000
Width (m) 0,005 0,020 0,045 0,800
Length (m) 0,005 0,005 0,062 0,450
Depth (m) 0,020 0,050 0,080 1,200
