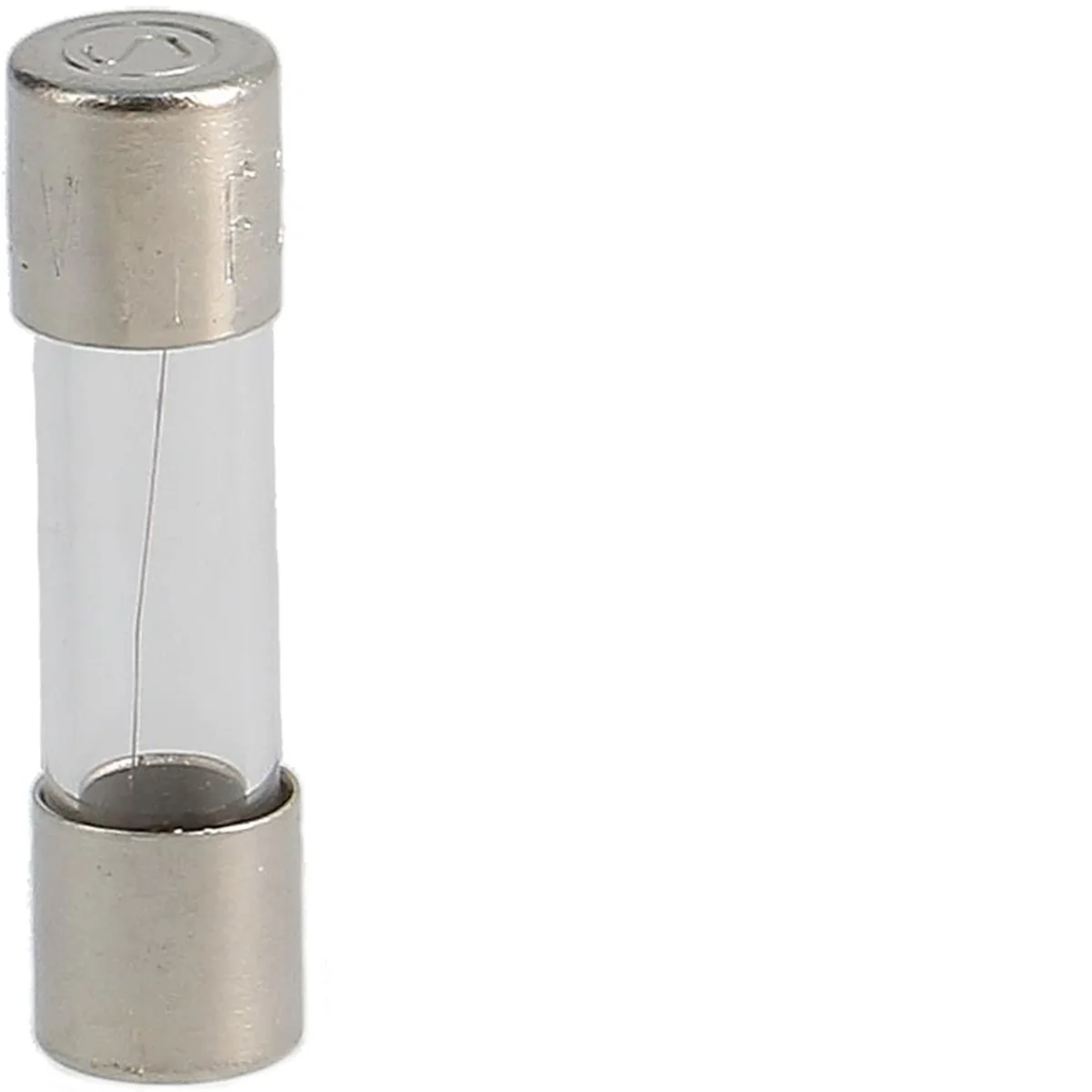

Glass fuse 5x20mm F 250V 5A L520FK05-000

local index:
ABI097HAGE
Catalog No:
L520FK05-000
EAN code:
3250614126796
Manufacturer: HAGER
Rated current [A]: 5
power loss [W]: 1.7
Fuse link size: 5 x 20
Price:
0,42 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Glass fuse link fast:

  • 0.1A,
  • tripping characteristics: flink (F),
  • fuse link size: 5 x 20.

Technical data

  • Rated current [A]
    5
  • Fuse link size
    5 x 20
  • PKWIU
    27.12.21.0
  • power loss [W]
    1.7
  • Rated switching voltage [V]
    250

Other technical data

  • Size
    Other
  • Rated operating frequency
    50 ... 60 Hz
  • Breaking capacity
    0.05 kA
  • Voltage type
    AC
  • Release characteristic
    Other

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 7 pcs. 1000 pcs. 40000 pcs.
Weight (kg) 0,001 0,009 1,050 94,600
Width (m) 0,005 0,021 0,110 0,800
Length (m) 0,005 0,006 0,090 0,420
Depth (m) 0,020 0,051 0,120 1,200
