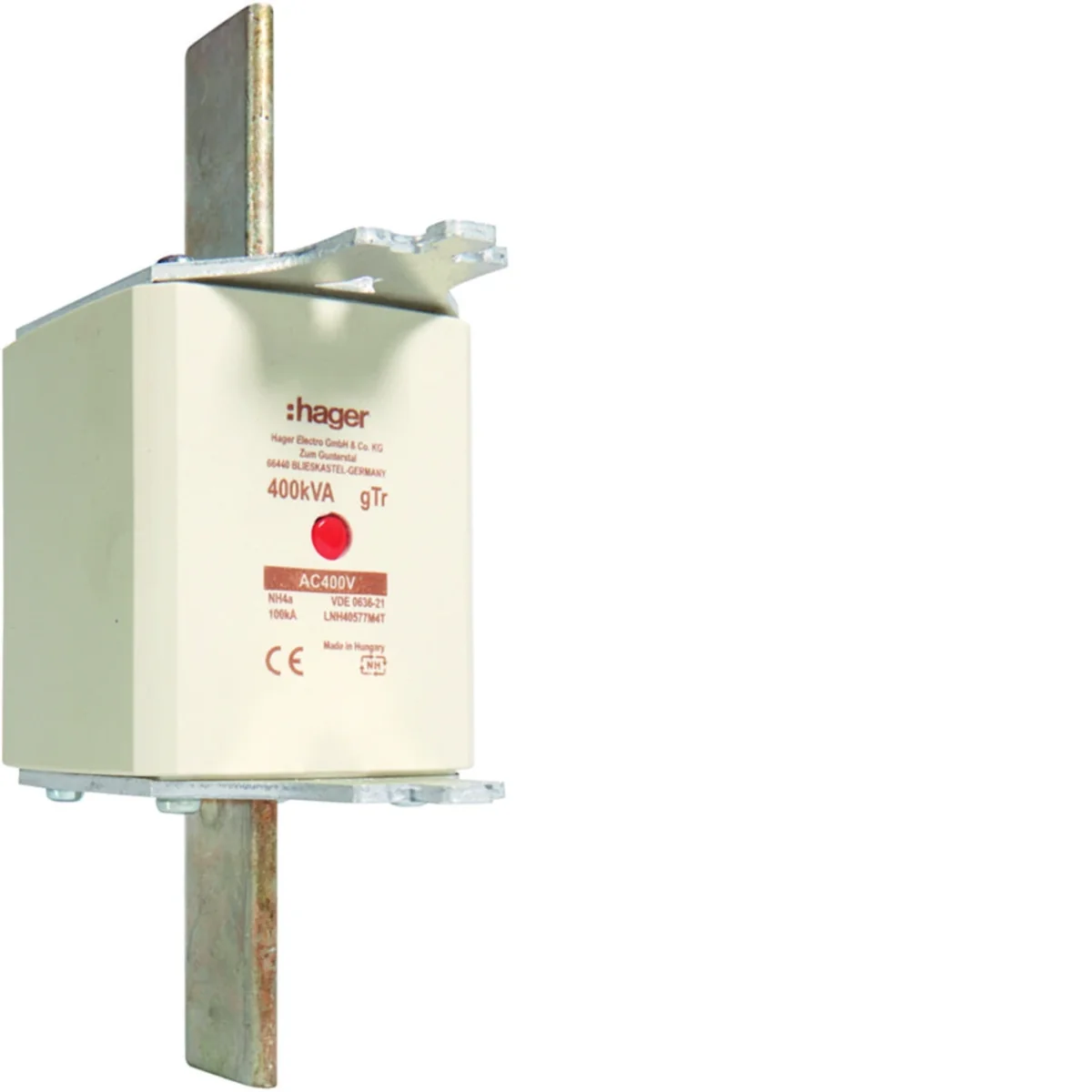

Fuse link NH4a gTr 400V 577A LNH40577M4T

local index:
ABI439HAGE
Catalog No:
LNH40577M4T
EAN code:
3250614126338
Manufacturer: HAGER
Characteristic: gTr
Length [mm]: 119
DC operating voltage [V]: 0/400/440
Price:
132,18 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

577A blade fuse link:

  • double indicator,
  • non-insulated handle.

Technical data

  • Characteristic
    gTr
  • DC operating voltage [V]
    0/400/440
  • power loss [W]
    39
  • Fuse link size
    NH4a
  • Rated switching voltage [V]
    0/400/440
  • PKWIU
    27.12.21.0
  • Length [mm]
    119
  • Rated current [A]
    577
  • Width [mm]
    98
  • Height [mm]
    200
  • Rated short-circuit breaking capacity Icn [kA]
    100

Other technical data

  • Voltage type
    AC
  • Rated switching capacity
    100 kA
  • Type of fuse status indicator
    Centre fuse status indicator
  • Rated current
    577 A
  • Utilization category
    gTr (Transformer protection)
  • Insulated metal gripping lugs (IMGL)
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 3 pcs. 96 pcs.
Weight (kg) 1,300 1,515 4,860 178,520
Width (m) 0,073 0,135 0,295 0,800
Length (m) 0,113 0,110 0,140 1,500
Depth (m) 0,200 0,220 0,395 1,200
