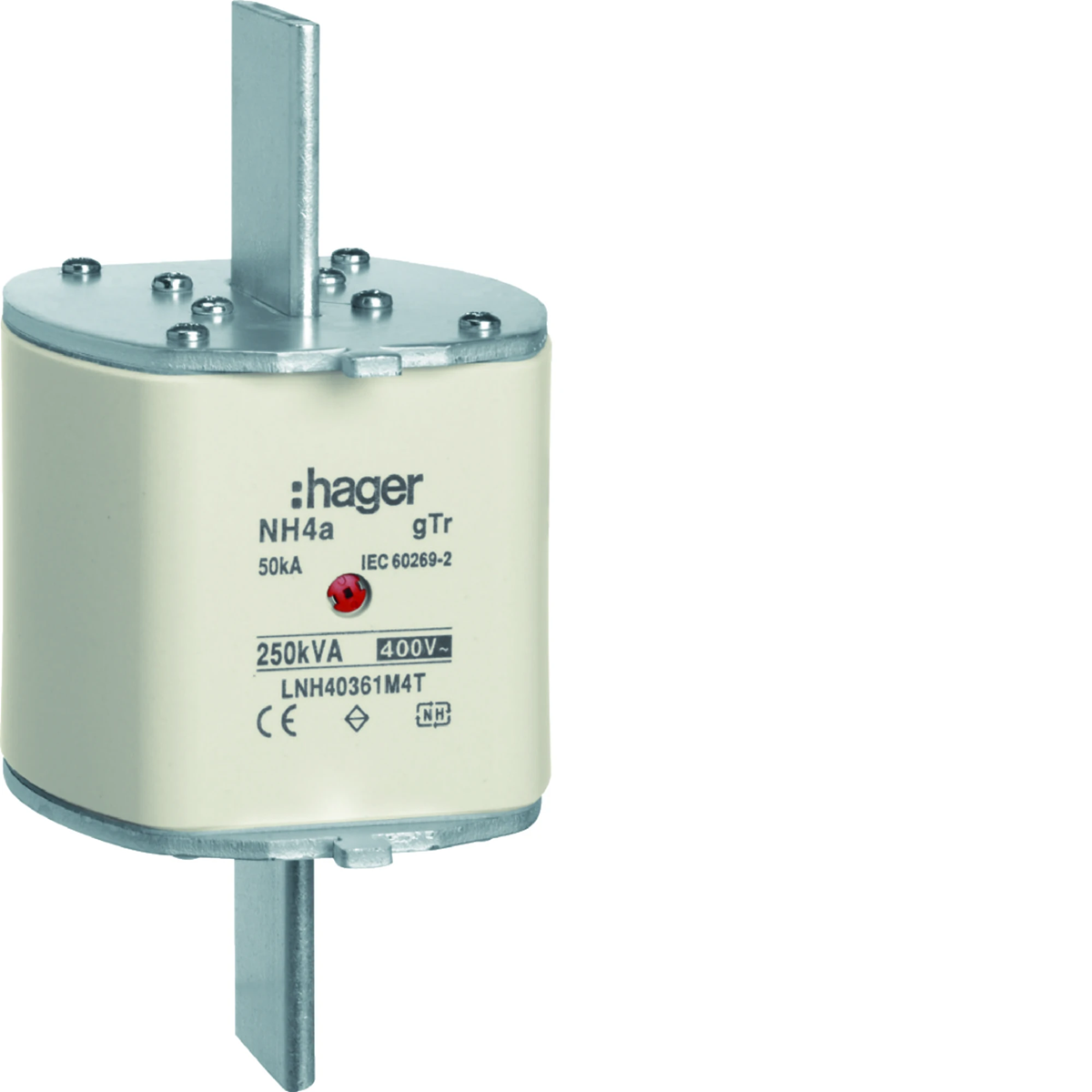

Fuse link NH4a gTr 400V 361A LNH40361M4T
local index:
ABI437HAGE
Catalog No:
LNH40361M4T
EAN code:
3250614126314
Price:
140,92 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
361A knife fuse link:
- double indicator,
- non-insulated handle.
Technical data
-
CharacteristicgTr
-
DC operating voltage [V]0/400/440
-
power loss [W]28
-
Fuse link sizeNH4a
-
Rated switching voltage [V]0/400/440
-
PKWIU27.12.21.0
-
Length [mm]119
-
Rated current [A]361
-
Width [mm]98
-
Height [mm]200
-
Rated short-circuit breaking capacity Icn [kA]100
Other technical data
-
Voltage typeAC
-
Rated switching capacity100 kA
-
Type of fuse status indicatorCentre fuse status indicator
-
Rated current361 A
-
Utilization categorygTr (Transformer protection)
-
Insulated metal gripping lugs (IMGL)No
Manufacturer details
-
ManufacturerHager Electro GmbH & Co KG
-
AddressDE 66440 Blieskastel Zum Gunterstal Niemcy
-
E-mail
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | Karton | Pakiet | Paleta |
| Quantity | 1 pcs. | 3 pcs. | 96 pcs. | 1 pcs. | 3 pcs. | 96 pcs. |
| Weight (kg) | 1,300 | 3,900 | 124,800 | 1,300 | 3,900 | 124,800 |
| Width (m) | 0,130 | 0,280 | 0,800 | 0,130 | 0,280 | 0,800 |
| Length (m) | 0,110 | 0,120 | 1,050 | 0,110 | 0,120 | 1,050 |
| Depth (m) | 0,220 | 0,370 | 1,200 | 0,220 | 0,370 | 1,200 |
