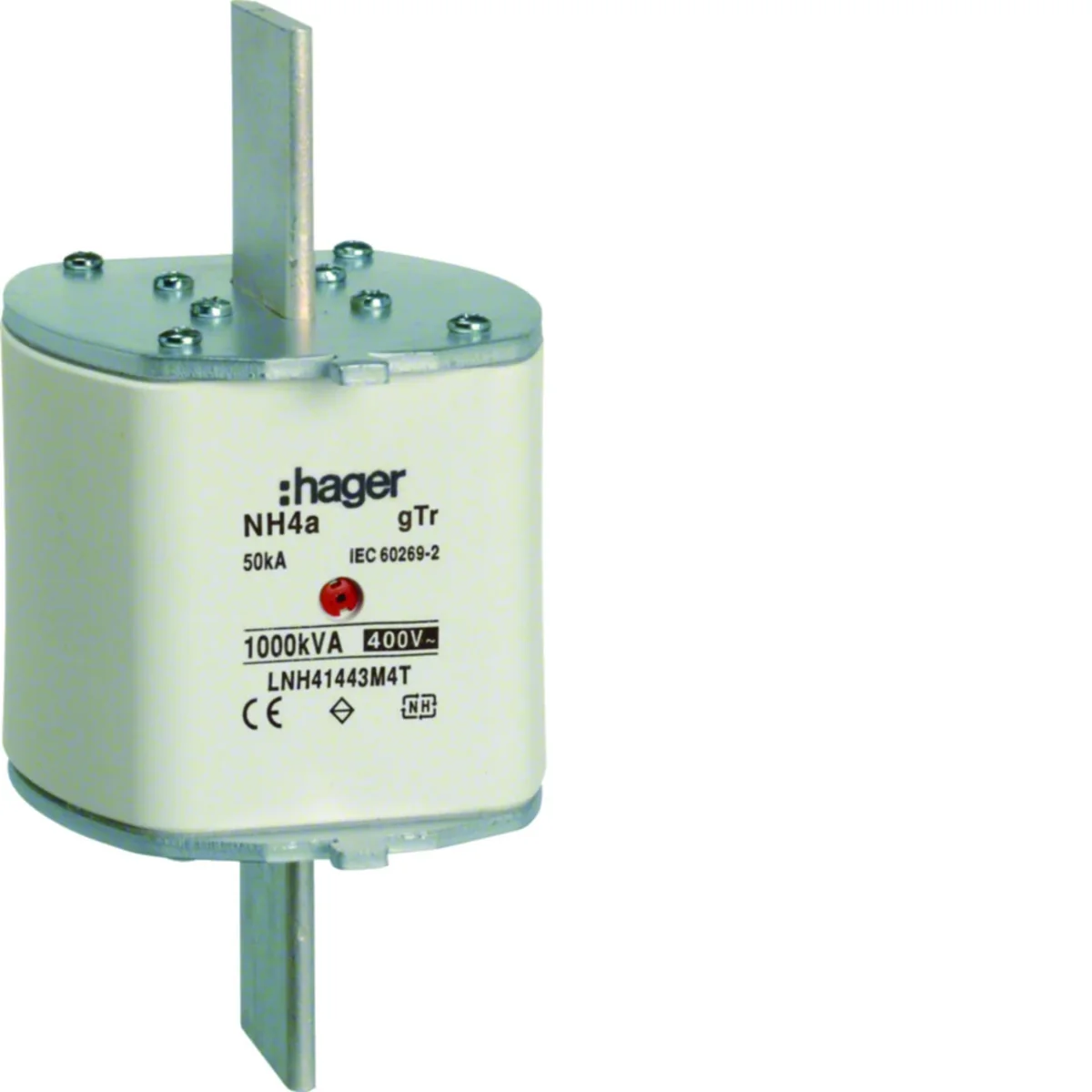

Fuse link NH4a gTr 400V 1443A LNH41443M4T
local index:
ABI443HAGE
Catalog number:
LNH41443M4T
EAN code:
3250614126376
Price:
964,32 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
1443A knife fuse link:
- double indicator,
- non-insulated handle.
Technical data
-
CharacteristicgTr
-
DC operating voltage [V]0/400/440
-
power loss [W]110
-
Fuse link sizeNH4a
-
Rated switching voltage [V]0/400/440
-
PKWIU27.12.21.0
-
Length [mm]119
-
Rated current [A]1443
-
Width [mm]98
-
Height [mm]200
-
Rated short-circuit breaking capacity Icn [kA]100
Other technical data
-
Voltage typeAC
-
Rated switching capacity100 kA
-
Type of fuse status indicatorCentre fuse status indicator
-
Rated current1443 A
-
Utilization categorygTr (Transformer protection)
-
Insulated metal gripping lugs (IMGL)No
Manufacturer details
-
ManufacturerHager Electro GmbH & Co KG
-
AddressDE 66440 Blieskastel Zum Gunterstal Niemcy
-
E-mail
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | Karton | Pakiet | Paleta |
| Quantity | 1 pcs. | 3 pcs. | 96 pcs. | 1 pcs. | 3 pcs. | 96 pcs. |
| Weight (kg) | 2,600 | 8,040 | 321,600 | 2,600 | 8,040 | 321,600 |
| Width (m) | 0,130 | 0,280 | 0,800 | 0,130 | 0,280 | 0,800 |
| Length (m) | 0,100 | 0,140 | 1,500 | 0,100 | 0,140 | 1,500 |
| Depth (m) | 0,210 | 0,390 | 1,200 | 0,210 | 0,390 | 1,200 |
