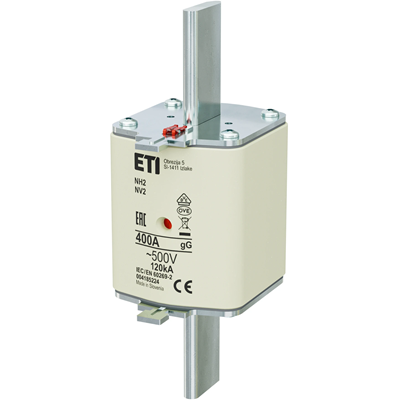

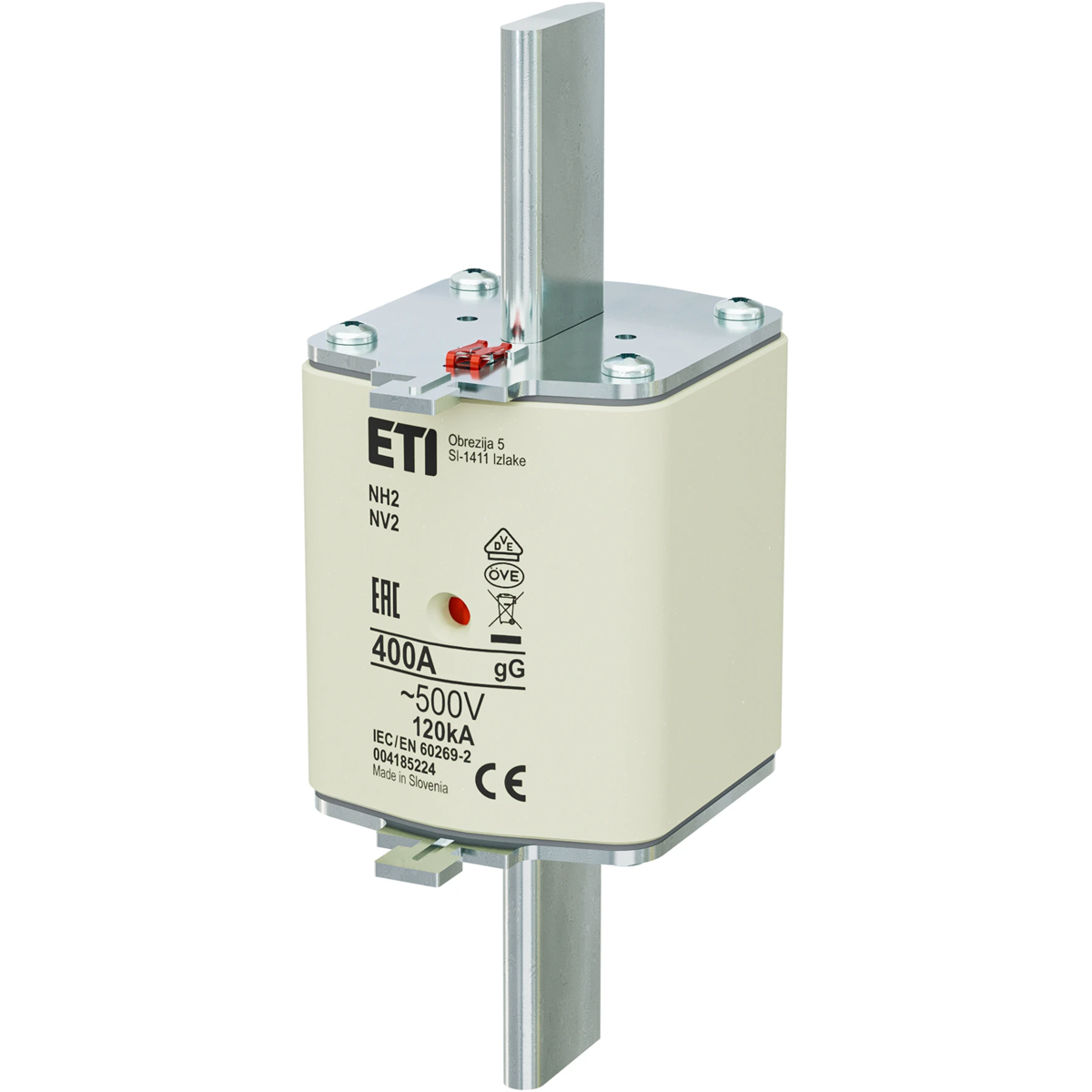

Fuse link NH2 gG 400A 500V 004185224

local index:
ABM199ETIP
Catalog No:
004185224
EAN code:
3838895345121
Manufacturer: ETI POLAM
Characteristic: gG
DC rated voltage [V]: 250
AC rated current [A]: 400
Price:
16,62 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 10 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Fuse-links -industrial are intended to protect power installations against the effects of short circuits and overloads.

Meeting standards:

  • PN-93/E-06160 (gF),
  • PN-IEC-269,
  • VDE 0636.

NH KOMBI fuse links - is a series of fuse links with a double actuation indicator. The combination of both operation indicators means that they will operate simultaneously when the insert burns out. The KOMBI version provides very good visibility of the operating status of the fuse link both in the bases and in fuse switch disconnectors.

Use of industrial fuse links:

< ul>
  • protection of power installations against the effects of short circuits and against the effects of short circuits and overloads,
  • proper protection of low rated current motors.
  • Technical data

    • Characteristic
      gG
    • AC rated current [A]
      400
    • Power dissipation [W]
      29
    • AC rated voltage [V]
      500
    • DC rated voltage [V]
      250
    • Type of trip indicator
      Double
    • Short-circuit breaking capacity [kA]
      120
    • PKWIU
      27.12.21.0

    Other technical data

    • Voltage type
      AC
    • Rated switching capacity
      120 kA
    • Type of fuse status indicator
      Combination fuse status indicator
    • Rated current
      400 A
    • Utilization category
      gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)

    Bulk packaging

    A kind of package Pudełko Pudełko
    Quantity 3 pcs. 15 pcs.
    Weight (kg) 1,780 8,500
    Volume (m3) 0,002 0,017
    Width (m) 0,166 0,295
    Length (m) 0,150 0,235
    Depth (m) 0,074 0,245
