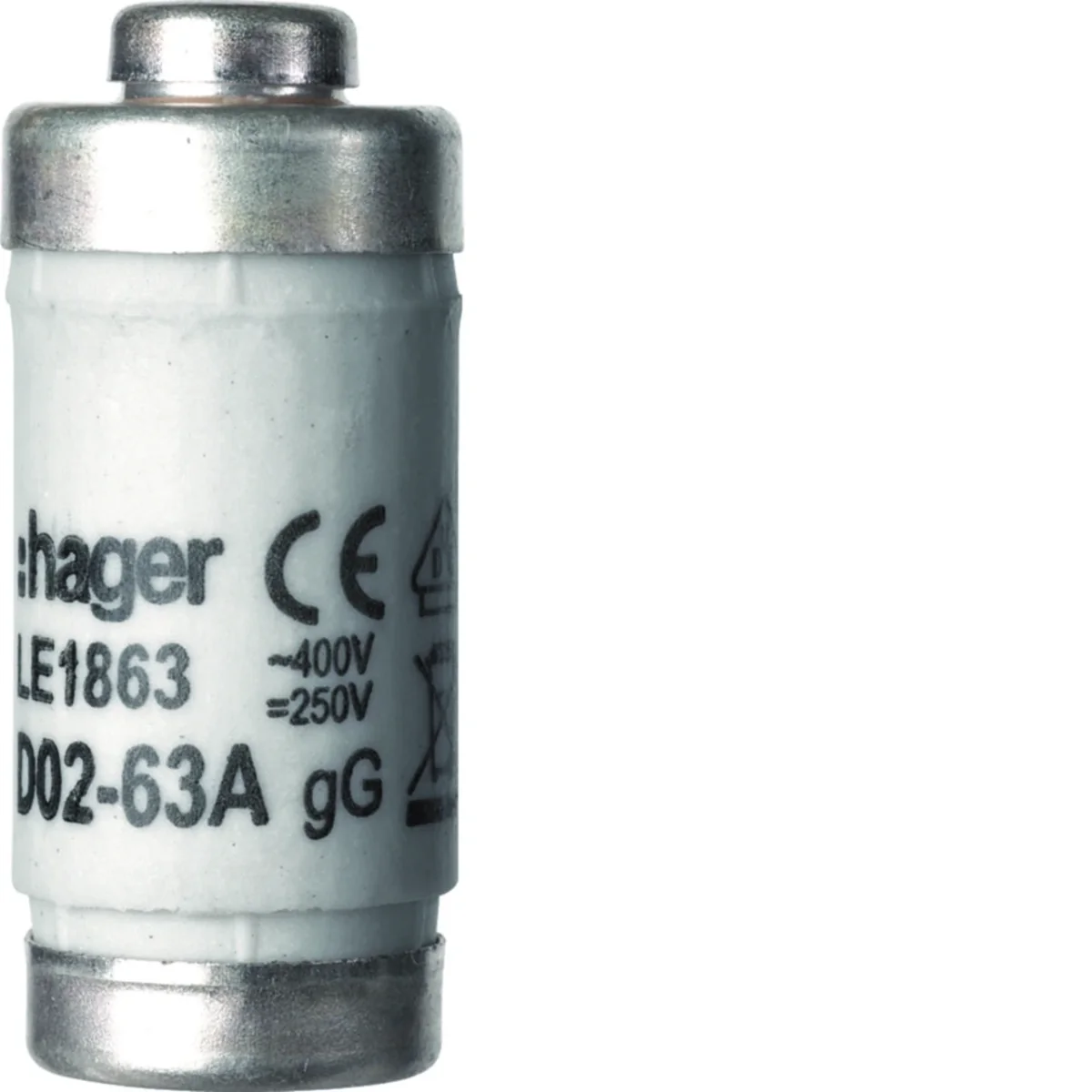

Fuse-link D0 D02/E18 63A 400V gL/gG LE1863
local index:
ABM022HAGE
Catalog No:
LE1863
EAN code:
3250614124099
Price:
1,65 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Fuse-link:
- E18
- standards: DIN 49522, VDE 0636 / T41, EN 60269 compliance with: VDE, Demko< /li>
Technical data
-
CharacteristicgG
-
DC operating voltage [V]0/400/440
-
power loss [W]5.4
-
Fuse link sizeD02
-
Rated switching voltage [V]0/400/440
-
Maximum operating voltage [V]440
-
Length [mm]36
-
Rated current [A]63
-
Width [mm]15
-
Height [mm]15
-
Rated short-circuit breaking capacity Icn [kA]50
-
PKWIU27.12.21.0
Other technical data
-
Construction sizeD02
-
Rated voltage400 V
-
Utilization categoryOther
-
Rated current63 A
-
Colour codeCopper
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 250 pcs. | 40000 pcs. |
| Weight (kg) | 0,014 | 0,155 | 3,845 | 640,200 |
| Width (m) | 0,015 | 0,035 | 0,085 | 0,800 |
| Length (m) | 0,015 | 0,040 | 0,170 | 1,050 |
| Depth (m) | 0,036 | 0,080 | 0,200 | 1,200 |
