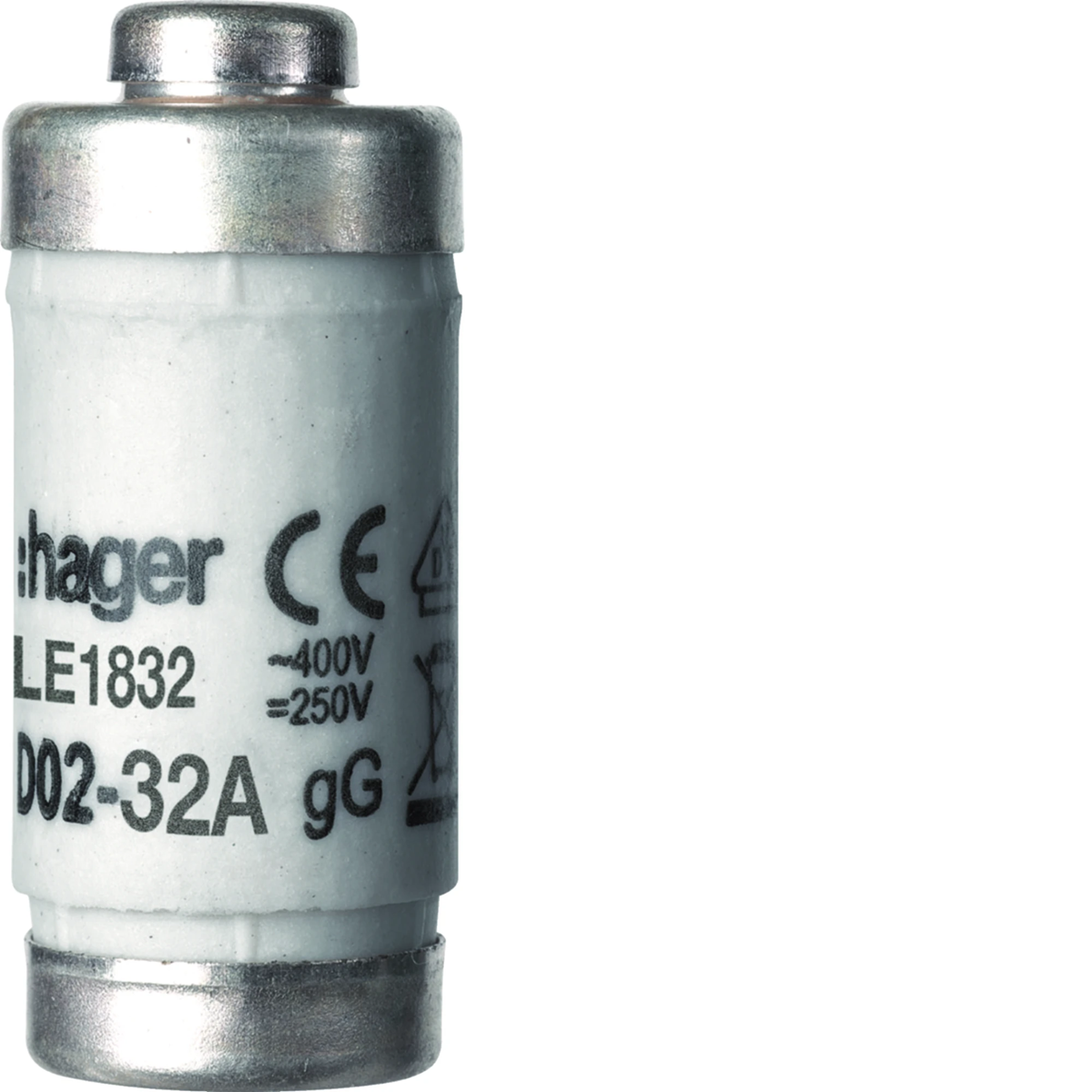

Fuse-link D0 D02/E18 32A 400V gL/gG LE1832
local index:
ABM018HAGE
Catalog No:
LE1832
EAN code:
3250614131387
Price:
1,30 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Fuse-link:
- E18
- standards: DIN 49522, VDE 0636 / T41, EN 60269 compliance with: VDE, Demko< /li>
Technical data
-
CharacteristicgG
-
DC operating voltage [V]0/400/440
-
power loss [W]3.9
-
Fuse link sizeD02
-
Rated switching voltage [V]0/400/440
-
Maximum operating voltage [V]440
-
Length [mm]36
-
Rated current [A]32
-
Width [mm]15
-
Height [mm]15
-
Rated short-circuit breaking capacity Icn [kA]50
-
PKWIU27.12.21.0
Other technical data
-
Construction sizeD02
-
Rated voltage400 V
-
Utilization categoryOther
-
Rated current32 A
-
Colour codeYellow
Manufacturer details
-
ManufacturerHager Electro S.A.S.
-
AddressFR 67215 Obernai 123 boulevard d’Europe Francja
-
E-mail
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | Karton | Pakiet | Paleta |
| Quantity | 10 pcs. | 250 pcs. | 40000 pcs. | 10 pcs. | 250 pcs. | 40000 pcs. |
| Weight (kg) | 0,120 | 3,000 | 480,000 | 0,120 | 3,000 | 480,000 |
| Width (m) | 0,040 | 0,170 | 0,800 | 0,040 | 0,170 | 0,800 |
| Length (m) | 0,030 | 0,080 | 1,050 | 0,030 | 0,080 | 1,050 |
| Depth (m) | 0,080 | 0,200 | 1,200 | 0,080 | 0,200 | 1,200 |
