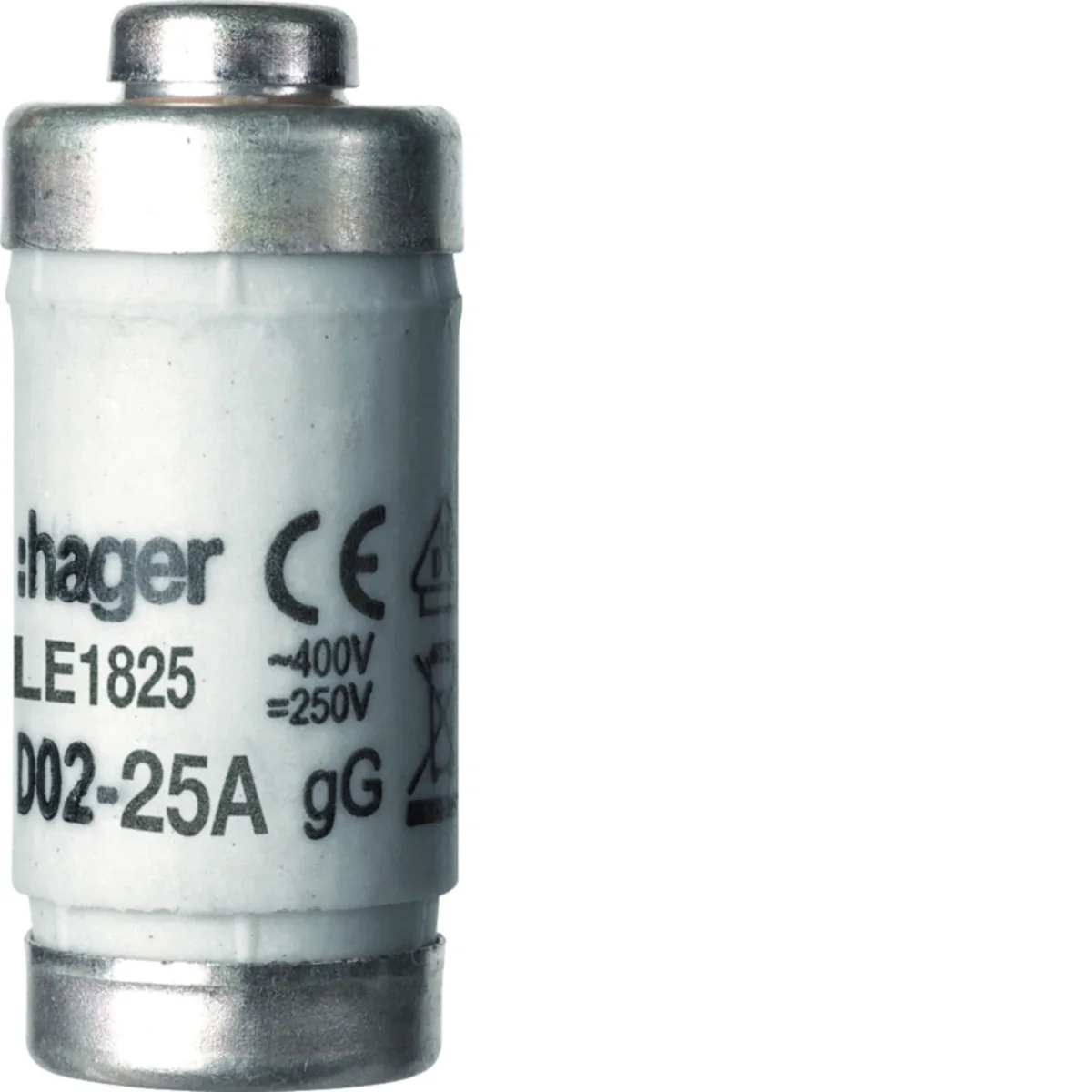

Fuse-link D0 D02/E18 25A 400V gL/gG LE1825

local index:
ABM017HAGE
Catalog No:
LE1825
EAN code:
3250614124068
Manufacturer: HAGER
Characteristic: gG
Length [mm]: 36
DC operating voltage [V]: 0/400/440
Price:
0,95 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Fuse-link:

  • E18
  • standards: DIN 49522, VDE 0636 / T41, EN 60269 compliance with: VDE, Demko< /li>

Technical data

  • Characteristic
    gG
  • DC operating voltage [V]
    0/400/440
  • power loss [W]
    3
  • Fuse link size
    D02
  • Rated switching voltage [V]
    0/400/440
  • Maximum operating voltage [V]
    440
  • Length [mm]
    36
  • Rated current [A]
    25
  • Width [mm]
    13
  • Height [mm]
    13
  • Rated short-circuit breaking capacity Icn [kA]
    50
  • PKWIU
    27.12.21.0

Other technical data

  • Construction size
    D02
  • Rated voltage
    400 V
  • Utilization category
    Other
  • Rated current
    25 A
  • Colour code
    Yellow

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 250 pcs. 40000 pcs.
Weight (kg) 0,011 0,125 3,210 538,600
Width (m) 0,015 0,040 0,170 0,800
Length (m) 0,015 0,035 0,085 1,100
Depth (m) 0,036 0,080 0,200 1,200
