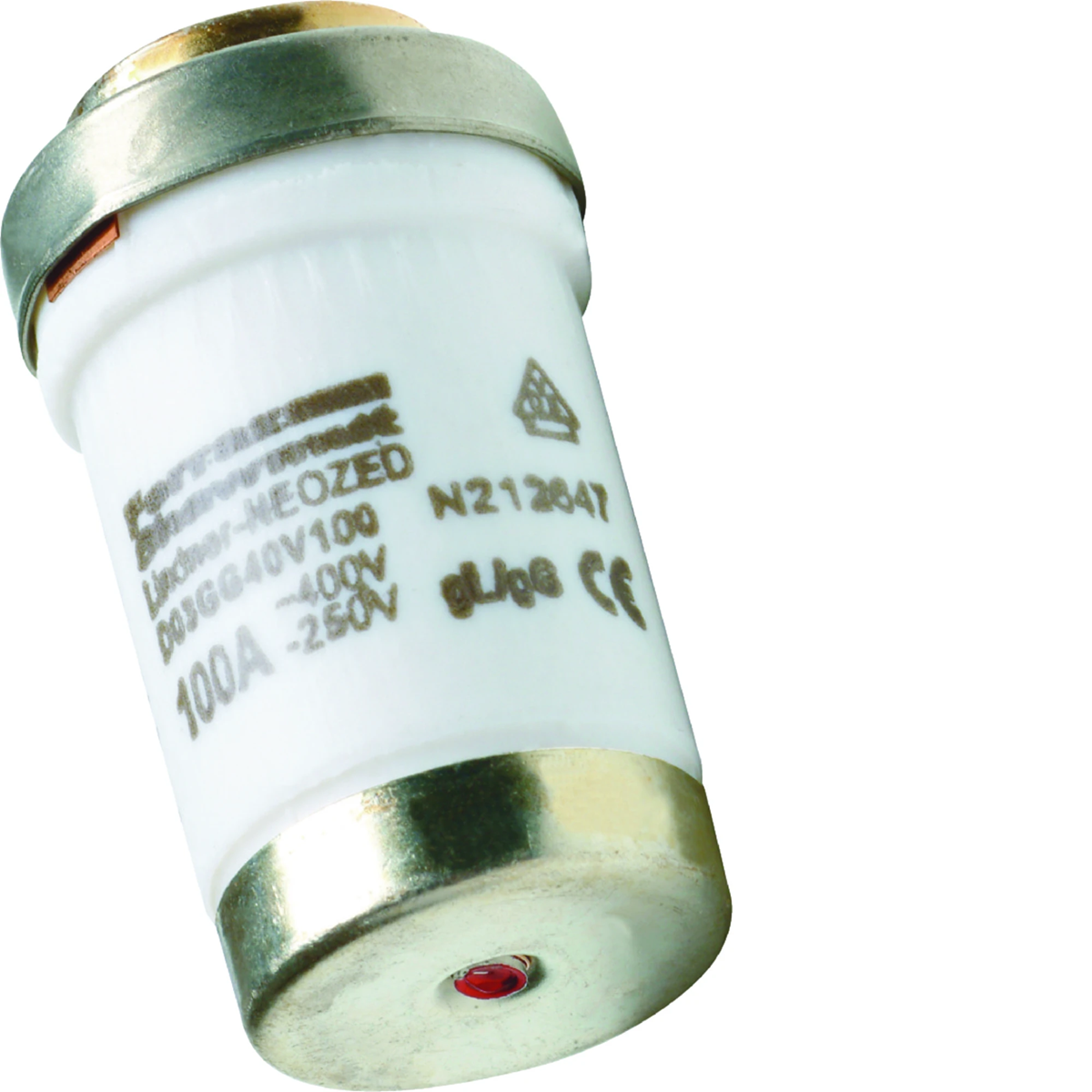

fuse insert slow D03/M30x2 100A 400V LM30100

local index:
ABI445HAGE
Catalog No:
LM30100
EAN code:
3250614131417
Manufacturer: HAGER
Rated current [A]: 100
Fuse link size: D03
Rated switching voltage [V]: 400/440
Price:
12,47 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Fuse-link slow-blow:

  • fuse characteristics: gL/gG,
  • approvals / approvals: VDE,
  • metric thread: M30x2.

Technical data

  • Rated current [A]
    100
  • Rated switching voltage [V]
    400/440
  • Rated short-circuit breaking capacity Icn [A]
    100
  • Fuse link size
    D03
  • Maximum operating voltage [V]
    440
  • PKWIU
    27.12.40.0

Other technical data

  • Construction size
    D03
  • Rated voltage
    440 V
  • Utilization category
    gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
  • Rated current
    100 A
  • Colour code
    Red

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 440 pcs. 15840 pcs.
Weight (kg) 0,040 0,420 18,700 673,200
Width (m) 0,026 0,057 0,230 0,800
Length (m) 0,026 0,047 0,290 1,200
Depth (m) 0,043 0,135 0,320 1,200
