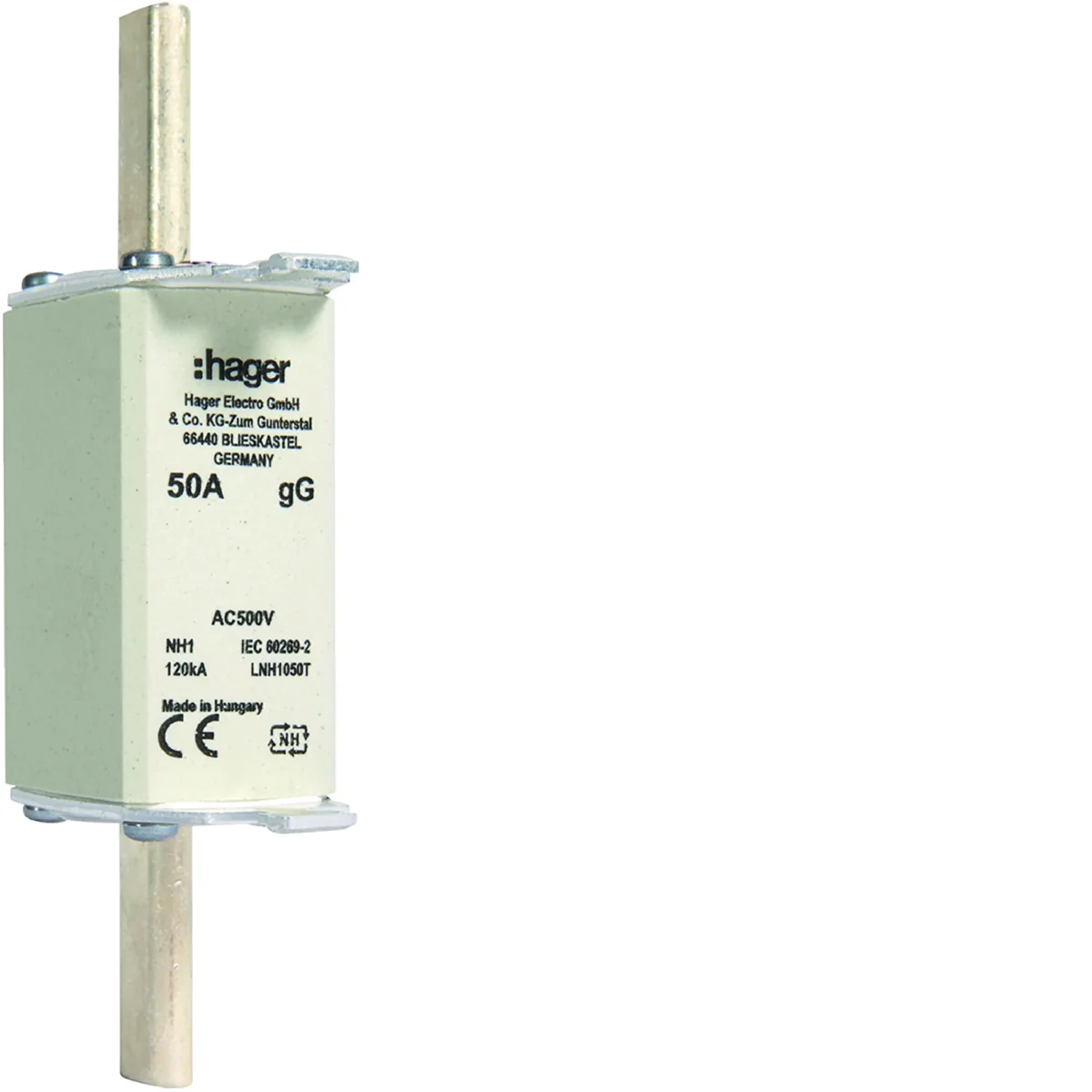

fuse insert esp. NH1C 50A AC 500V gG LNH1050T

local index:
ABM015HAGE
Catalog No:
LNH1050T
EAN code:
3250614132438
Manufacturer: HAGER
Characteristic: gG
Length [mm]: thirty
DC operating voltage [V]: 0/500/550
Price:
5,65 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Individual inquiry
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

fuse insert esp. NH1C 50A AC 500V gG

Technical data

  • Characteristic
    gG
  • DC operating voltage [V]
    0/500/550
  • power loss [W]
    4.6
  • Fuse link size
    NH1C
  • Rated switching voltage [V]
    0/500/550
  • PKWIU
    27.12.21.0
  • Length [mm]
    thirty
  • Rated current [A]
    50
  • Width [mm]
    135
  • Height [mm]
    55
  • Rated short-circuit breaking capacity Icn [kA]
    120

Other technical data

  • Voltage type
    AC
  • Rated switching capacity
    120 kA
  • Type of fuse status indicator
    Top fuse status indicator
  • Rated current
    50 A
  • Utilization category
    gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
  • Insulated metal gripping lugs (IMGL)
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 3 pcs. 60 pcs. 1440 pcs.
Weight (kg) 0,230 0,700 14,240 362,880
Width (m) 0,135 0,095 0,290 0,800
Length (m) 0,055 0,062 0,220 1,170
Depth (m) 0,030 0,140 0,320 1,200
