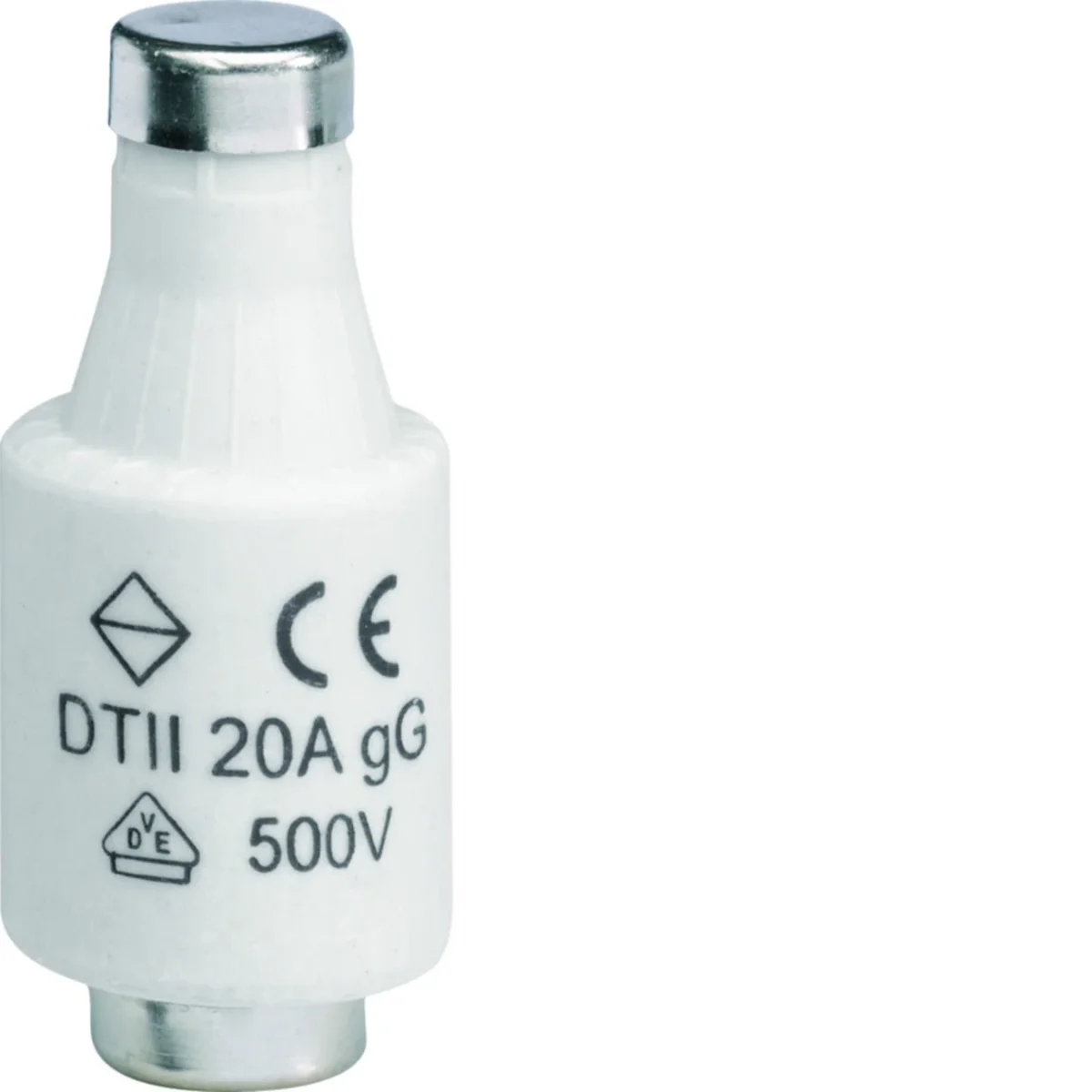

Fuse DTII/E27 Bi-Wtz 22x50 20A T LE2720

local index:
ABI190HAGE
Catalog No:
LE2720
EAN code:
3250614124402
Manufacturer: HAGER
Length [mm]: 50
DC operating voltage [V]: 0/500/550
Rated current [A]: 20
Price:
0,64 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Fuse link:

  • slow acting
  • E27
  • Bi-Wtz
  • characteristics trigger: träge (T)

Technical data

  • Length [mm]
    50
  • Rated current [A]
    20
  • Width [mm]
    22
  • Height [mm]
    22
  • Rated short-circuit breaking capacity Icn [kA]
    50
  • DC operating voltage [V]
    0/500/550
  • power loss [W]
    2.7
  • Fuse link size
    DII
  • Rated switching voltage [V]
    0/500/550
  • PKWIU
    27.12.21.0

Other technical data

  • Construction size
    DII
  • Rated voltage
    500 V
  • Utilization category
    gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
  • Rated current
    20 A
  • Colour code
    Blue
  • Release characteristic
    Time-lag (T)

Bulk packaging

A kind of package Pakiet Paleta Karton
Quantity 250 pcs. 15000 pcs. 1 pcs. 5 pcs.
Weight (kg) 7,860 480,000 0,031 0,150
Width (m) 0,240 0,800 0,023 0,052
Length (m) 0,130 0,420 0,023 0,025
Depth (m) 0,275 1,200 0,050 0,132
