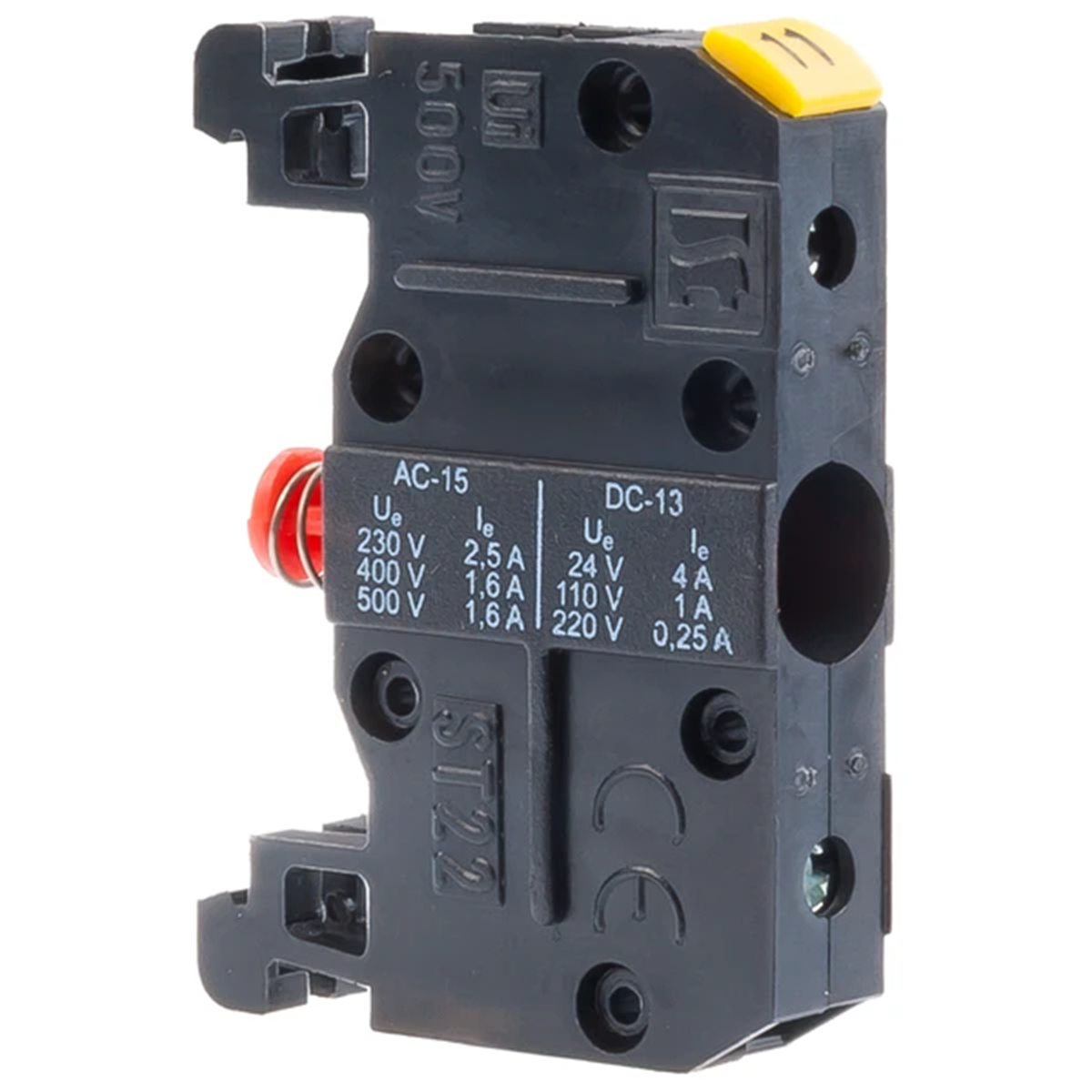

Front connector with turn track 01 ST22\01-1

local index:
AKS806SPAM
Catalog No:
ST22\01-1
EAN code:
5907723018167
Manufacturer: SPAMEL
Button color: Red
Installation: Leading
Type of electrical connection: Screw connection
Price:
3,89 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Control button break contact

Technical data

  • Button color
    Red
  • Type of electrical connection
    Screw connection
  • Installation
    Leading
  • Rated operational current [A]
    2.5

Other technical data

  • Number of contacts as change-over contact
    0
  • Number of contacts as normally closed contact
    1
  • Rated operation current Ie at AC-15, 230 V
    2.5 A
  • Model
    Clip-on
  • Lamp holder
    None
  • Number of contacts as normally open contact
    0
  • Number of fault-signal switches
    0
  • Type of electric connection
    Screw connection
  • Mounting method
    Front fastening
