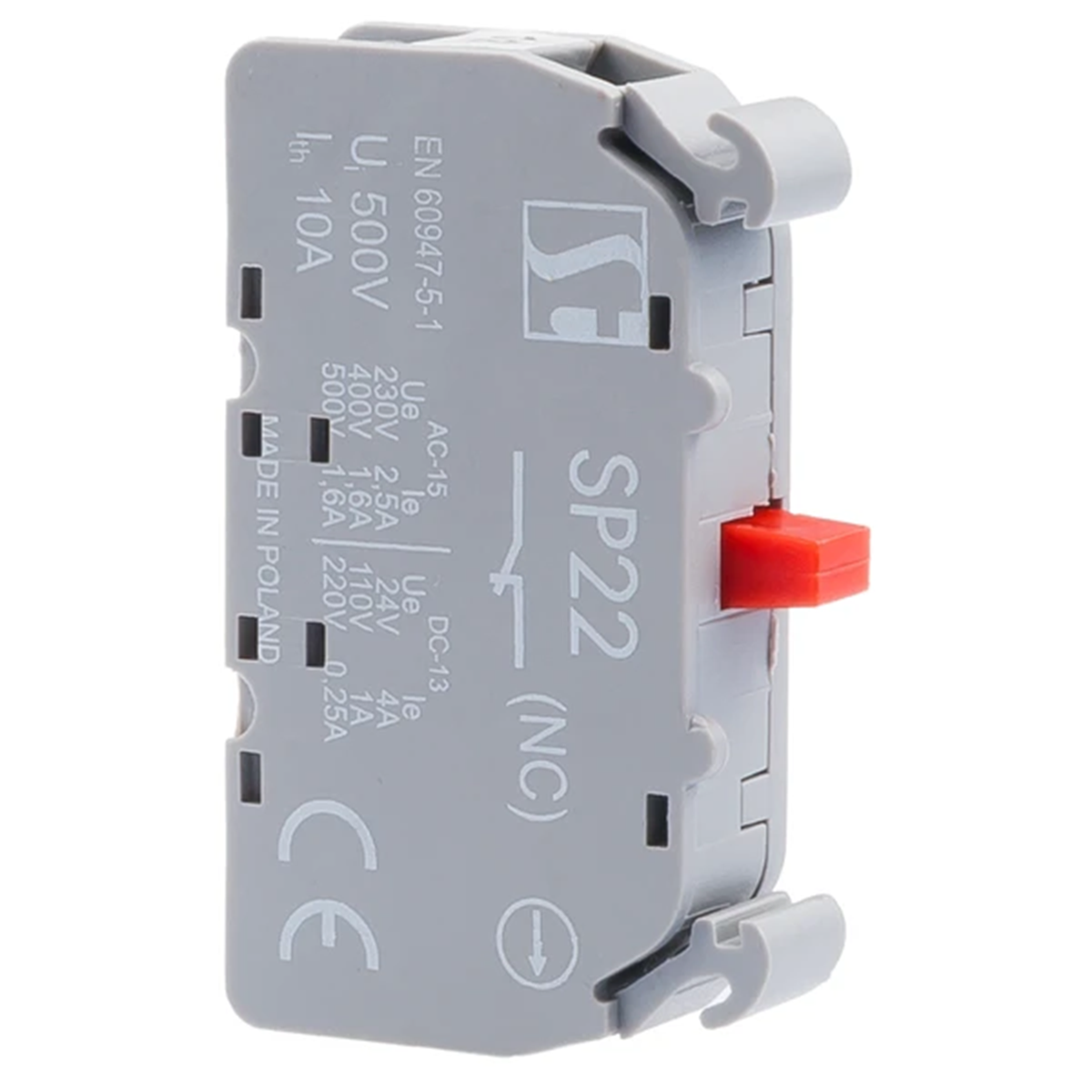

Front connector with turn track 01 SP22\01-1
local index:
AKS104SPAM
Catalog No:
SP22\01-1
EAN code:
5907723055575
Manufacturer:
SPAMEL
Button color: Red
Installation: Leading
Type of electrical connection: Screw connection
Price:
4,03 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Control button NC contact
Technical data
-
Button colorRed
-
Type of electrical connectionScrew connection
-
InstallationLeading
-
Rated operational current [A]2.5
Other technical data
-
Number of contacts as change-over contact0
-
Number of contacts as normally closed contact1
-
Rated operation current Ie at AC-15, 230 V2.5 A
-
ModelClip-on
-
Lamp holderNone
-
Number of contacts as normally open contact0
-
Number of fault-signal switches0
-
Type of electric connectionScrew connection
-
Mounting methodFront fastening
Manufacturer details
-
ManufacturerS.I. Spamel
-
Address56- 416 Twardogóra Wojska Polskiego 3 Polska
-
