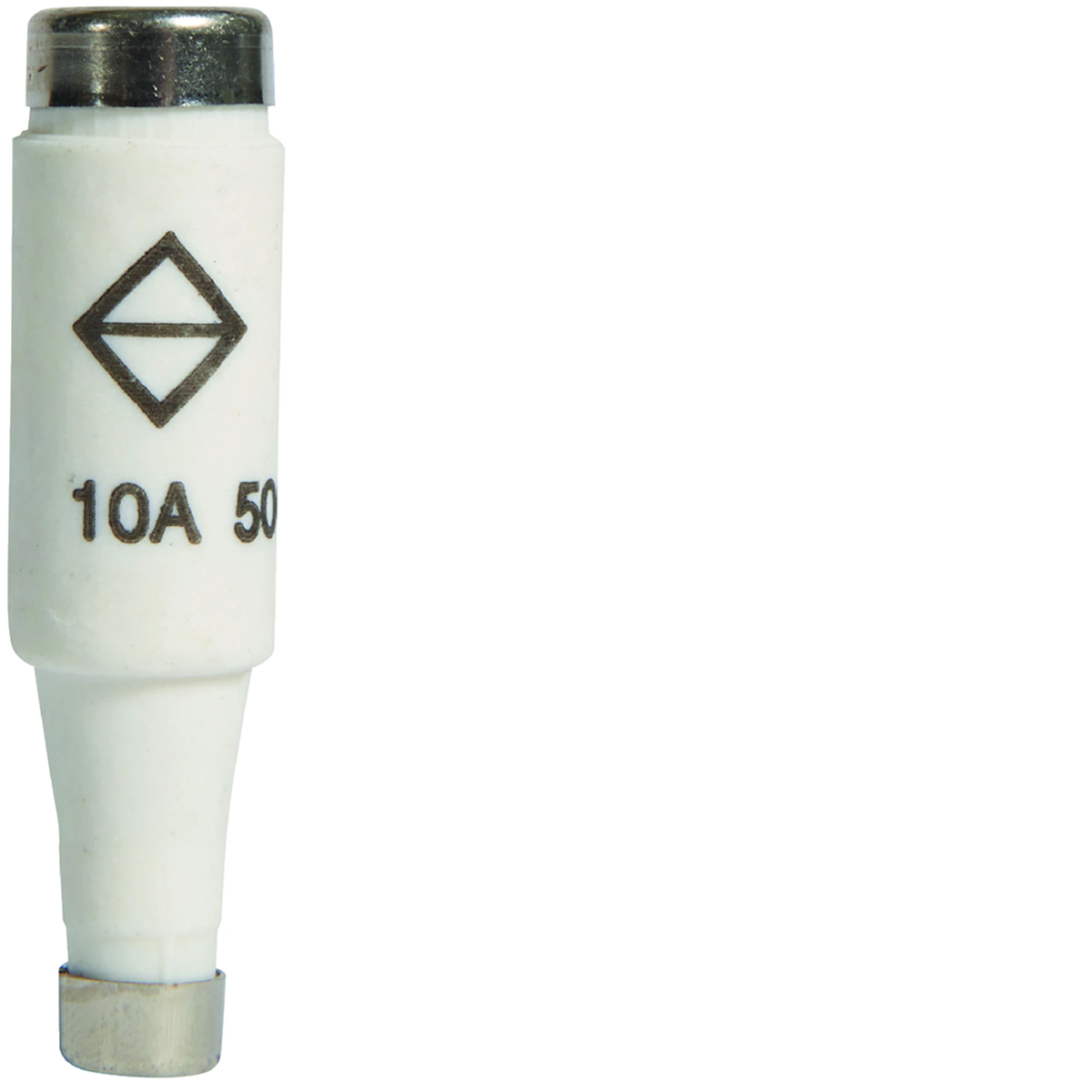

Fast fuse link NDZ F-10A DI/E16 LNDZF10
local index:
ABM024HAGE
Catalog No:
LNDZF10
EAN code:
3250614128332
Price:
2,16 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
DI fast fuse link (for E16 sockets):
- fuse characteristics: gG,
- triggering characteristics: flink (F).
Technical data
-
Length [mm]50
-
Rated current [A]10
-
Width [mm]13.2
-
Height [mm]13.2
-
Rated short-circuit breaking capacity Icn [kA]4
-
DC operating voltage [V]0/500/550
-
power loss [W]3.4
-
Fuse link sizeSUN
-
Rated switching voltage [V]0/500/550
-
PKWIU27.12.21.0
Other technical data
-
Construction sizeNDZ
-
Rated voltage500 V
-
Utilization categorygL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
-
Rated current10 A
-
Colour codeRed
-
Release characteristicFast (F)
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
Tax identification number6460015532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | Karton | Pakiet | Paleta |
| Quantity | 25 pcs. | 500 pcs. | 35000 pcs. | 25 pcs. | 500 pcs. | 35000 pcs. |
| Weight (kg) | 0,305 | 6,275 | 462,250 | 0,305 | 6,275 | 462,250 |
| Width (m) | 0,075 | 0,165 | 0,800 | 0,075 | 0,165 | 0,800 |
| Length (m) | 0,055 | 0,125 | 0,750 | 0,055 | 0,125 | 0,750 |
| Depth (m) | 0,075 | 0,380 | 1,200 | 0,075 | 0,380 | 1,200 |
