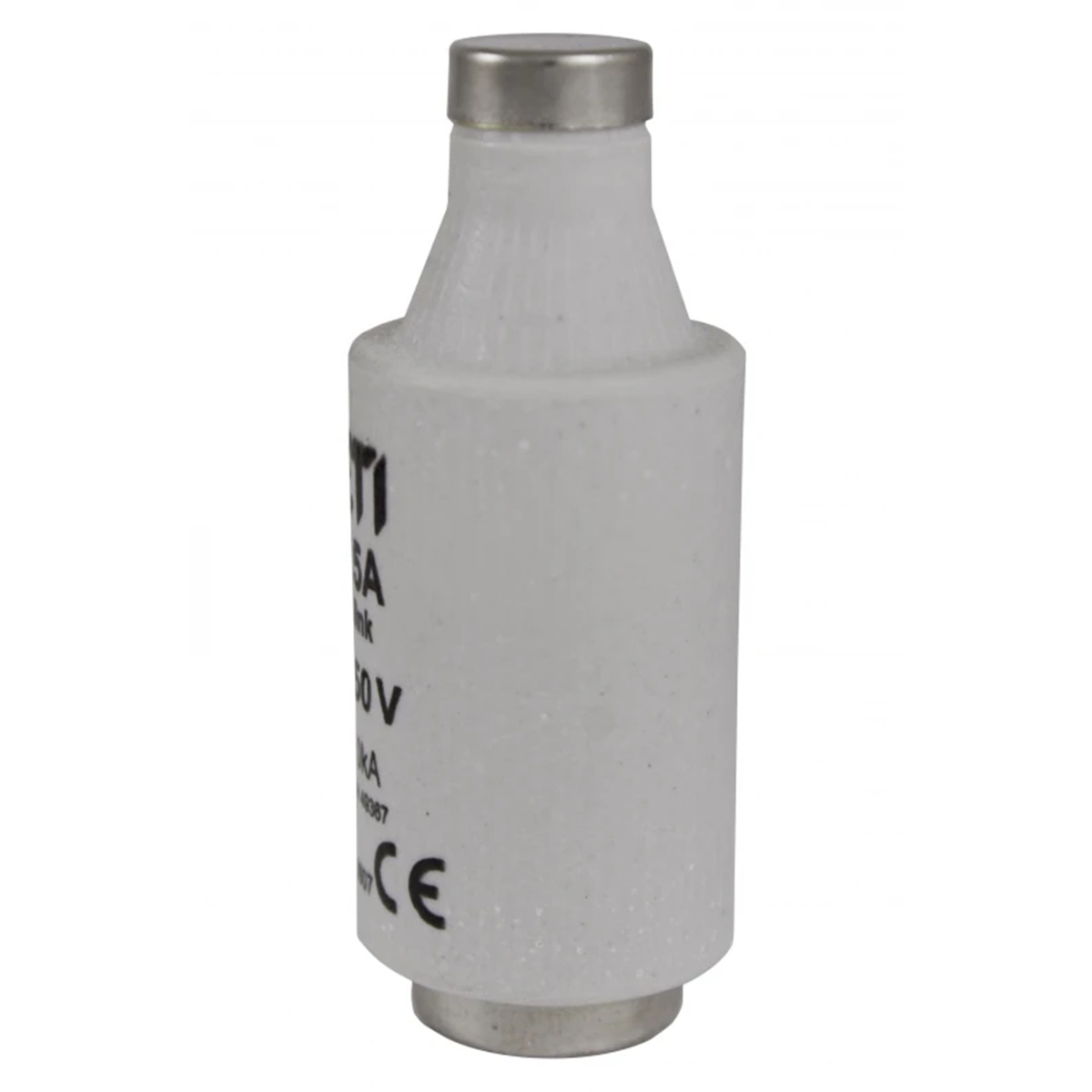

Click on the photo to enlarge

ETI POLAM

Fast fuse-link 750V DIII/gF 25A 750V 002313607

local index:
ABI107ETIP
Catalog No:
002313607
EAN code:
5904722975484
Price:
14,19 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,71 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Application - System D fuse-links are designed to be replaced by unskilled persons (mainly for household and similar applications).  They are used to protect power installations against the effects of short circuits and overloads and to protect against electric shock. System D includes the entire range of five physical sizes DI, DII, DIII, DIV, DV of fuse links, ceramic and plastic sockets, and necessary accessories - heads, calibrated links, etc. D fuse links are made for Voltage [V]: voltages AC 500, 690, 750V and 1200V and DC 250V, 440V, 600V and have a rated breaking capacity of 50kA at AC current and 8kA at DC current. These fuse links have a colored operating indicator visible when the links are mounted in the fuse head and fuse base.

Advantages:
→ high Rated short-circuit capacity [kA]:,
→ slow (gL-gG) and fast (gF) characteristics,
→ wide range of rated currents from 2 to 200 A,
→ new rated currents 32A and 40A,
→ various types of incoming and outgoing clamps in sockets,
→ sockets with a TH rail holder.

Technical data

  • Characteristic
    gF
  • Rated voltage [V]
    750
  • Size
    DIII
  • Compliance with standards
    PN-IEC 269-1, EN 60269, PN-87/E-93100
  • Protection class
    VDE 0110
  • Rated current [A]
    25
  • Type
    DIII/gF 25A 750V

Other technical data

  • Construction size
    DIII
  • Rated voltage
    750 V
  • Utilization category
    Other
  • Rated current
    25 A
  • Colour code
    Yellow
  • Release characteristic
    Fast (F)

Catalog cards, diagrams, certificates
