F202 B-25/0.03 differential circuit breaker | 2P | B | 25A | 30mA | short-time delay | 2CSF202568R1250

Name: F202 B-25/0.03 differential circuit breaker | 2P | B | 25A | 30mA | short-time delay |
Brand: ABB
SKU: ARP020ABBQ
Price: 2487.60 PLN
Availability: BackOrder

local index:

ARP020ABBQ

Catalog number:

2CSF202568R1250

EAN code:

8012542341253

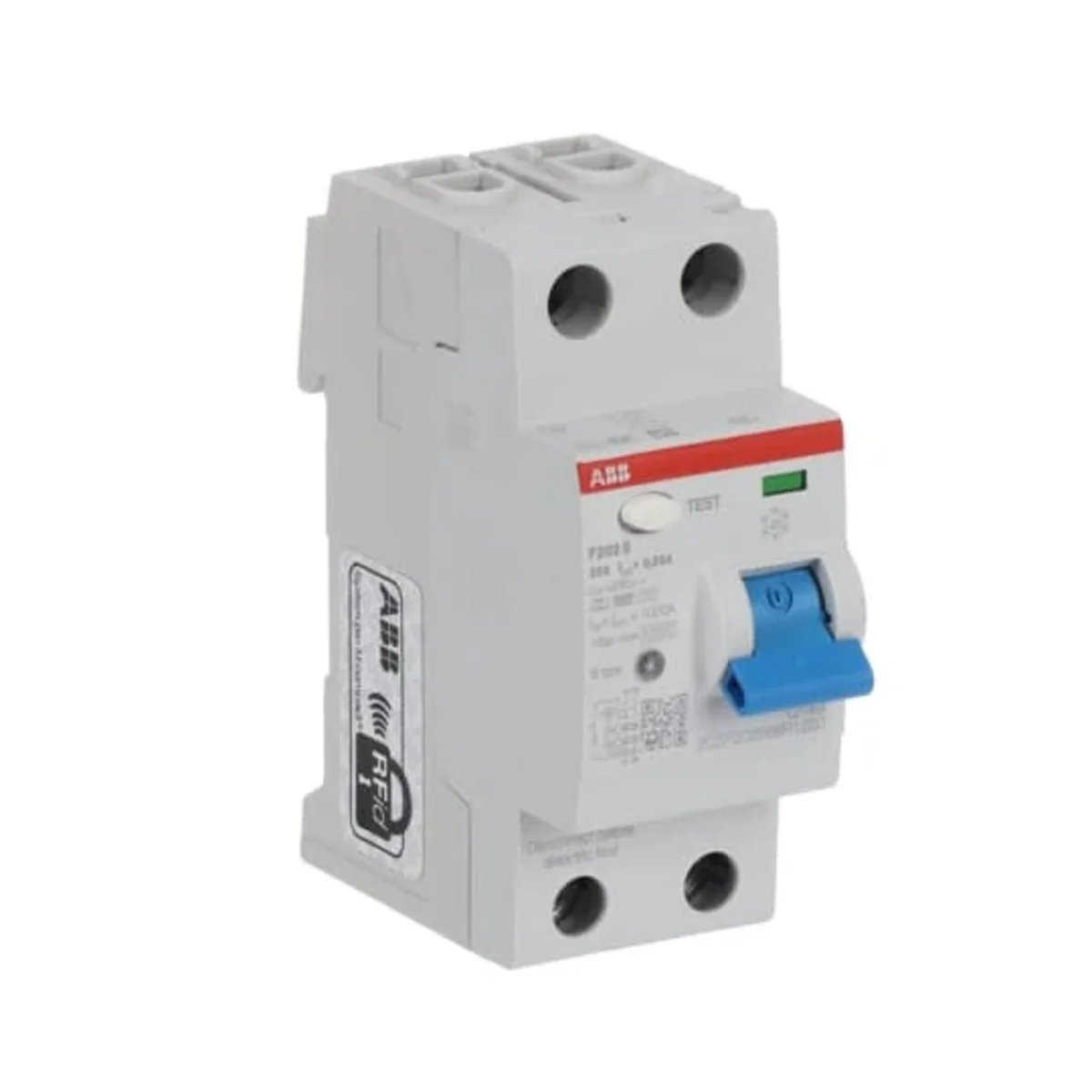

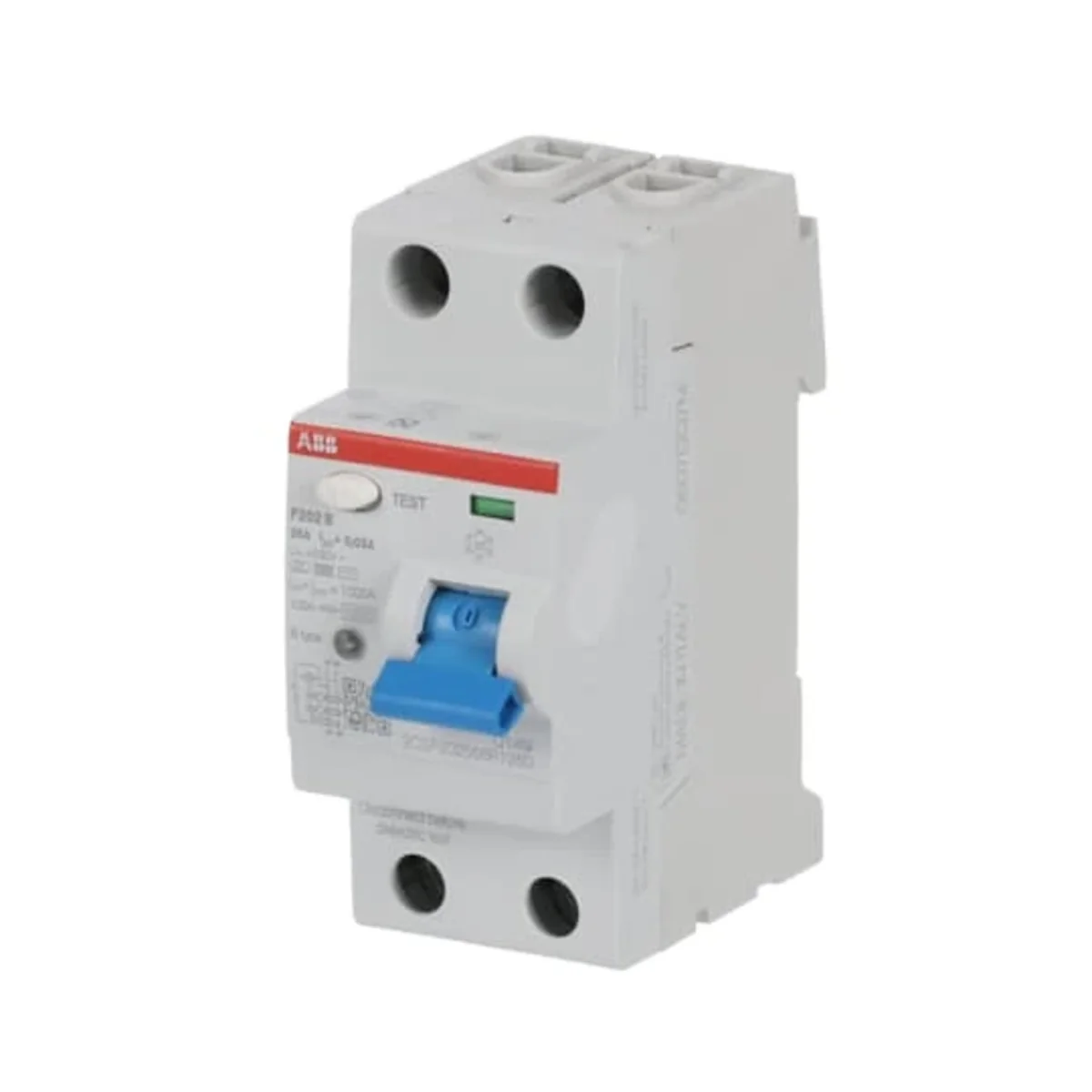

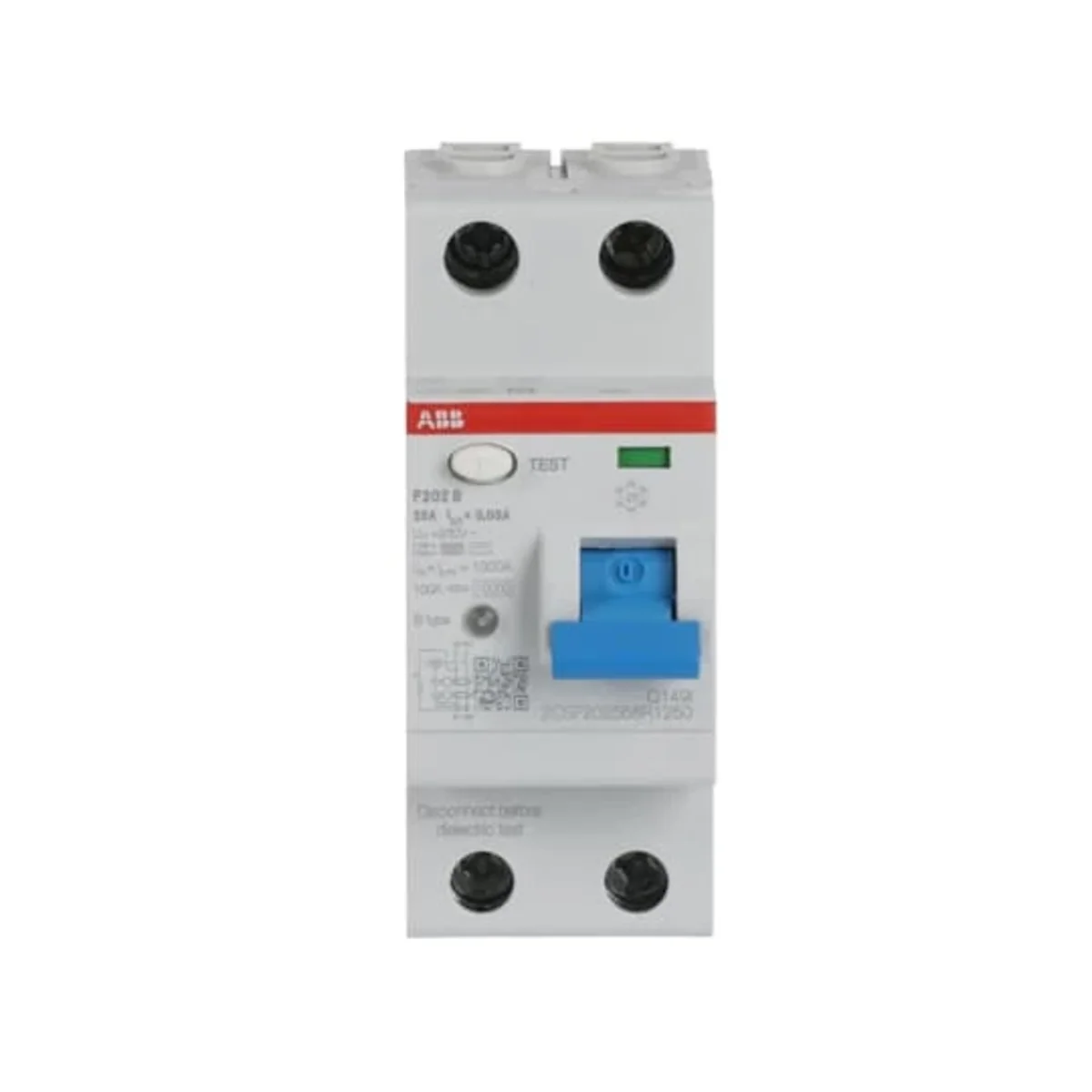

F202 B-25/0.03 differential circuit breaker | 2P | B | 25A | 30mA | short-time delay |

Click on the photo to enlarge

Manufacturer: ABB

Price:

2 487,60 zł

gross / pcs.

(including VAT 23%)

2 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Technical data Manufacturer details Bulk packaging

Technical data

Other technical data

Number of poles

2
Rated current

25 A
Rated impulse withstand voltage Uimp

4 kV
Mounting method

DIN rail
Selective protection

No
Surge current capacity

3 kA
Frequency

Other
Degree of protection (IP)

IP20
Built-in depth

69 mm
Pollution degree

2
Explosion-proof

No

Rated voltage

230 V
Rated insulation voltage Ui

440 V
Power loss

1.6 W
Leakage current type

B
Short-time delayed tripping

No
With interlocking device

No
Additional equipment possible

Yes
Width in number of modular spacings

2
Ambient temperature during operating

-25 ... 70 °C
Connectable conductor cross section solid-core

1 ... 25 mm²

Manufacturer details

Manufacturer

ABB Sp. z o.o.
Address

04-713 Warszawa Żegańska 1 Polska
E-mail

contact.center@pl.abb.com

Bulk packaging

A kind of package	Sztuka	piece	piece
Quantity	1 pcs.	6 pcs.	1560 pcs.
Weight (kg)	0,236	1,410	337,752
Width (m)	0,080	0,246	0,760
Length (m)	0,094	0,080	0,820
Depth (m)	0,041	0,094	1,180
