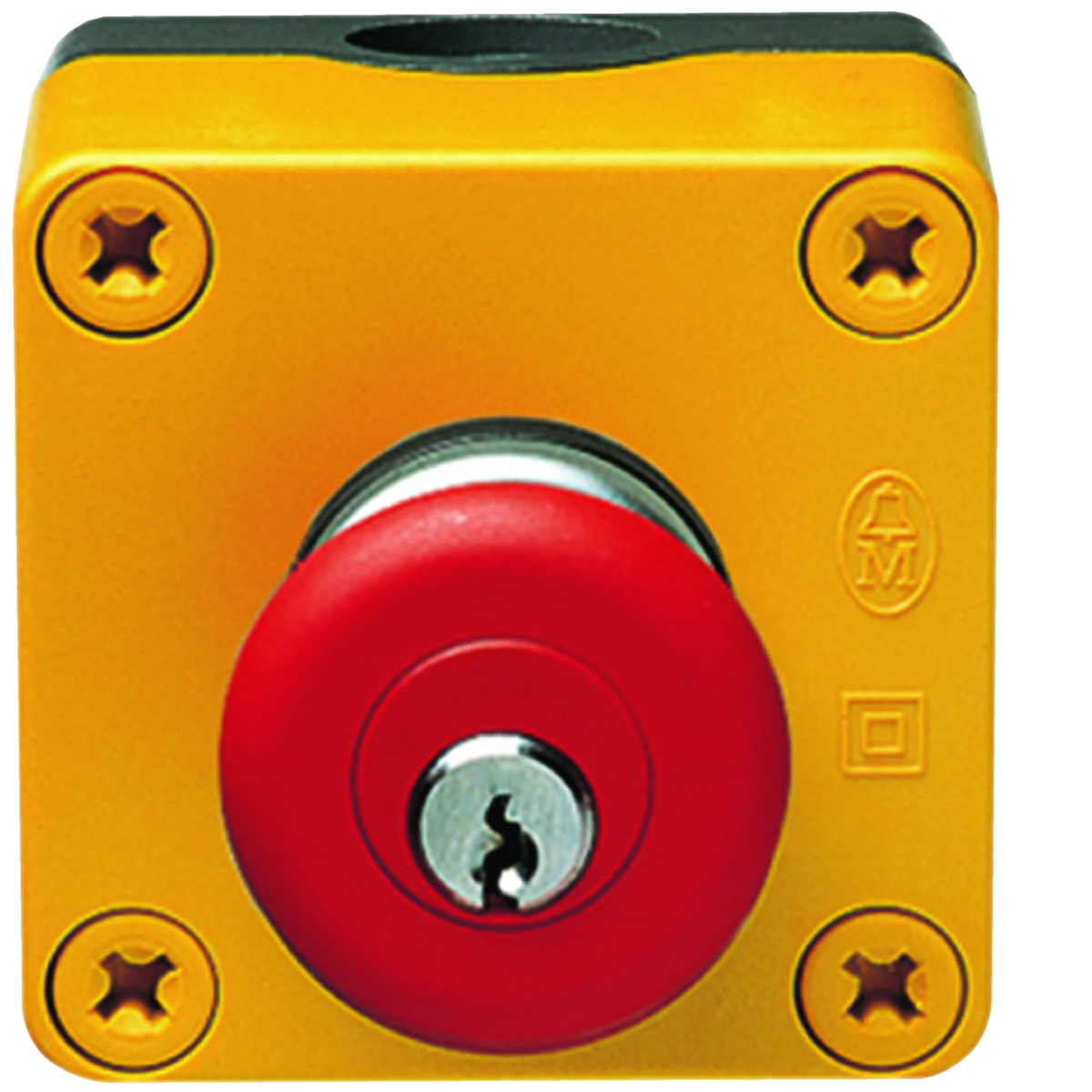

External security button with key MZ531N

local index:
AKS021HAGE
Catalog No:
MZ531N
EAN code:
3250614565182
Manufacturer: HAGER
Material: Plastic
DC operating voltage [V]: 24/220
Rated insulation voltage [V]: 6000
Price:
46,84 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

External security button with key

Technical data

  • Material
    Plastic
  • Rated insulation voltage [V]
    6000
  • Mechanical durability (number of cycles)
    10000
  • Rated switching voltage [V]
    230/500
  • storage temperature [°C]
    from -25 to 80
  • Conductor cross-section (wire) [mm²]
    2.5
  • DC operating voltage [V]
    24/220
  • Level of security
    IP65
  • Operating temperature range [°C]
    from -25 to 55
  • Number of NO contacts
    1
  • Wire cross-section (cord) [mm²]
    2.5
  • PKWIU
    22.22.19.0

Other technical data

  • Number of command positions
    1
  • Number of indicator lights
    0
  • Number of selector switches
    0
  • Suitable for emergency stop
    Yes
  • Rated control supply voltage AC 60 Hz
    230 ... 500 V
  • Colour housing cover
    Yellow
  • Number of contacts as normally open contact
    1
  • Number of contacts as change-over contact
    0
  • Degree of protection (NEMA)
    Other
  • Number of push buttons
    1
  • Number of key switches
    1
  • Number of mushroom-shaped push-buttons
    0
  • Rated control supply voltage AC 50 Hz
    230 ... 500 V
  • Rated control supply voltage DC
    24 ... 220 V
  • Housing material
    Plastic
  • Number of contacts as normally closed contact
    1
  • Degree of protection (IP)
    IP65

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 30 pcs. 720 pcs.
Weight (kg) 0,220 0,280 7,841 211,184
Width (m) 0,080 0,115 0,321 0,800
Length (m) 0,072 0,077 0,244 1,126
Depth (m) 0,104 0,086 0,368 1,200
