ETIMAT10 2P 6kA B 25A DC circuit breaker 002128718

local index:
ABB013ETIP
Catalog No:
002128718
EAN code:
3838895307532
Manufacturer: ETI POLAM
Rated current [A]: 25
Price:
51,30 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

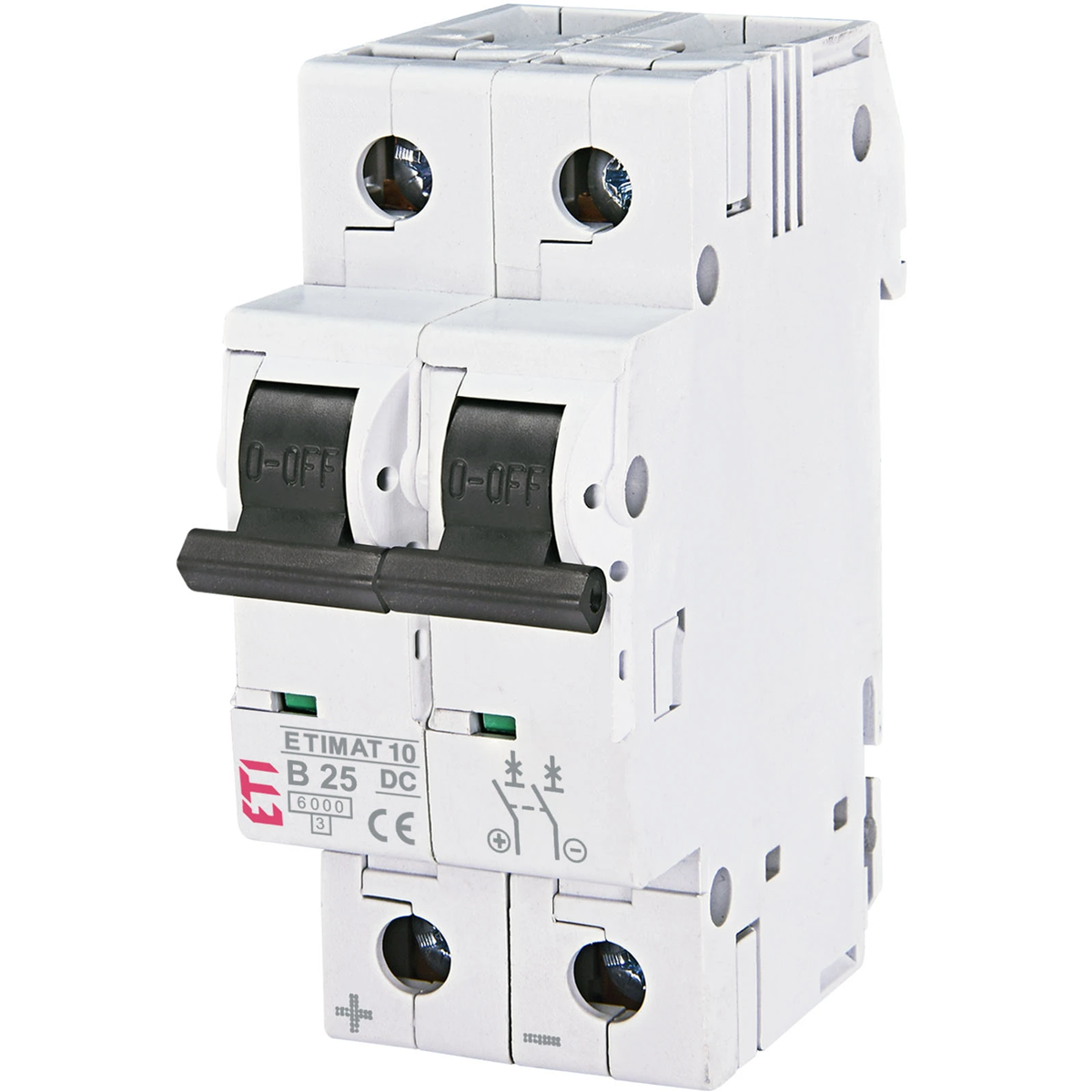

ETIMAT10 2P 6kA B 25A DC circuit breaker

Technical data

  • Rated current [A]
    25
  • PKWIU
    27.12.22.0

Other technical data

  • Built-in depth
    68 mm
  • Number of poles (total)
    2
  • Rated current
    25 A
  • Voltage type
    DC
  • Current limiting class
    3
  • Width in number of modular spacings
    2
  • Ambient temperature during operating
    -25 ... 55 °C
  • Release characteristic
    B
  • Number of protected poles
    2
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    6 kA
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    6 kA
  • Additional equipment possible
    Yes
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Pudełko Pudełko
Quantity 1 pcs. 54 pcs.
Weight (kg) 0,260 -
Volume (m3) 0,000 -
Width (m) 0,038 -
Length (m) 0,078 -
Depth (m) 0,092 -
