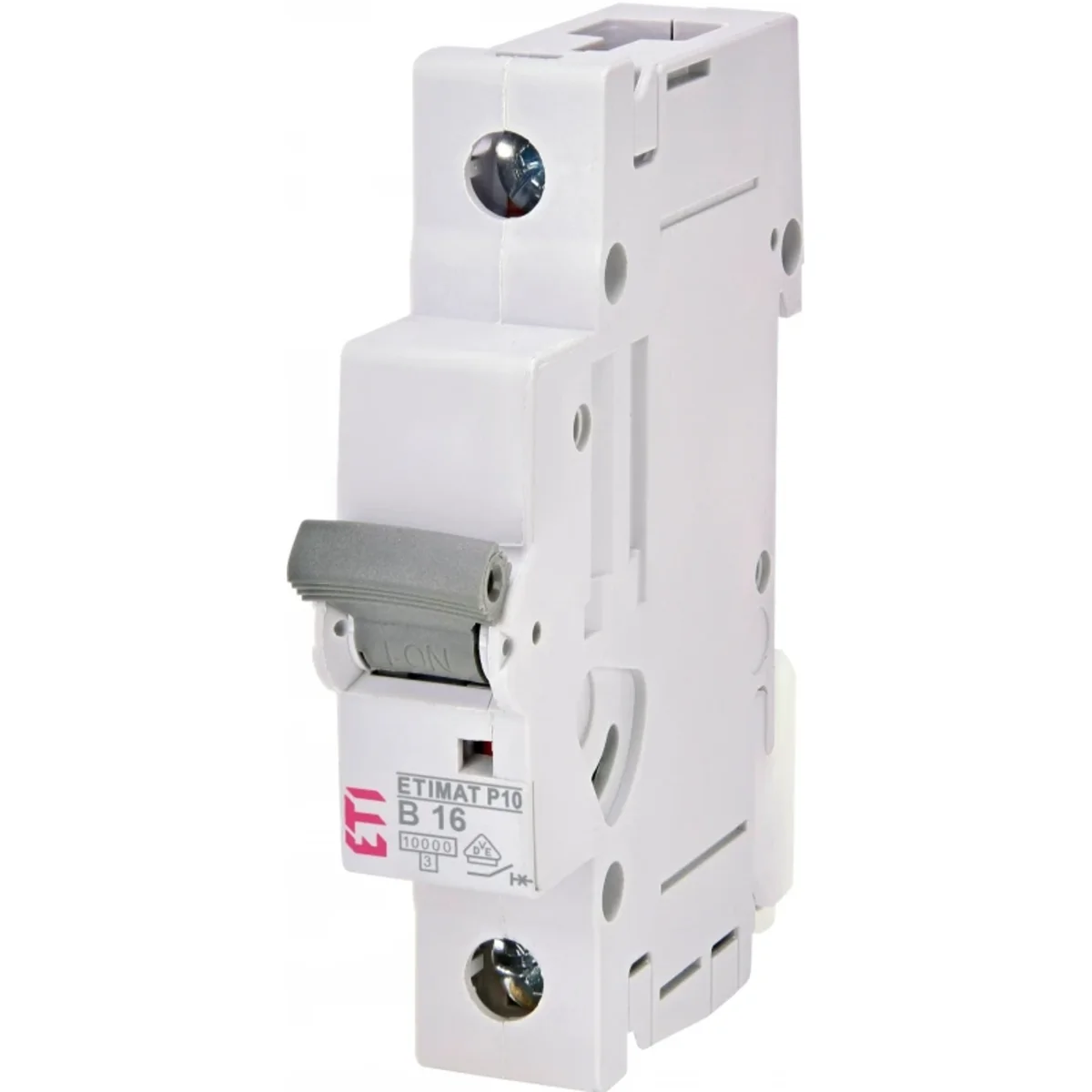

ETIMAT P10 1p B16 Circuit breaker 271600107

Name: ETIMAT P10 1p B16 Circuit breaker
Brand: ETI POLAM
SKU: ABB064ETIP
Price: 21.59 PLN
Availability: BackOrder

Índice local:

ABB064ETIP

Número de catálogo:

271600107

Código EAN:

3838895651635

Haga clic en la foto para ampliar

Fabricante: ETI POLAM

Precio:

21,59 zł

gross / uds.

(IVA incluido 23%)

2 semanas

Por encargo

Cantidad uds.

(múltiple:

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Datos técnicos Detalles del fabricante Archivos para descargar

Datos técnicos

Built-in depth

69.5 mm
Number of poles (total)

1
Rated current

16 A
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15 kA
Current limiting class

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Release characteristic

B
Number of protected poles

1
Rated insulation voltage Ui

500 V
Voltage type

Other
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15 kA
Frequency

50 ... 60 Hz
Over voltage category

3
Width in number of modular spacings

1
Ambient temperature during operating

-25 ... 55 °C
Connectable conductor cross section solid-core

1 ... 25 mm²
