ETIMAT 10 4p C125 Circuit breaker 002137733

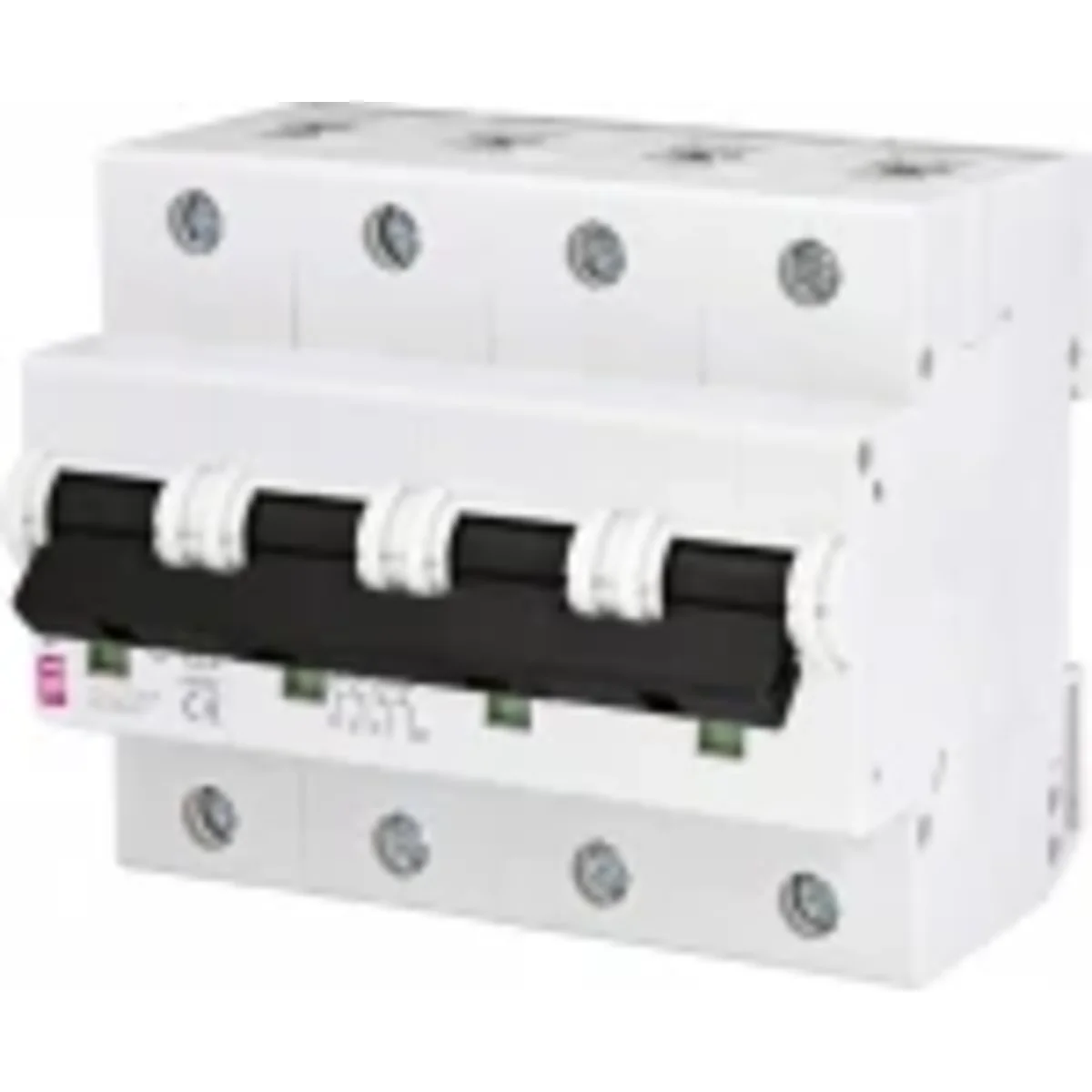

Name: ETIMAT 10 4p C125 Circuit breaker
Brand: ETI POLAM
SKU: ABC051ETIP
Price: 1080.71 PLN
Availability: BackOrder

Lokaler Index:

ABC051ETIP

Katalognummer:

002137733

EAN-Code:

3838895811497

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: ETI POLAM

Preis:

1 080,71 zł

gross / stk.

(inklusive MwSt 23%)

2 Wochen

Auf Bestellung

Menge stk.

(mehrere:

)

Zur Angebotsanfrage hinzufügen

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Technische Daten Hersteller-Details Dateien zum Herunterladen

Technische Daten

Built-in depth

75 mm
Number of poles (total)

4
Rated current

125 A
Rated impulse withstand voltage Uimp

4 kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15 kA
Frequency

50 ... 60 Hz
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

2.5 ... 50 mm²

Release characteristic

C
Number of protected poles

4
Rated insulation voltage Ui

440 V
Voltage type

Other
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15 kA
Current limiting class

3
Pollution degree

3
Width in number of modular spacings

6
Ambient temperature during operating

-25 ... 55 °C
Connectable conductor cross section solid-core

2.5 ... 50 mm²
